Locating the Controls and Connectors
Connectors and peripheral interfaces on the LifeBook T900 Tablet PC and the optional port replicator
allow you to connect a variety of devices. Specific locations are illustrated in Figures 2 through 6. The
table below provides a short description of each icon on the LifeBook T900 Tablet PC and/or optional port
replicator. Each of the icons is either molded into or printed on the Tablet PC or port replicator chassis.

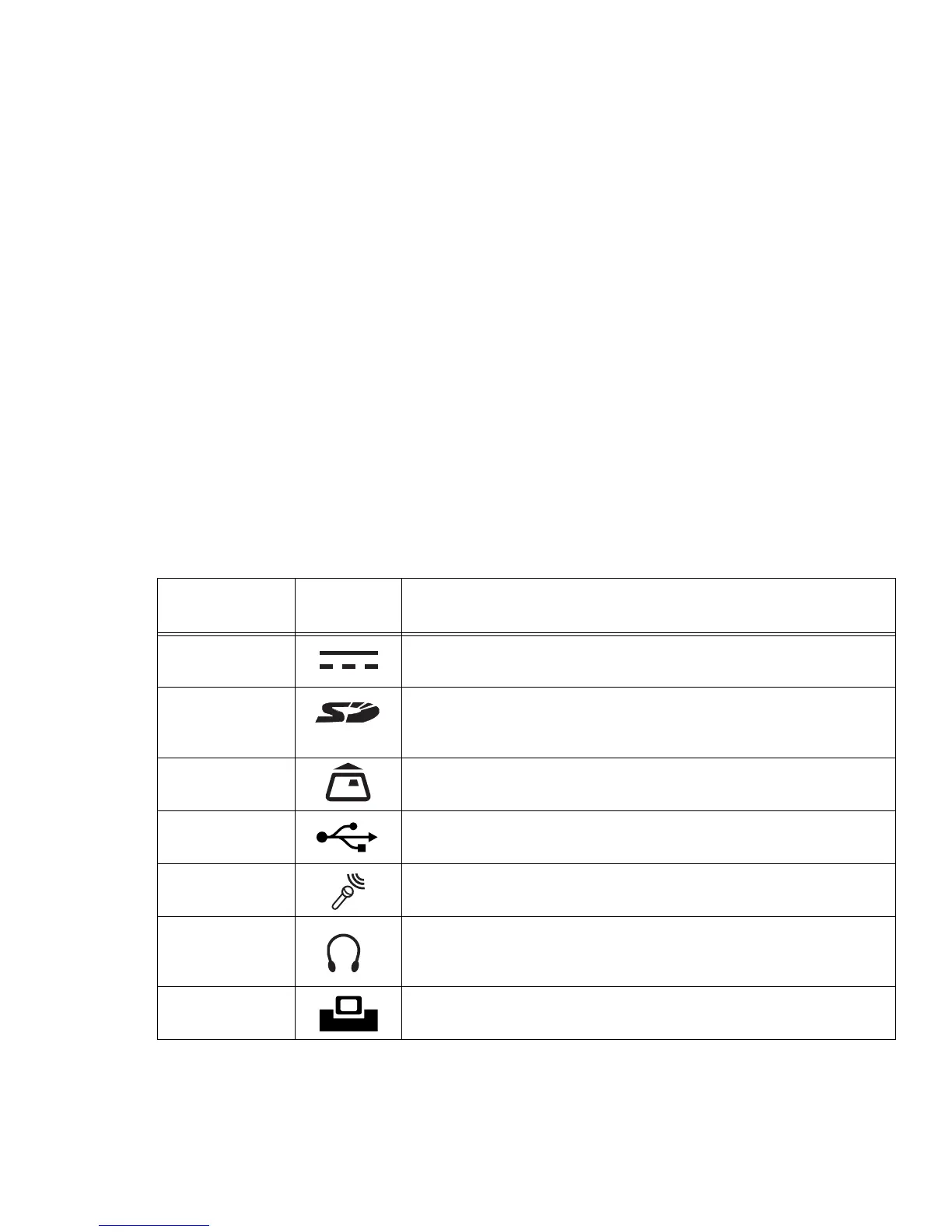

Connection Tablet PC
Icon
Purpose
DC in connector Connect an external power source such as the AC adapter or auto/airline
adapter.
SD Card/
Memory Stick Slot
The Secure Digital (SD) card/Memory Stick slot allows you to insert a flash
memory card for data storage. Flash memory cards allow you to transfer
data to and from a variety of different digital devices.
Smart Card Slot A dedicated Smart Card slot allows you to insert a Smart Card on which
you can store such data as medical information or electronic “cash”.
USB Port Connect Universal Serial Bus 2.0 or 1.1 compliant devices to the
Tablet PC.
Microphone Jack Connect an external microphone. The internal microphone is disabled
when you plug in an external microphone.
Headphone Jack Connect stereo headphones or powered external speakers. The internal
speaker is disabled when you plug in external headphones or powered
speakers.
Dock port Connect the Tablet PC port replicator or other approved docking device.
Refer to documentation accompanying the dock for more information.
