Fujitsu LIFEBOOK E781 - Your Port Replicator (Optional); Ports on the Port Replicator; Connecting the Notebook to the Port Replicator

Working with the notebook
Your Port Replicator (optional)
Your Port Replicato r is a device that enables you to quickly connect y our notebook
to your p eriphera ls, such as a monitor, printer etc.
The features offered by the Port Replicator include standard ports for
monitor, audio, mouse and keyboard.
You need only dock the notebook in order to use your peripheral devices.
Ports on the Port Replic
ator
1
17
16
15
2
3
4
5
6
7
8
9
10
11
12
13
14
1 = Kensington Lock

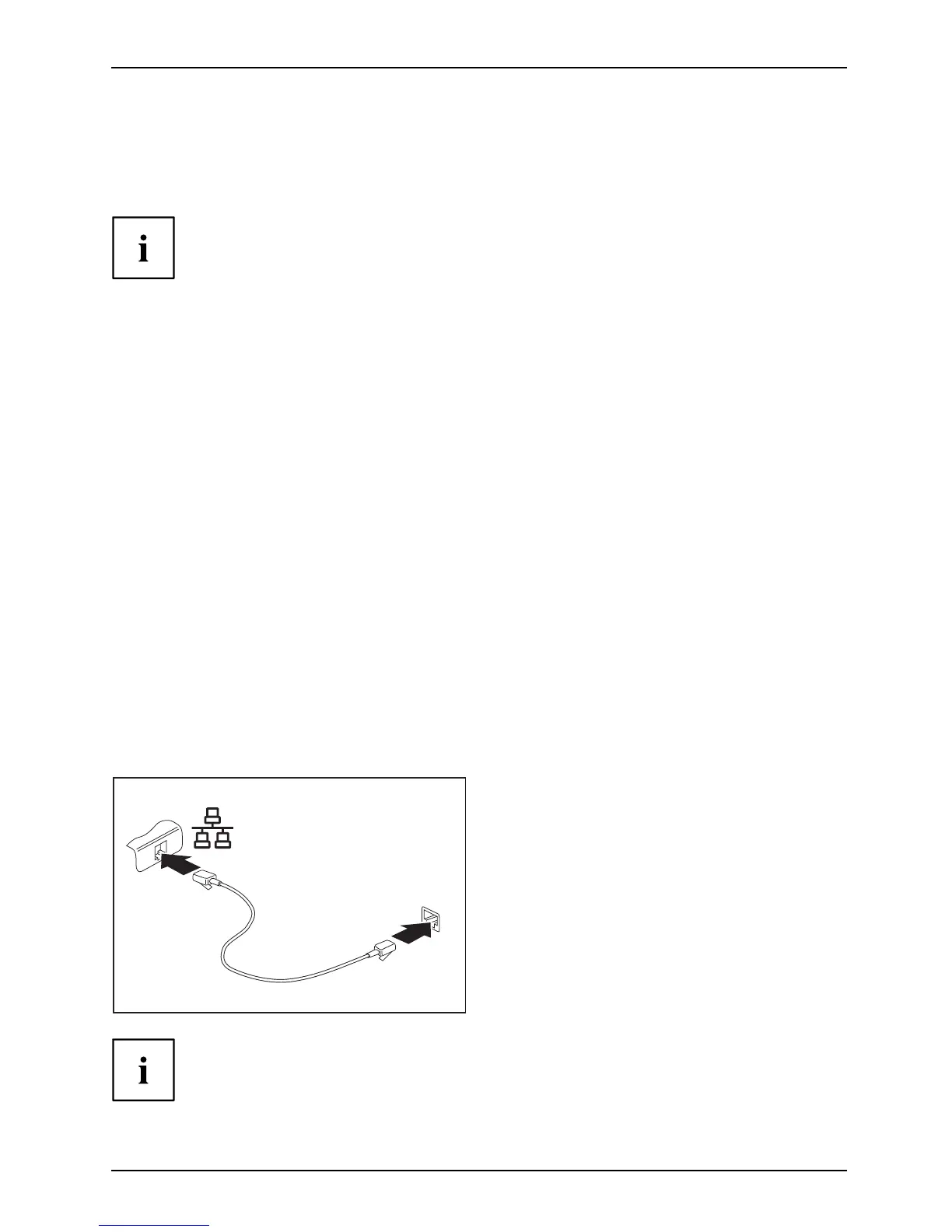

2 = LAN port
3=USBports
4 = Parallel port
5 = Serial port
6 = VGA monitor port
7 = DVI monitor port
8 = DisplayPort
9 = e-SATA port
10 = USB ports
11 = DC input connector (DC IN)
12 = Security Lock d evice
13 = Hea dphones port
14 = Microphone port/Line In
15 = Con nect or on the Port Replicator for
the docking port on the underside
of the noteboo k
16 = ON/OFF switch
17 = Unlocking lever
Connecting the notebook to the Port Replicator
If you connect the notebook to the P ort Replicator during operation, problems can
occur. We recommend that you switch off the notebook beforehand.
