6.1.4 Settings of Oscillation and Communication Speed
In this dialig box, a user can select MCU external clock value in Frequency (main) Field, and enable
or disable clock up in Response Speed Optimization Field.

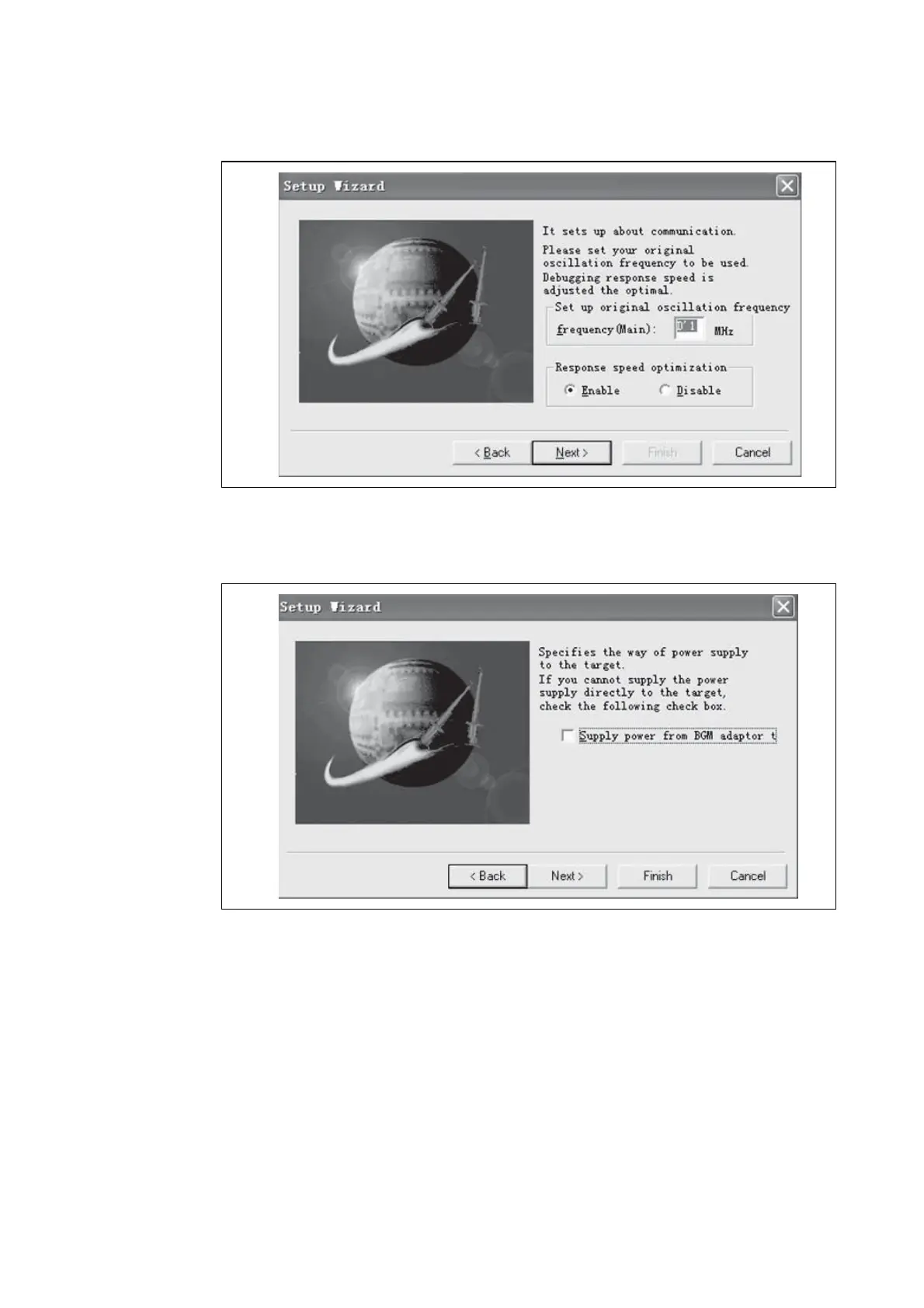

Figure 5 Clock Setting
6.1.5 Power Supply To Target
This item enables BGMA to supply power to the target MCU board.
Figure 6 Power Supply
Note : If the user current is greater than the max current (200mA), the system will show the power error and
stop the power supply.
