Fujitsu PRIMERGY CX2550 M4 Disassembly And Recycling Document

24 Disassembly and Recycling Instructions CX400 M4
Disassembly and recycling
1.2.8 Removing 2.5-inch HDD backplanes
Ê Remove all HDD backplanes
Tools: Phillips PH2 / (+) No. 2 screw driver
Recycling parts
1x to 4x HDD backplanes, 1x holder per backplane, 4x screws per backplane
Metal
Plastic
Printed circuit

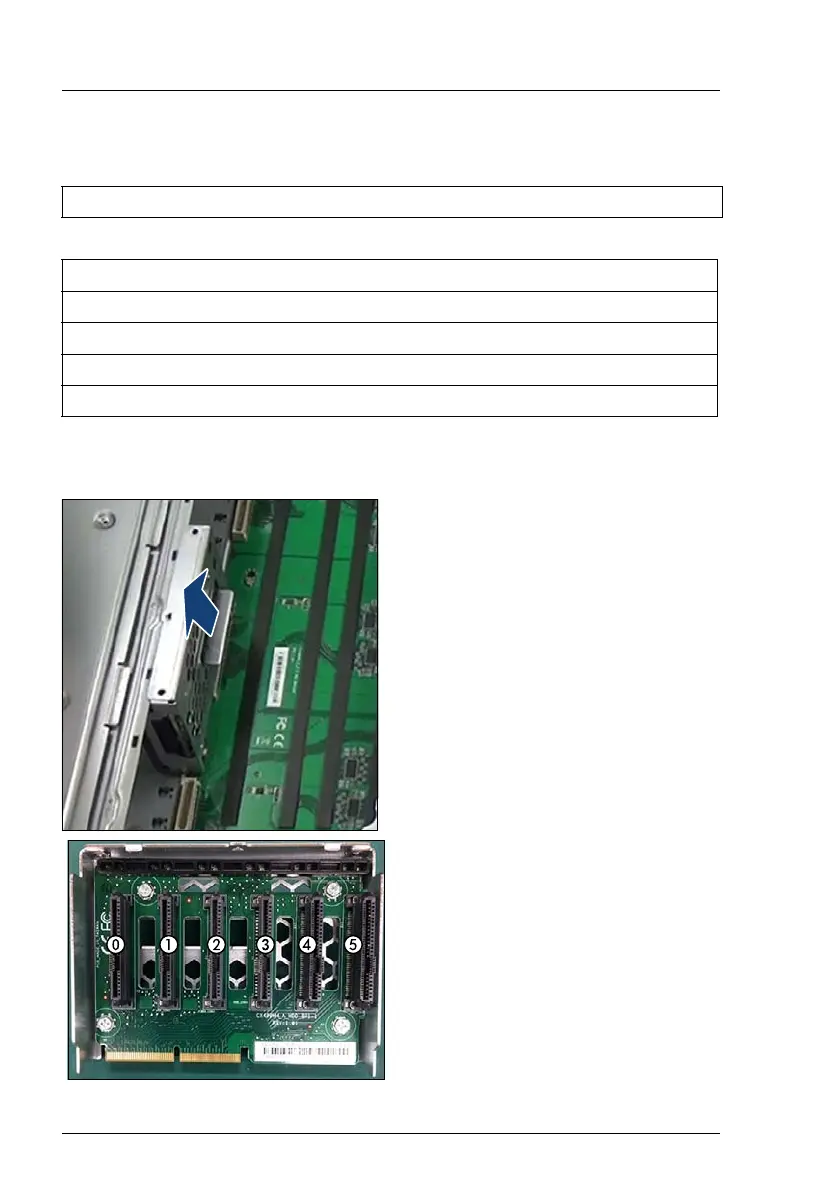

Ê Carefully pull up on the backplane
in a vertical motion and remove it
from its slot.
Ê Remove the four screws.
Ê Remove the HDD backplane from
the holder.
