72 Disassembly and Recycling Instructions CX400 M4
Disassembly and recycling
1.3.12 Removing the TPM and system board
Removing VR cooling blocks and spacers (server node with LC)

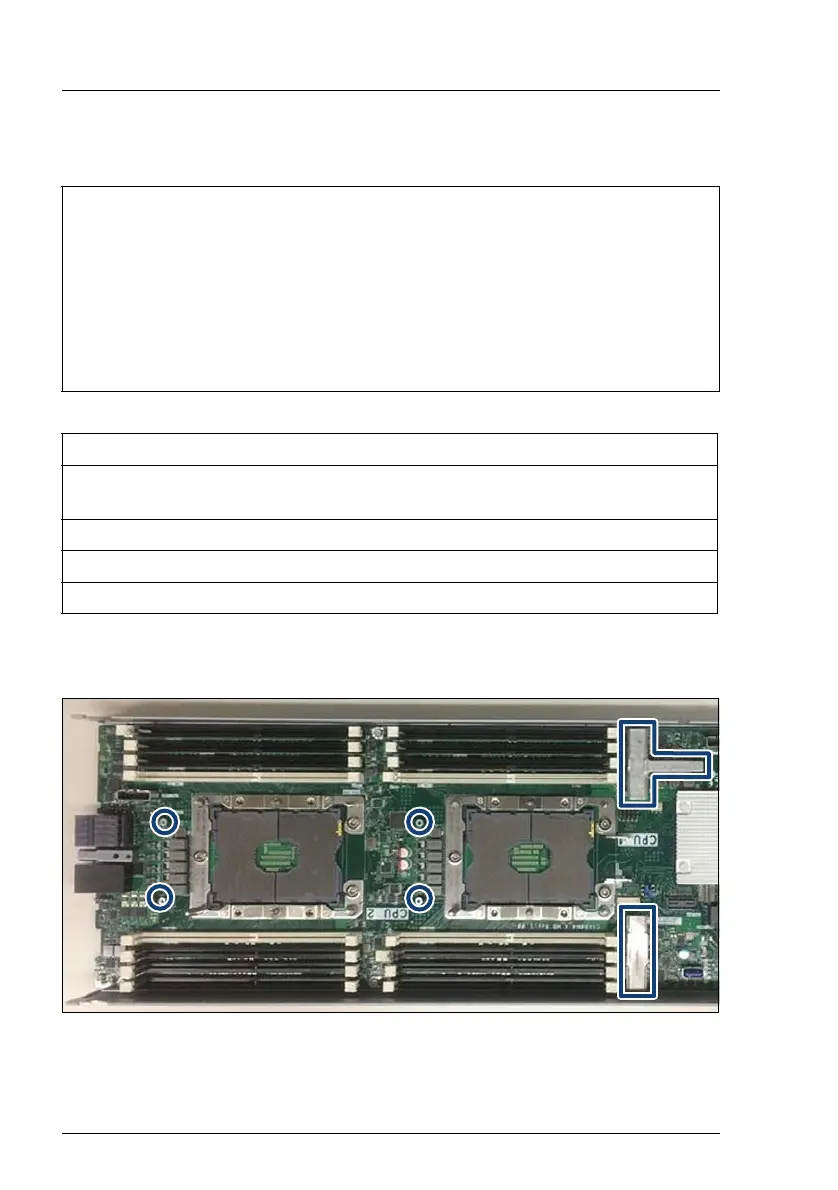

Figure 96: VR cooling blocks and spacers
Before removing the system board you must remove the VR cooling blocks (see
frames) and spacers (see circles).
Tools: Removing the system board:
– Phillips PH2 / (+) No. 2 screw driver
Removing the TPM:
– Bit screw driver
– flat nose pliers
– TPM bit insert
– thin slotted screw driver (2 x 0.4 mm)
Recycling parts
1x system board, 1x TPM (Trusted Platform Module), 1x screw, 1x TPM
spacer, server nodes with LC: VR cooling blocks, spacers, 10x screws
Metal
Plastic
Printed circuit
