CX400 M4 Disassembly and Recycling Instructions 73
Disassembly and recycling
I This procedure is not applied for Japan.

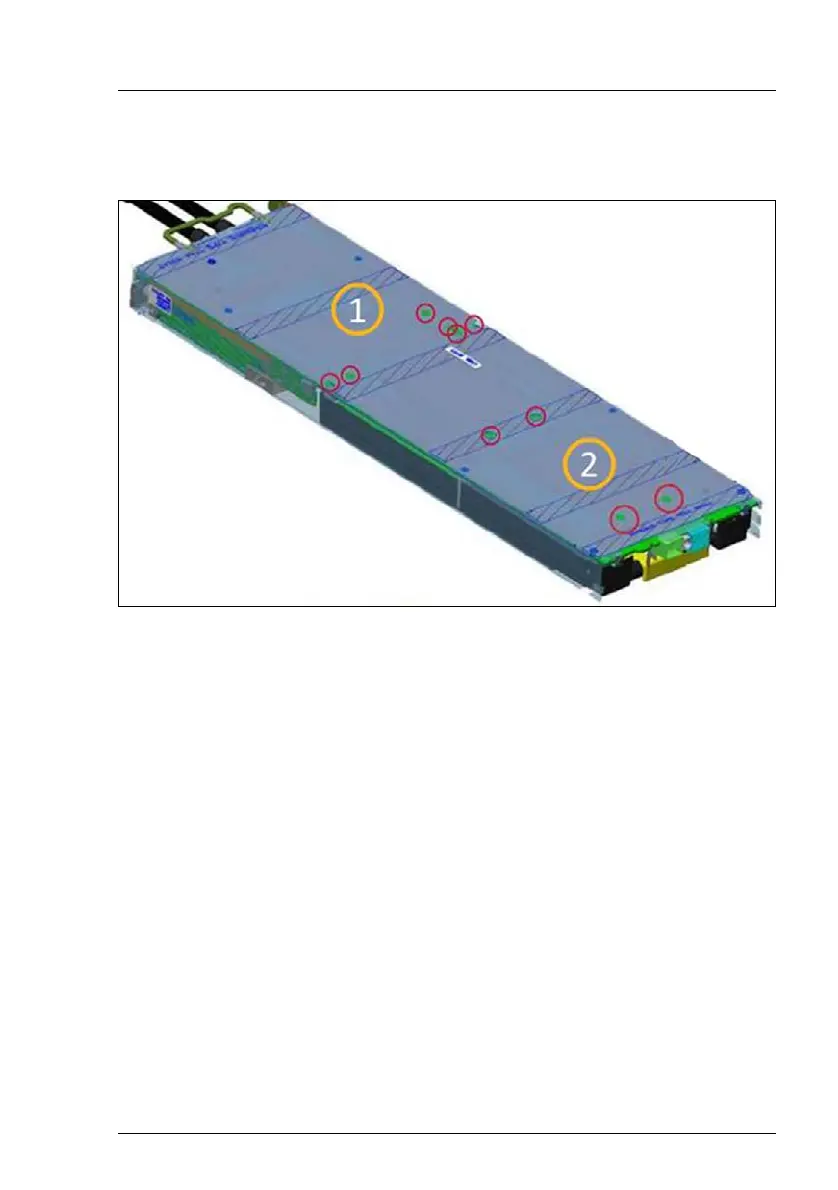

Figure 97: Removing ten screws from the tray underside
Ê Lay the tray on a soft, antistatic surface with its component side facing down.
Ê Remove 10 screws (see red circles).
Use a hexagonal nut screw driver to secure the spacers while removing the
corresponding screws from the bottom of the tray.
