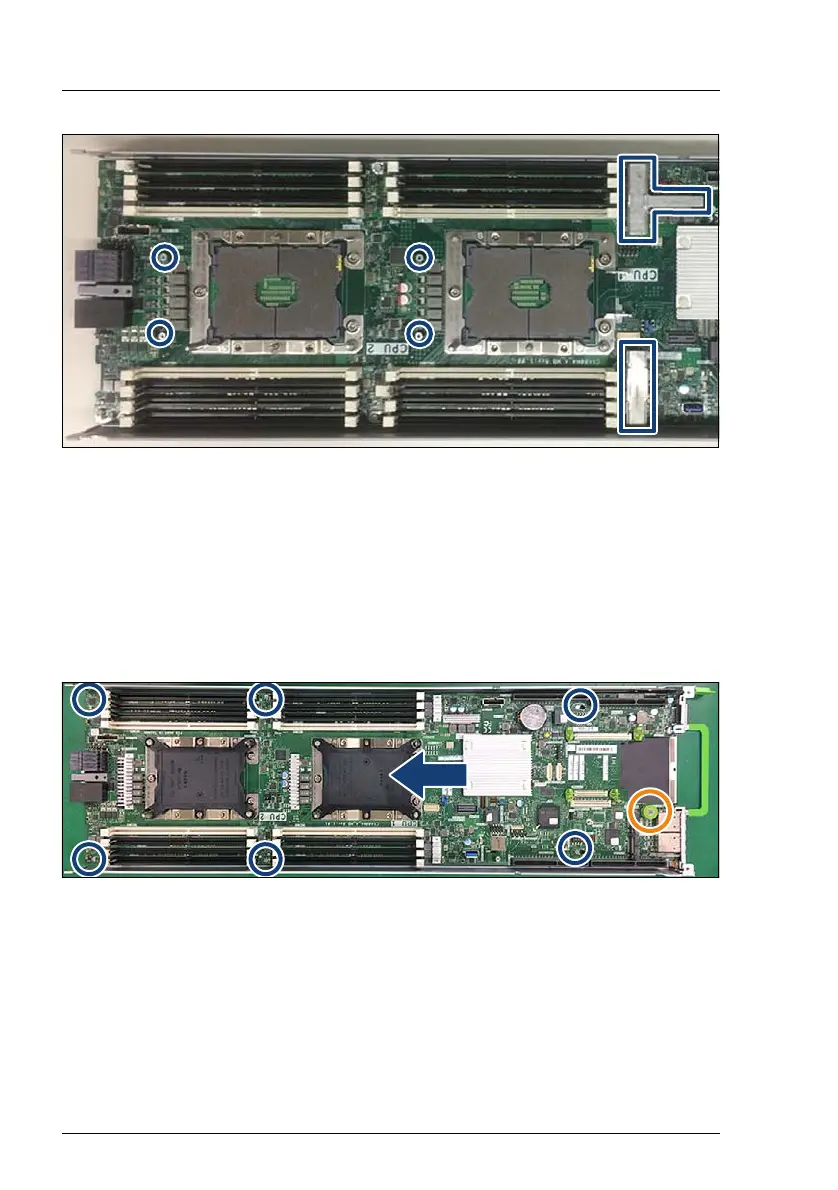

74 Disassembly and Recycling Instructions CX400 M4
Disassembly and recycling
Figure 98: Removing VR cooling blocks and spacers
Ê Turn the tray with its component side facing up.
Ê Remove the four spacers (see circles) and the two VR cooling blocks (see
frames) from the system board.
Removing the system board
Ê Disconnect all remaining cables from the system board.
Figure 99: Removing the system board
Ê Loosen the captive screw (see orange circle).
Ê Carefully shift the system board (B) in the direction of the arrow until the plug
shells disengage from the cut-outs in the I/O panel (see blue circles).
Ê Hold the system board (B) by the memory module ejectors and lift it in a
vertical motion out of the chassis.
