Fujitsu PRIMERGY CX2550 M4 Disassembly And Recycling Document

CX400 M4 Disassembly and Recycling Instructions 25
Disassembly and recycling
1.2.9 Removing the HDD/SSD bridge board

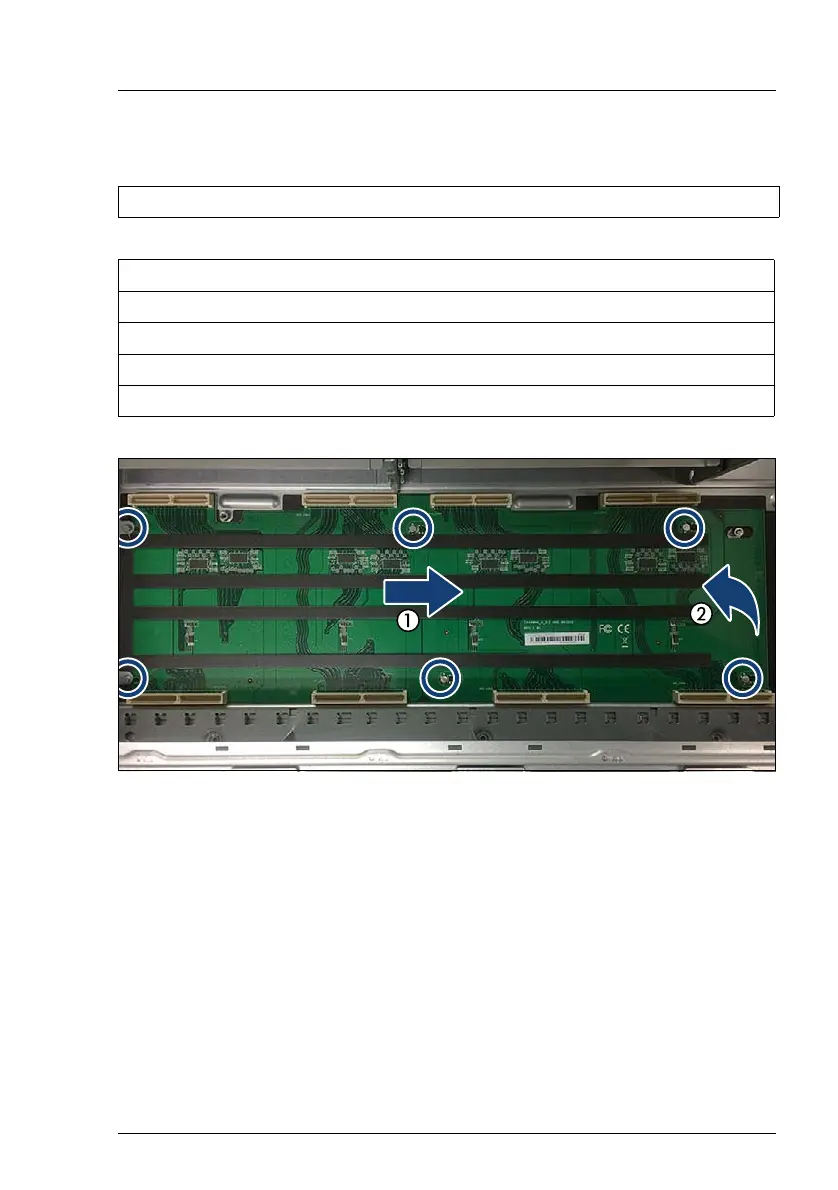

Figure 20: Removing the HDD/SSD bridge board
Ê Carefully shift the HDD/SSD bridge board in the direction of the arrow (1)
until the shoulder screw caps on the chassis will rest in the wide ends of the
keyhole slots on the HDD/SSD bridge board (see circles).
Ê Fold up the HDD/SSD bridge board (2) and remove it.
Tools: tool-less
Recycling parts
1x HDD/SSD bridge board
Metal
Plastic
Printed circuit
