CX400 M4 Disassembly and Recycling Instructions 27
Disassembly and recycling
Removing HDD/SSD front bezels (with screw)

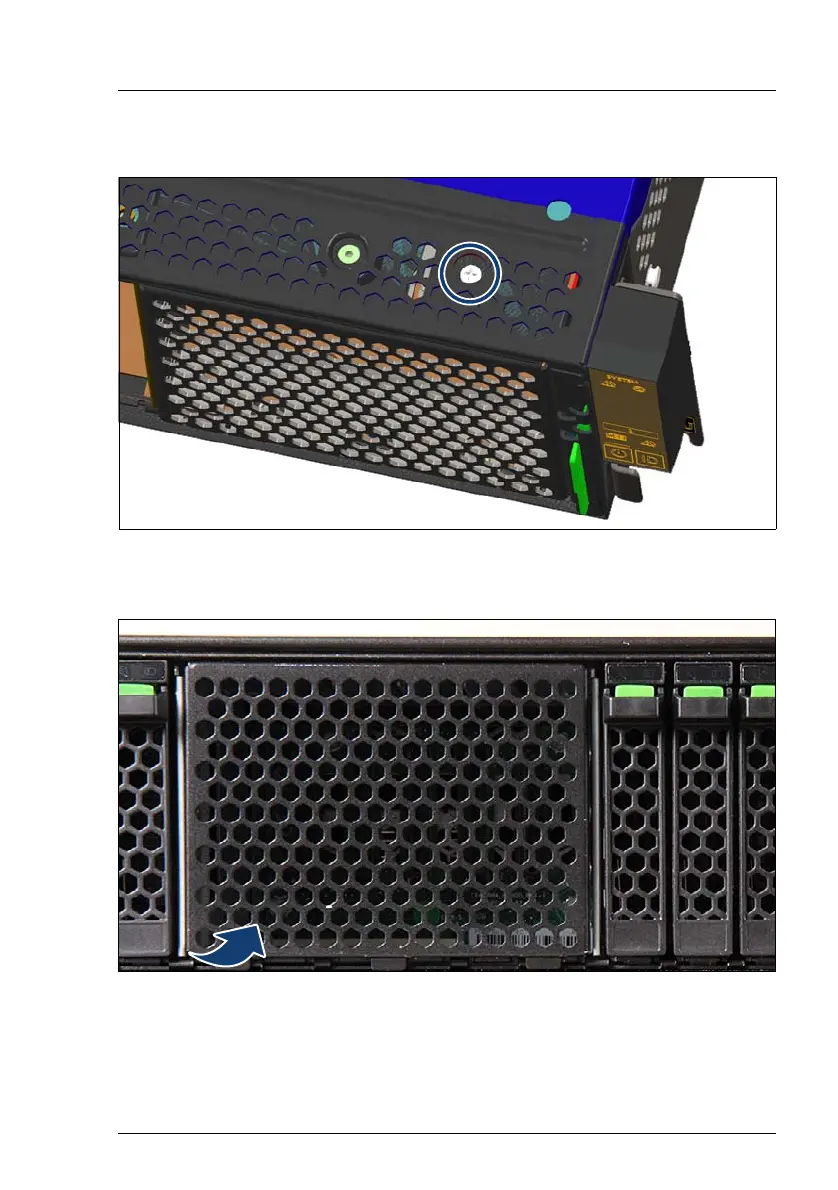

Figure 22: Removing the front bezel fixing screw
Ê Remove the screw from the top of the chassis (see circle).
Figure 23: Removing the HDD/SSD x6 front bezel (screw type)
Ê Grasp behind the handle edge at a lower corner of the bezel and remove it
from the cage.
