Fujitsu PRIMERGY CX2550 M4

50 Disassembly and Recycling Instructions CX400 M4
Disassembly and recycling
Removing riser modules

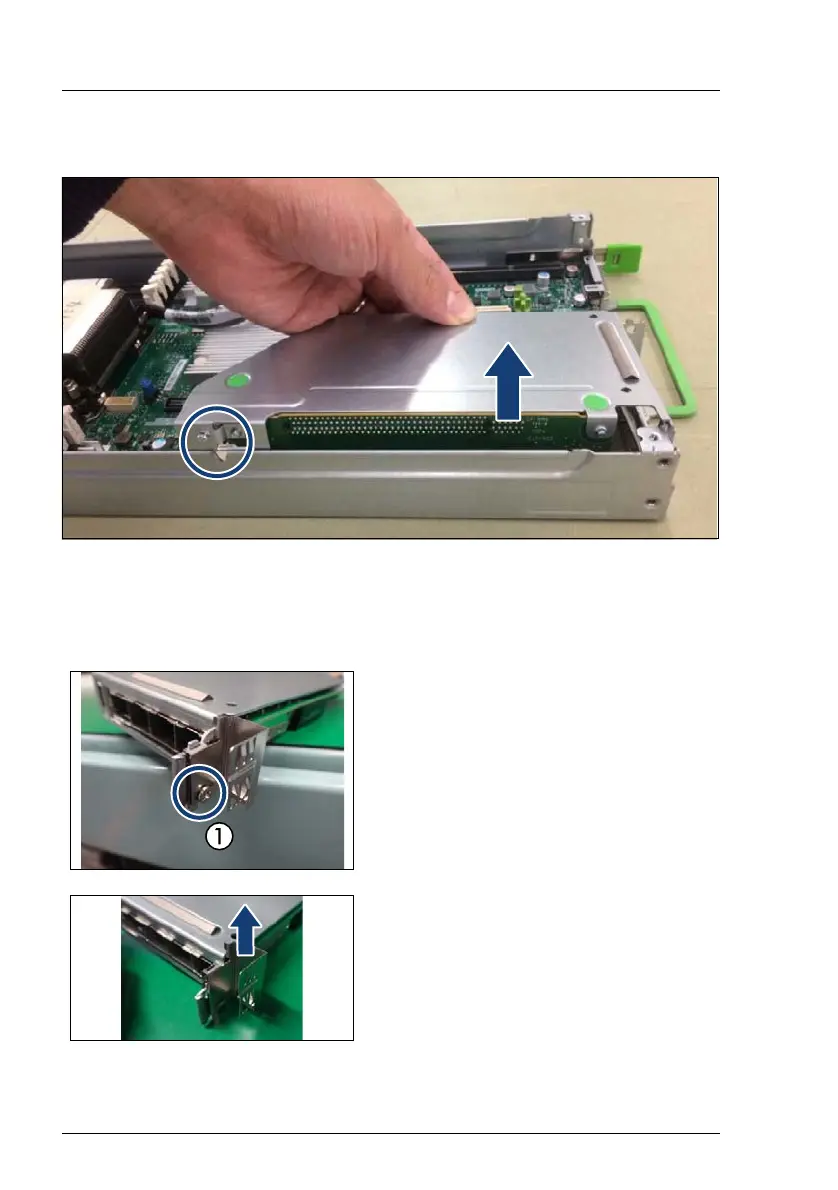

Figure 59: Removing the riser module
Ê Lift up the riser module straight on and remove the riser from the slot.
I Remove the riser module on the right side accordingly.
Ê Loosen the EMI gasket screw
(see circle).
Ê Remove the EMI gasket.
