Fujitsu PRIMERGY RX1330 M1 User Manual

RX1330 M1 Operating Manual 53
Hardware installation
The standard connectors on the rear are marked with symbols, and some are
color-coded:

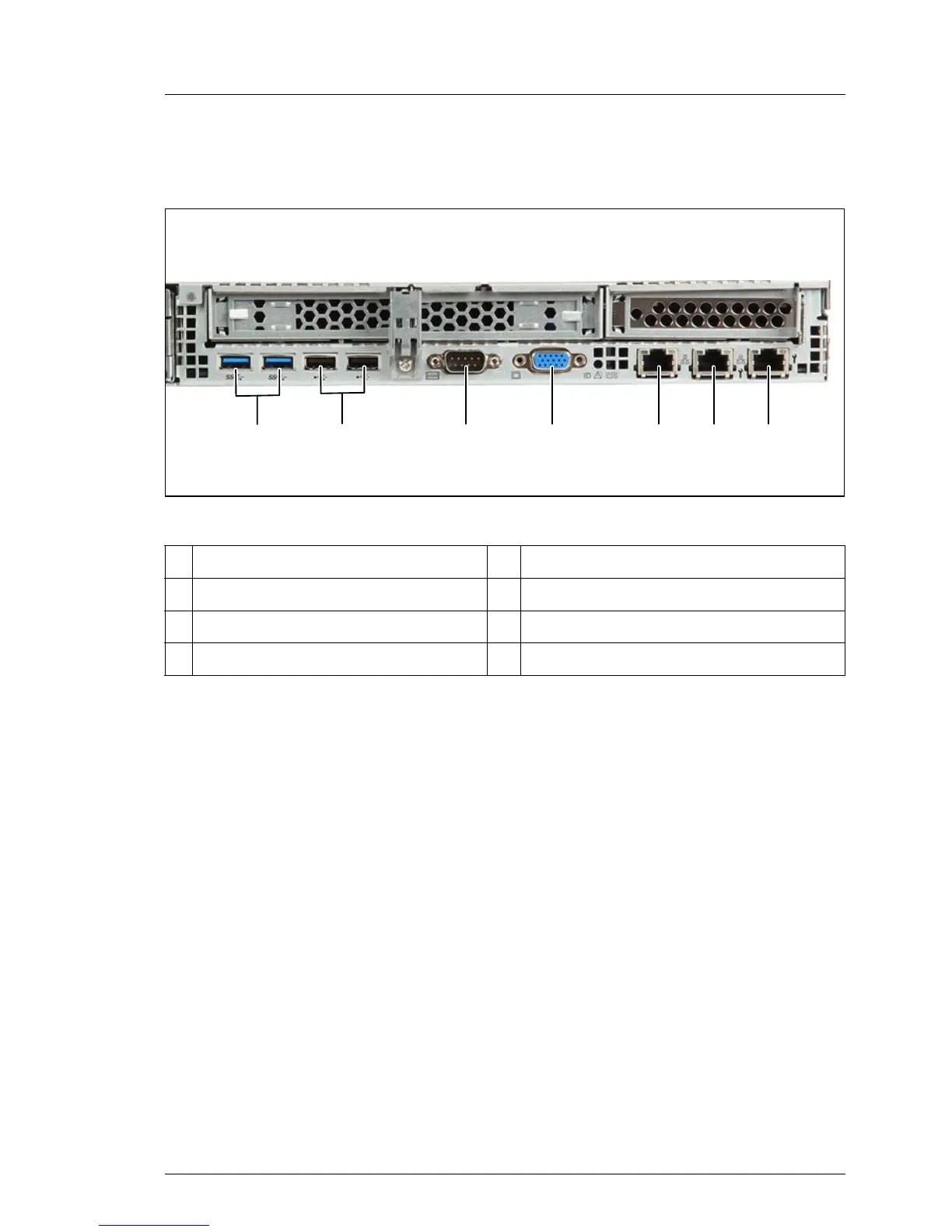

Figure 4: Connectors on the rear
I Shared LAN connector is displayed in the BIOS Setup Utility and on the
MAC address label as LAN2. Standard LAN connector is displayed in the
BIOS Setup Utility and on the MAC address label as LAN1.
Ê Connect the data cables to the server and peripherals.
1 2 x USB 3.0 connectors 5 Standard LAN connector (LAN1)
2 2 x USB 2.0 connectors 6 Shared LAN connector (LAN2)
3 Serial connector COM1 * 7 Management LAN connector
4 Video connector (blue)
* The serial interface COM1 can be used as the standard interface or for
communication with iRMC.
햲
햳 햴 햷햶햵 햸

Fujitsu PRIMERGY RX1330 M1 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	1U Rack
Processor	Intel Core i3 product family Intel Pentium product family
CPU Family	Intel Xeon
Memory Type	DDR3 UDIMM
Storage	Up to 4 x 3.5" or 2.5" drives
Drive Bays	4
RAID	0, 1, 5, 10
RAID Controller	Optional
Network	2 x Gigabit Ethernet
Operating System Support	Windows Server, Red Hat Linux, SUSE Linux
