Fujitsu PRIMERGY RX200 S7 - Starting Up and Operating the Server; Server Controls and Indicators

RX200 S7 Operating Manual 59
6 Starting up and operation
V CAUTION!
Please note the safety instructions in chapter "Important information" on
page 35.
6.1 Controls and indicators
6.1.1 Front of server

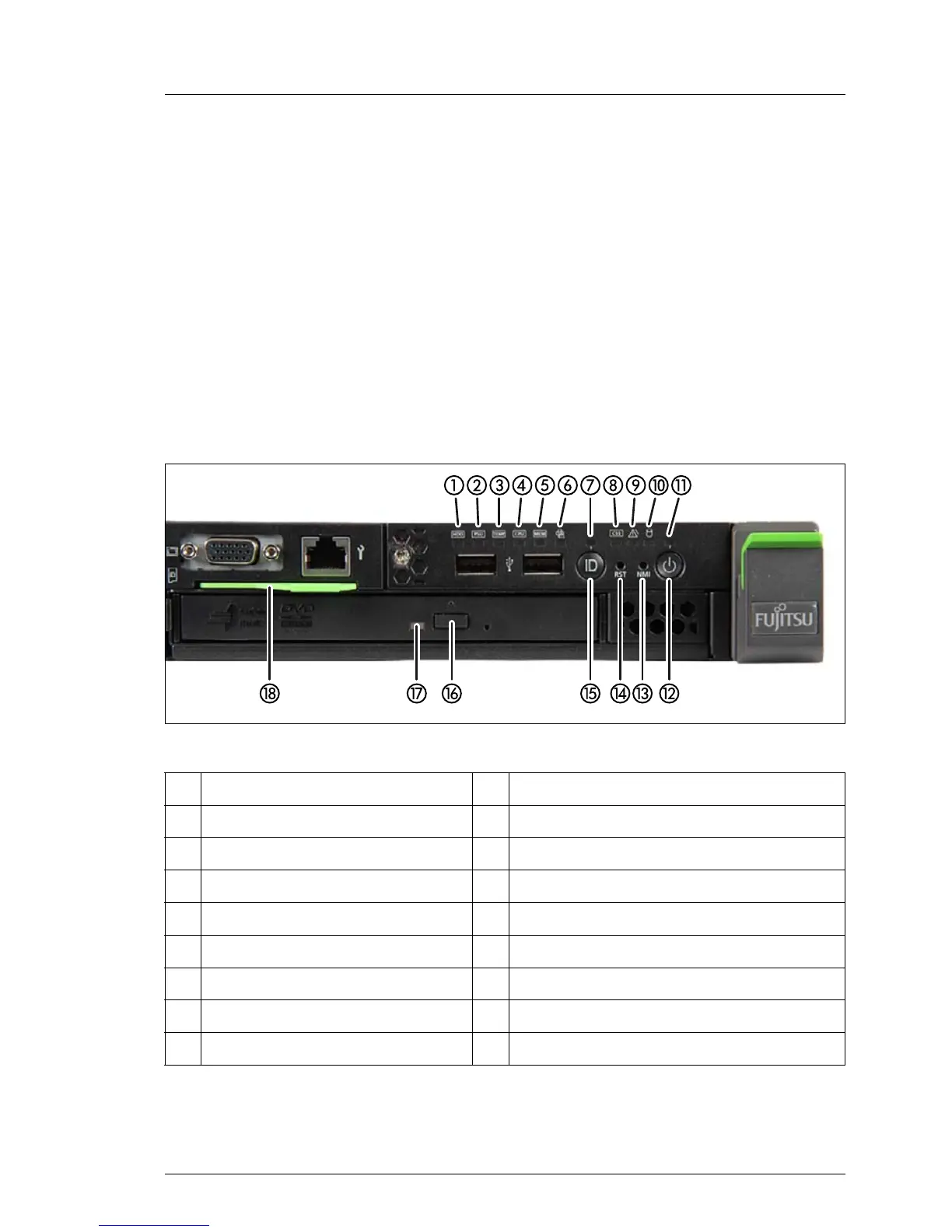

Figure 5: Controls and indicators on the front
1 HDD/SSD error indicator 10 HDD/SSD activity indicator
2 PSU error indicator 11 Power-on indicator
3 Temperature error indicator 12 On/Off button
4 CPU error indicator 13 NMI button
5 Memory error indicator 14 Reset button
6 Fan error indicator 15 ID button
7 ID indicator 16 Open/close optical drive
8 CSS indicator 17 Optical drive activity indicator
9 Global Error indicator 18 ID card
