The standard connectors on the rear are marked with symbols, and one is color-
coded:

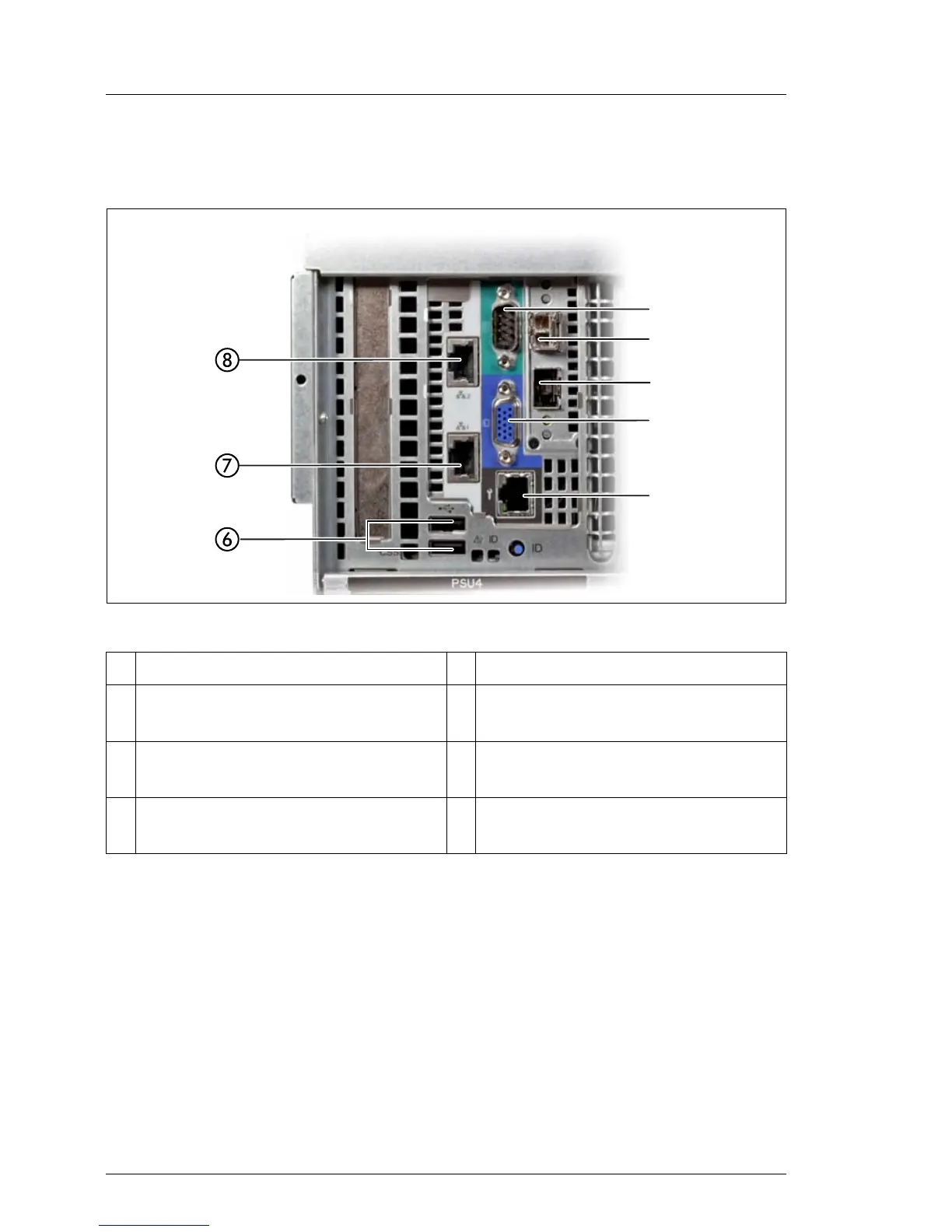

Figure 4: Connectors on the rear
Ê Connect the data cables to the server and peripherals.
I Connect keyboard and mouse via USB. There are no separate PS/2
connectors for them.
Connecting the monitor
Ê Plug the data cable for the monitor into the video connector on the server.
Alternatively, the video connector at the front or the rear of the server can be
used.
1 Serial connector COM1 5 Management LAN connector
2 Fibre glass connector (optional,
Shared LAN 1)
6 2x USB connector
3 Fibre glass connector (optional,
Shared LAN 2)
7 System LAN connector (Shared
LAN 1)
4 Video connector (blue) 8 System LAN connector (Shared
LAN 2)
