6.1.2.2 Indicators on the connector panel (LAN indicators)

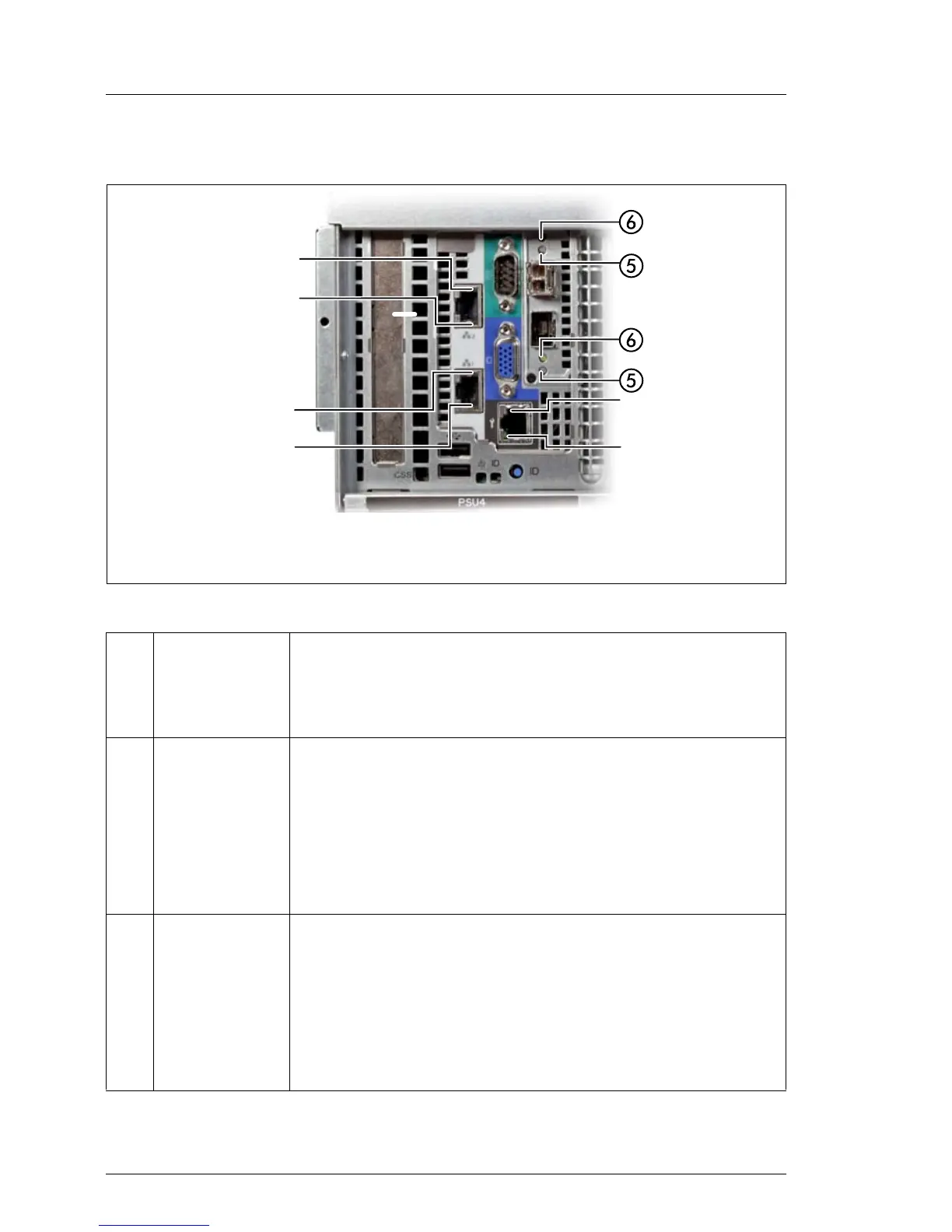

Figure 11: LAN indicators
1LAN
link/transfer
(system LAN)
Steady green signal when a LAN connection exists.
Remains dark when no LAN connection exists.
Flashes green when LAN transfer takes place.
2 LAN speed
(system LAN)
Steady green signal in the event of a LAN transfer rate
of 10 Gbit/s.
Steady yellow signal in the event of a LAN transfer rate
of 1 Gbit/s.
Remains dark in the event of a LAN transfer rate of
100 Mbit/s.
3 LAN speed
(management
LAN)
Steady yellow signal in the event of a LAN transfer rate
of 1 Gbit/s.
Steady green signal in the event of a LAN transfer rate
of 100 Mbit/s.
Remains dark in the event of a LAN transfer rate of
10 Mbit/s.
