58 Operating Manual RX4770 M2
Hardware installation

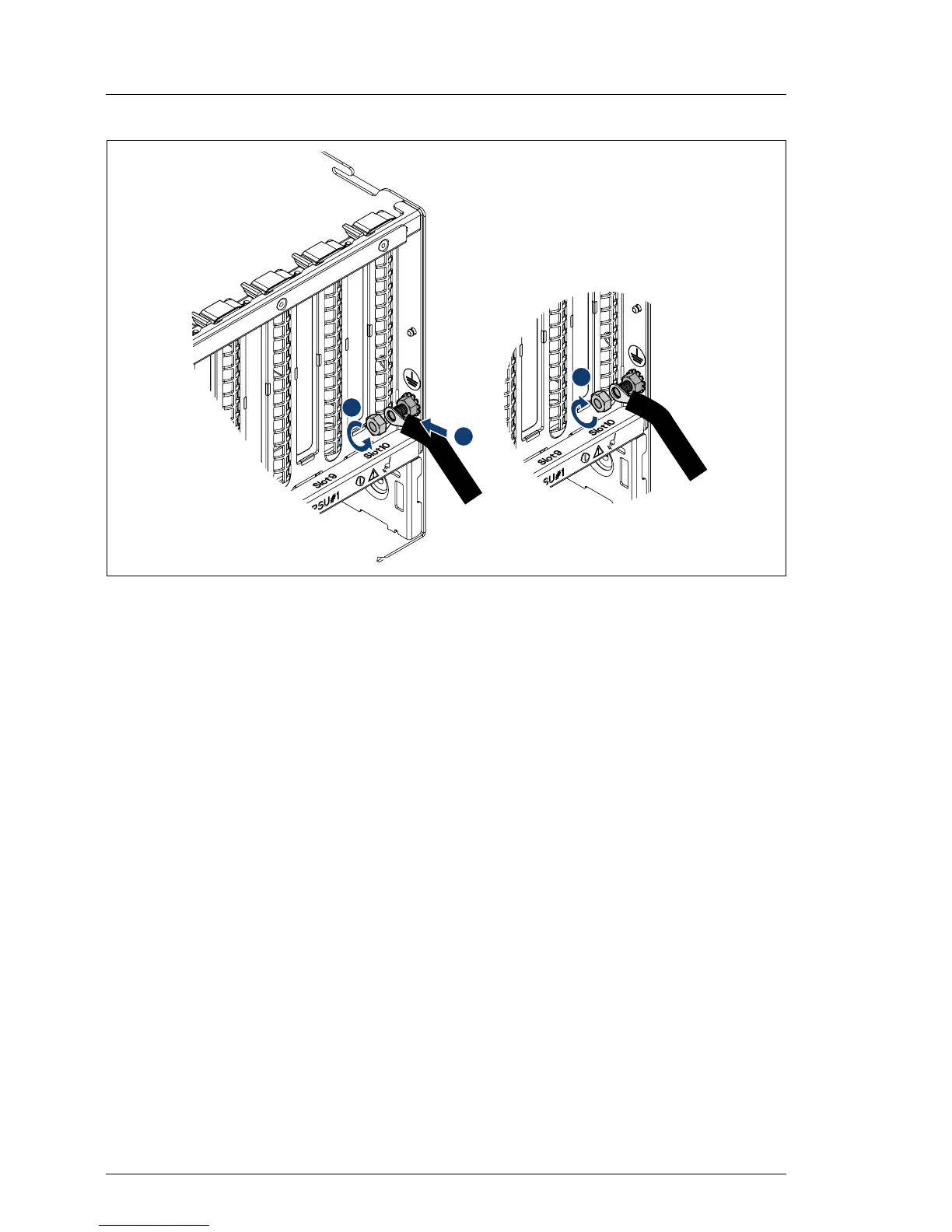

Figure 5: Installing a protective earth conductor
Ê Loosen the first nut and remove it (1).
Ê Plug the protective earth conductor onto the bolt (2).
Ê Replace the nut and tighten it (3).
photo shows installation of a protective earth conductor
1
2
3
