Fujitsu PRIMERGY TX150 S4 Information Guide

System configurator and order-information guide
PRIMERGY TX150 S4 Status 25.11.2005

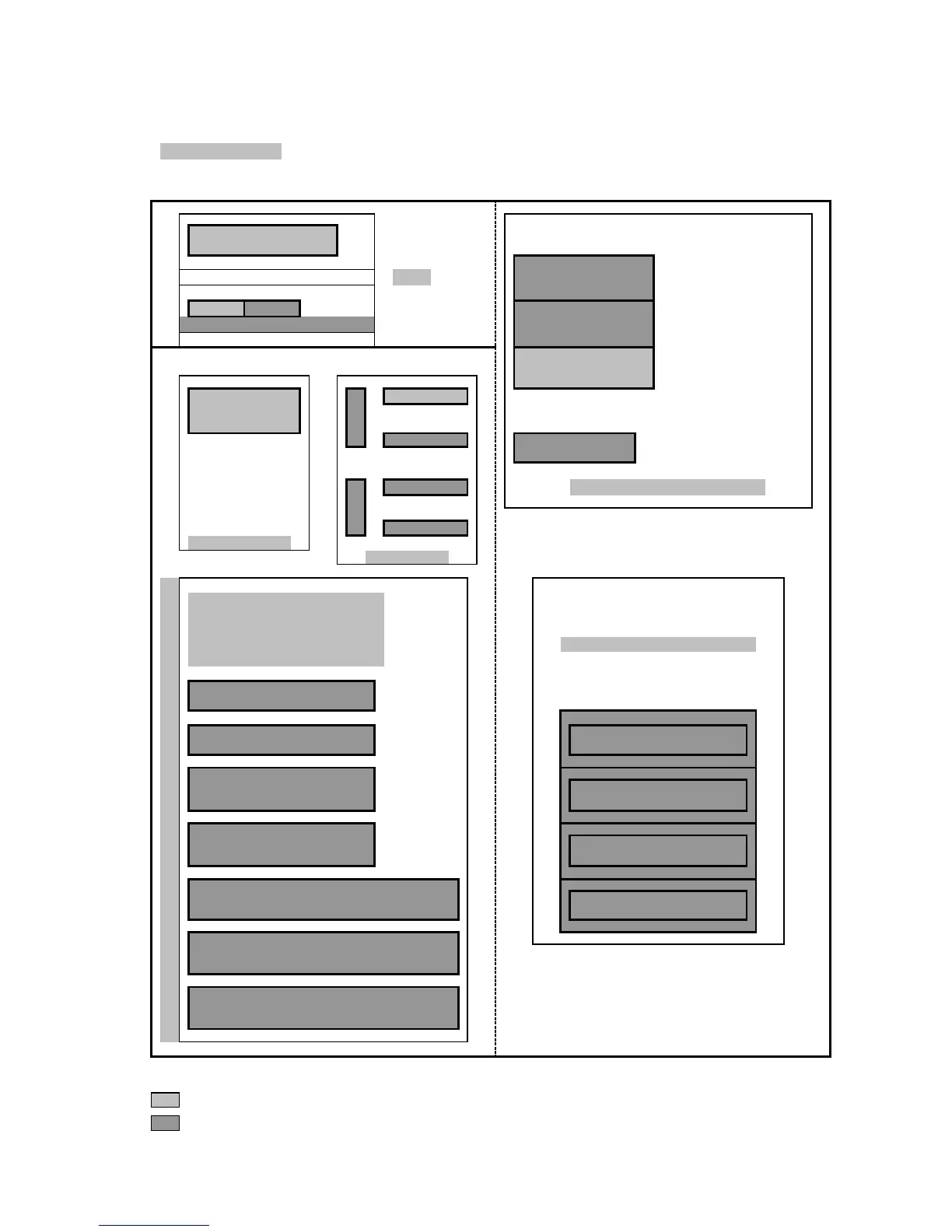

Configuration diagram PRIMERGY TX150 S4
System unit ( I )
SIDE VIEW FRONT VIEW
3 x 5.25"
or PS (I) 5.25" x 1.6"
1. PSU 2. PSU
Redundant power supply option 5.25" x 1.6"
Modul 1
Pentium 4
Modul 3
Modul 2
Accessible drives ( V )
Modul 4
Processor ( II )
Memory ( III )
Extension slots
SCSI Controller ( VII )
Disk array ( VIII ) Hard disk drives ( VI )
Communication/Network ( IX )
PCIe x 1
PCIe x 4 (x8 Slot)
PCI short (5V) 32-Bit / 33MHz
PCI short (5V) 32-Bit / 33MHz
PCI-X 66 long (3,3V)
PCI-X 66 long (3,3V)
(Slot for Zero-Channel Controller)
PCI long (5V) 32-Bit / 33MHz
Key:
Included in basic unit
Option
1 PCI-Bus
5.25" x 1.6" CD / DVD drive
Bank 1Bank 2
4.2.1. 7.
Standard Power Supply
SCSI 1"
3.
SCSI 1"
SCSI 1"
5.
SCSI 1"
6.
3.5"x1" Floppy disk (optional)
Fujitsu Siemens Computers
Enterprise Products - PRIMERGY Server
3 of 18

Fujitsu PRIMERGY TX150 S4 Specifications

General

Brand	Fujitsu
Model	PRIMERGY TX150 S4
Category	Server
Language	English
