4.3 Cleaning the Inside of the Scanner (4)
1
2 3
4
5
Turn on the scanner before cleaning the following locations.
● Feed rollers (x 4)
Clean lightly taking care not to roughen the surface of the rollers. Take particular care in cleaning the
feed rollers since black debris on the rollers adversely affect the pickup performance.
1. Open the ADF when the indication of the Function Number display is not "P" or "0".
If you open the ADF when the indication of the Function Number display is "P" or "0", the
Feed rollers will not rotate even you perform the operation of step 2) below.
2. Simultaneously hold down the "Send to" and "Scan" buttons on the operator panel.
The Feed rollers start to rotate slowly.

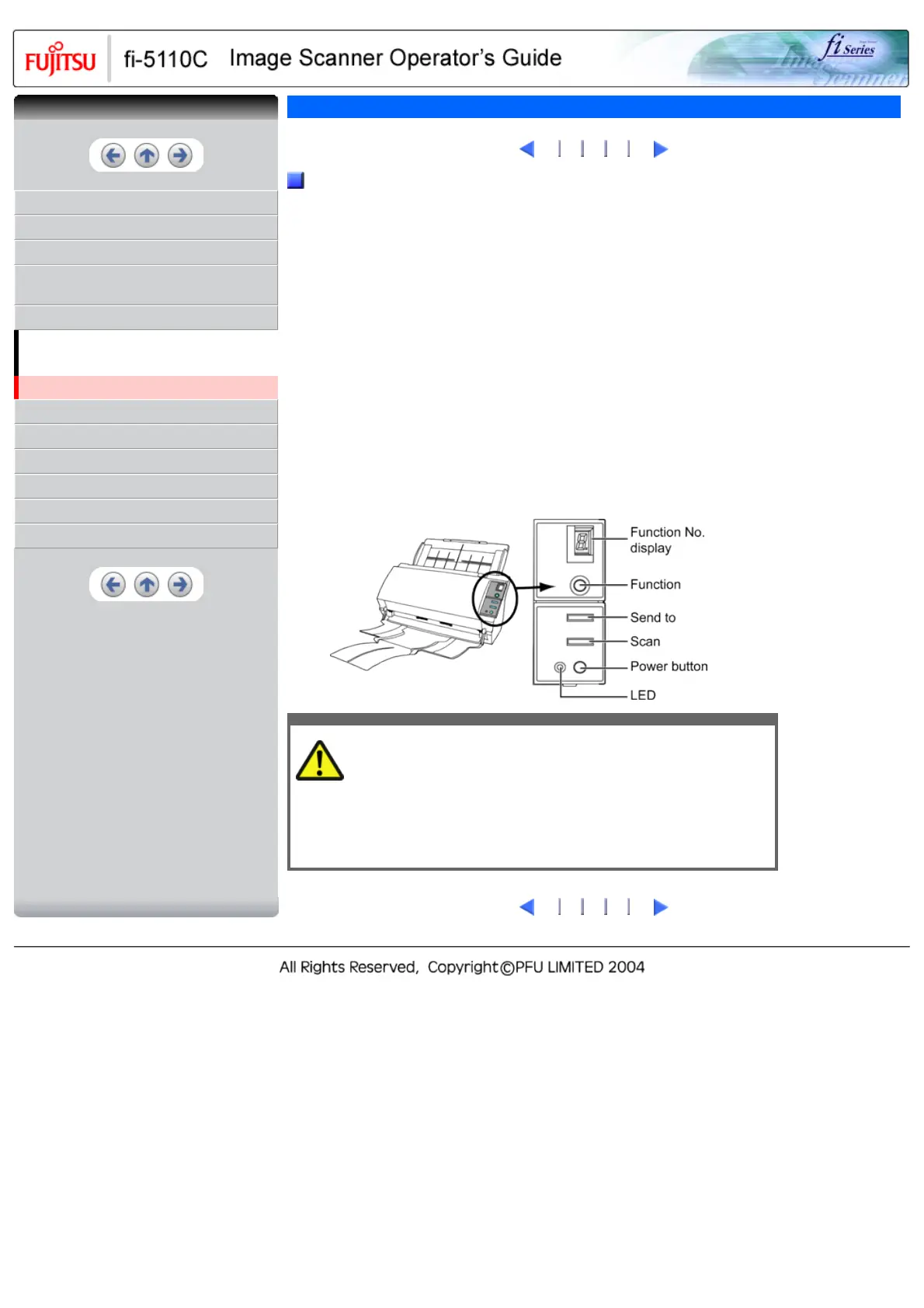

For details on where the "Send to" and "Scan" buttons are located, refer to the
following illustration.
3. Hold a soft, dry cloth moistened with cleaning fluid against the surface of the rotating Feed
rollers so that it lightly cleans the surface of the rollers.
As a guideline, 6 presses of the "Send to" and "Scan" buttons make the Feed rollers to rotate
one full turn.
CAUTION
In step 2, all the Feed rollers turn at the same time. When cleaning the
Feed rollers positioned in the lower part of the ADF, be caereful not to
touch the other Feed rollers.
1
2 3
4
5
