5.3 Replacing the Pick Roller (2)
1
2
3

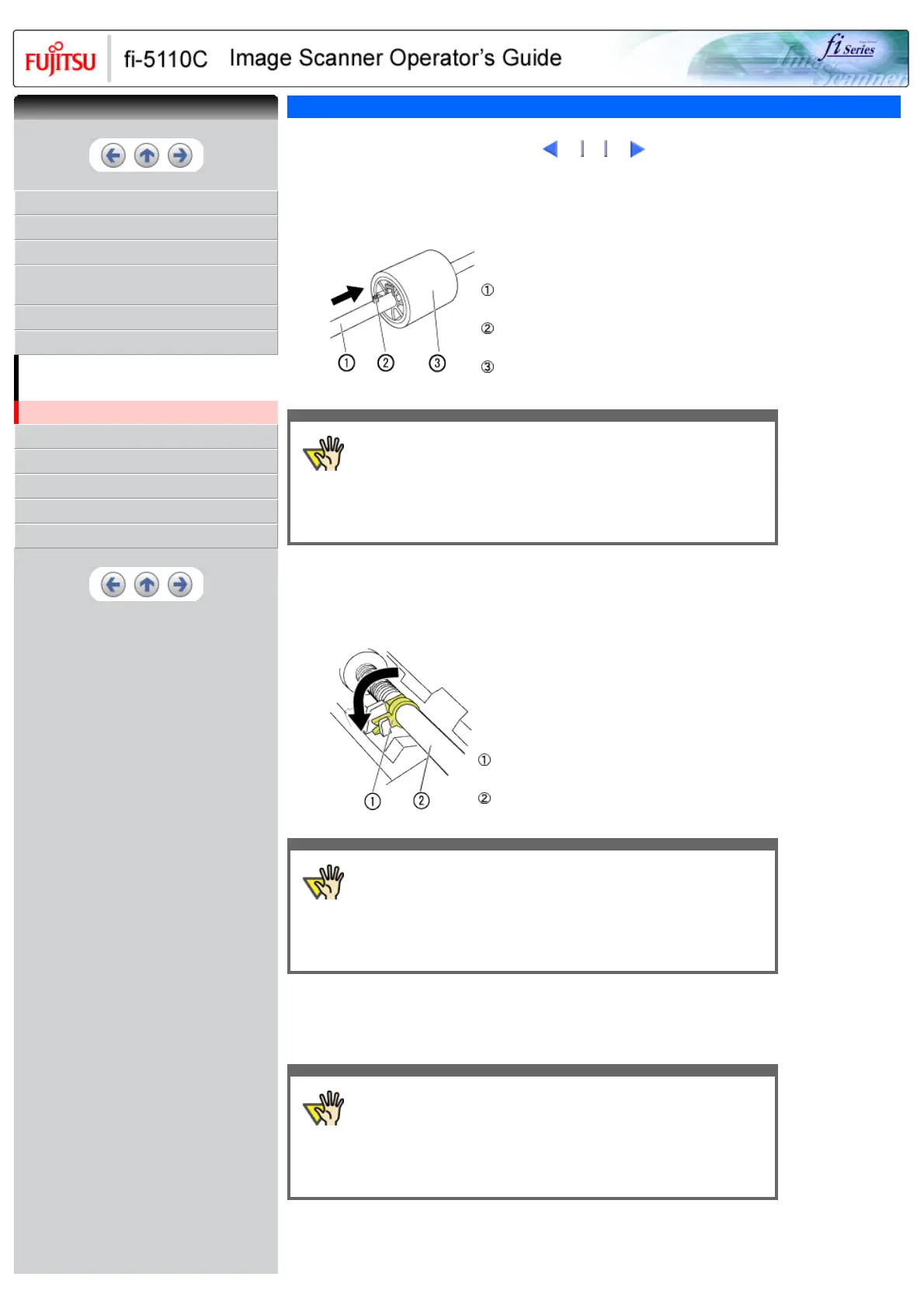

8. Attach the new pick roller to the shaft.
Insert the new pick roller aligning the protrusion with the slot on the pick roller.
: Pick Roller
Shaft
: Protusion
: Pick Roller
ATTENTION
Make sure that the Pick roller is completely attached. An incompletely
attached Pick roller might cause document jams or other feedings errors.
9. Install the pick roller with its shaft to the scanner.
Attatch the Pick roller to the scanner in reverse order of the procedure for removing.
10. Rotate the roller bushing by rotating it in the direction of the arrow.
: Pick Roller Bushing
: Pick Roller Shaft
ATTENTION
Make sure that the Pick roller is completely attached. An incompletely
attached Pick roller might cause document jams or other feeding errors.
11. Attach the sheet guide to the scanner.
Pinch the knobs on the sheet guide and attach it to the scanner.
The sheet guide makes a clicking sound when the knobs fix into position.
ATTENTION
Make sure that the sheet guide is completely attached. Otherwise,
document jams or other feeding errors may occur.
12. Close the ADF.
You should hear the ADF click when it returns to its original position.
13. Attach the ADF paper chute.
