Fujitsu ScanSnap S500M Getting Started

16 |

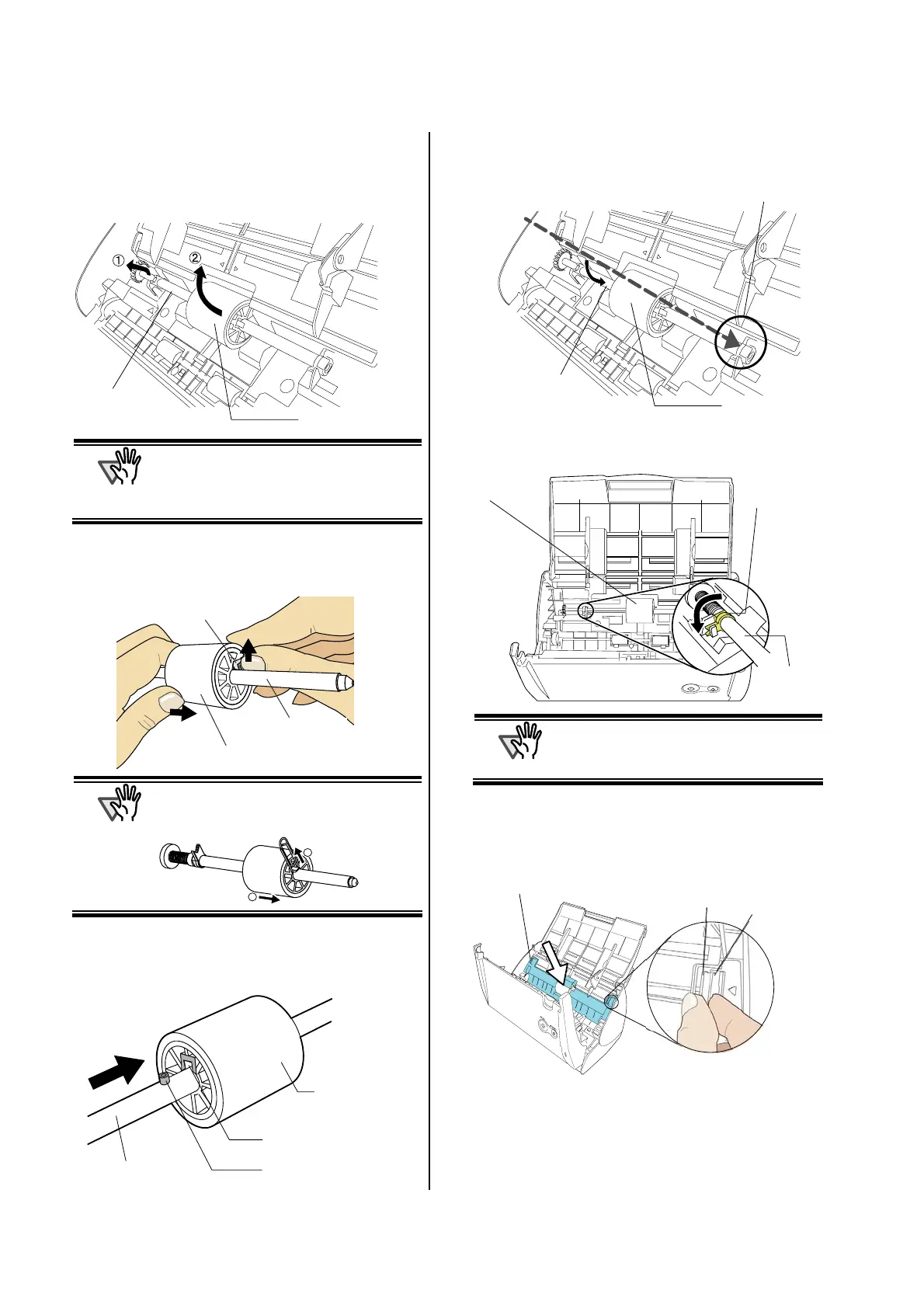

6. Remove the Pick roller with its shaft.
Slightly pull up the left part of the Pick roller shaft
about 1/5 inch (5 mm), move it towards the left side,
and then raise it to remove from the scanner.
A
TTENTION
If the parts around the pick roller become dirty
because of paper-powder, it may cause a
scanning error. Please remove the dirt using a
dry cloth moistened with Cleaner F1.
* Don't use water, mild detergent or air-spray.
7. Remove the Pick roller from the shaft.
Pull out the shaft from the Pick roller while lifting up
its tab.
A
TTENTION
it may crack or chip your fingernail.
If you worry about that, push up the pick roller
tab using a paper clip.
1
2
8. Attach a new Pick roller to the shaft.
Insert the Pick roller shaft aligning the key with the slot
on the Pick roller.
9. Install the Pick roller with its shaft into the scanner.
and set the shaft to the slot while lowering it.
10. Fix the Pick roller bushing (left) by rotating it in the
direction of the arrow.
A
TTENTION
Make sure that the Pick roller is completely
attached and correctly installed. Otherwise,
document jams or other feeding errors may
occur.
11. Attach the sheet guide to the scanner.
While holding the handle on the sheet guide, set the sheet
guide into the scanner.
Ö You should hear the sheet guide click when it
returns to its original position.
Pick roller shaft
Pick roller
Slot
Key
Pick roller shaft
Pick roller
Tab
Pick roller
Pick roller shaft
Sheet guide
Craw
Handle
Pick roller
shaft
Pick roller
bushing
Pick roller
Pick roller shaft
Pick roller
Bushing
