Management Unit Rear of the MU
U41858-J-Z126-2-76 55
Dokuschablonen 19x24 Version 7.4us für FrameMaker V7.x vom 09.02.2010 © cognitas GmbH 2001-2010
Dokuschablonen 19x24 Version 7.4us für FrameMaker V7.x vom 09.02.2010 © cognitas GmbH 2001-2010
19. April 2017 Stand 15:41.40 Pfad: P:\FTS-BS\Server\SE-Server\SE-Doku\1303913_BA_Basis_update_2\prod_e\ba_basis.k06
6.2 Rear of the MU
Figure 13: Management Unit (MU) - rear of a MU M1
Figure 14: Management Unit (MU) - rear of a MU M2

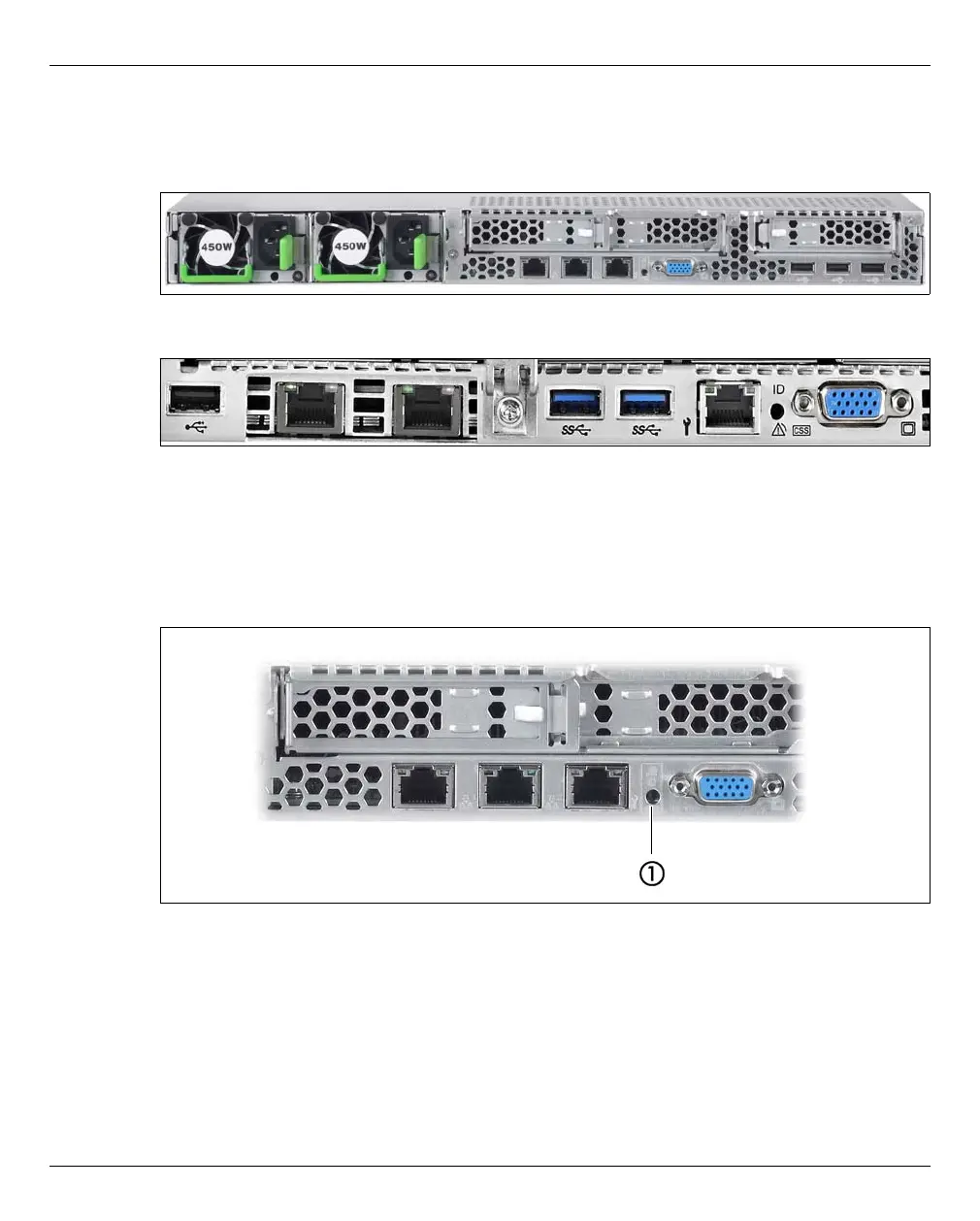

The figure 13 and figure 14 show the rear of a MU M1 and MU M2 with PCIe slots which
are not equipped.
ID/CSS/Global error indicator
Figure 15: ID/CSS/Global error indicator (MU M1)
