Management Unit Rear of the MU
U41858-J-Z126-2-76 57
Dokuschablonen 19x24 Version 7.4us für FrameMaker V7.x vom 09.02.2010 © cognitas GmbH 2001-2010
Dokuschablonen 19x24 Version 7.4us für FrameMaker V7.x vom 09.02.2010 © cognitas GmbH 2001-2010
19. April 2017 Stand 15:41.40 Pfad: P:\FTS-BS\Server\SE-Server\SE-Doku\1303913_BA_Basis_update_2\prod_e\ba_basis.k06
LAN indicators

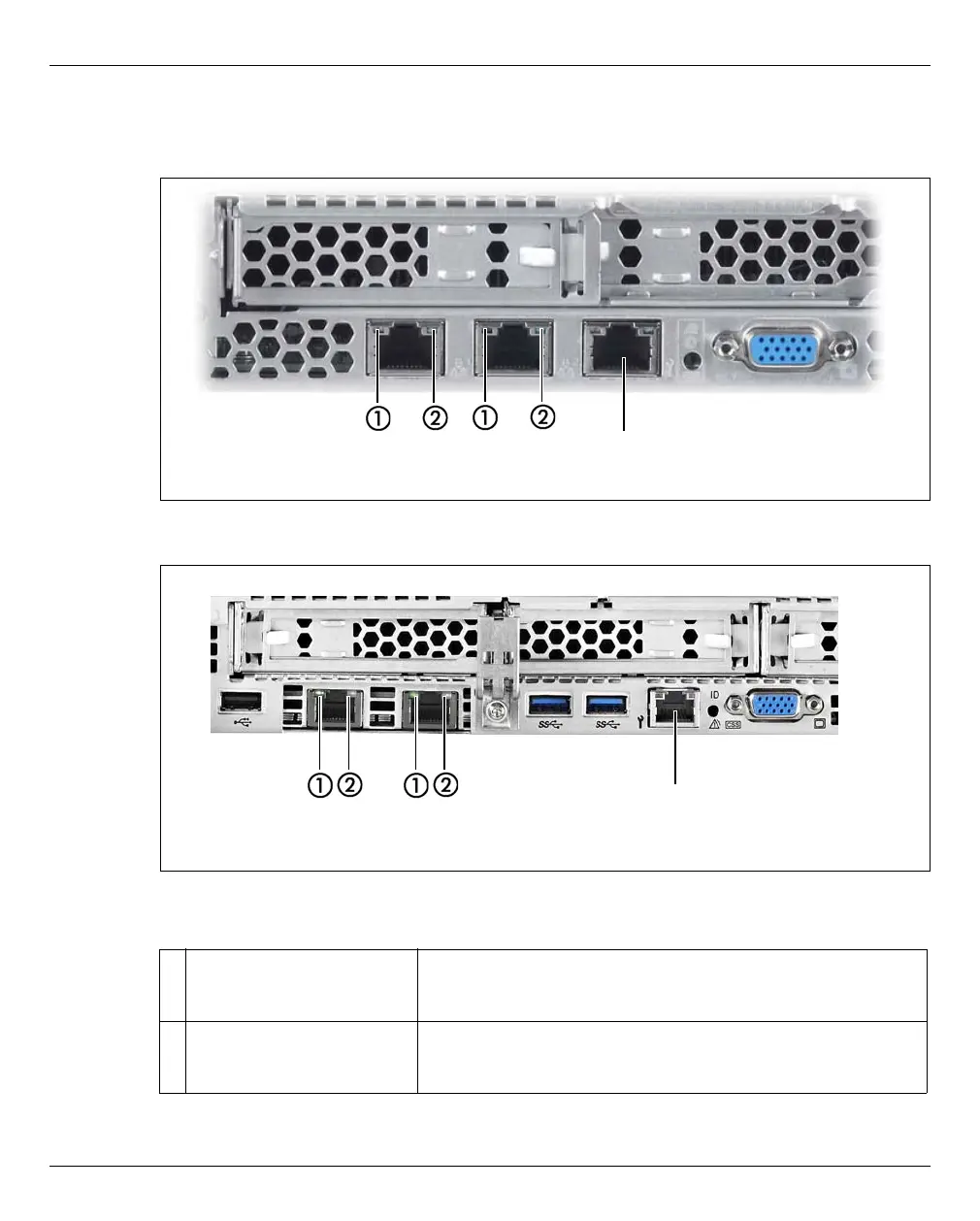

Figure 17: LAN indicators (MU M1)
Figure 18: LAN indicators (MU M2)
1LAN speed Lights up green for a LAN transfer rate of 1 Gbps.
Lights up green for a LAN transfer rate of 100 Mbps.
Does not light up for a LAN transfer rate of 10 Mbps.
2 LAN connection/transfer Lights up green if a LAN connection exists.
Does not light up if no LAN connection exists.
Flashes green when a LAN transfer is in progress.
(System LAN ports)
SYS1 SYS2
unused
(System LAN ports)
unused
SYS1
SYS2
