Accessories for yo ur Tablet P C (opti

onal)

► Position the Tablet PC with the magnetic keyboard so that it lies on the

surface of the tray on the docking cra dle.

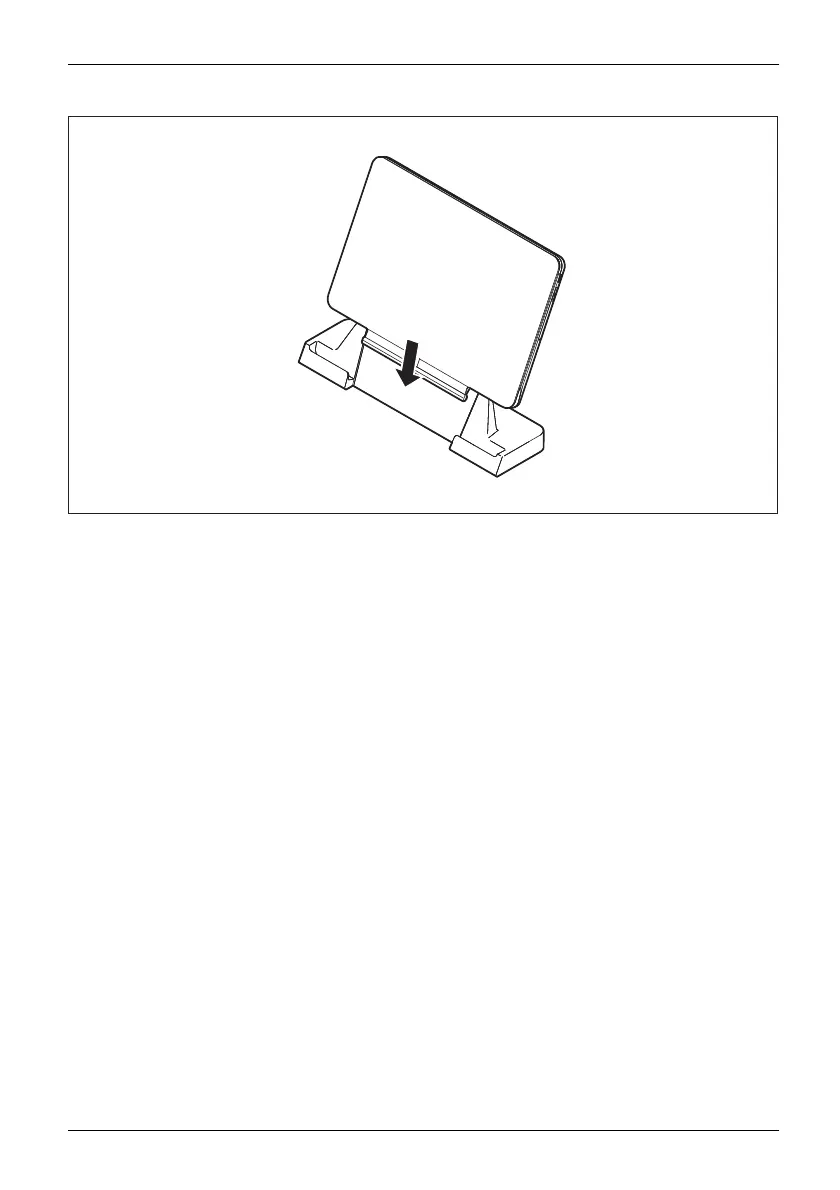

► Push the Tablet PC on to the docking cradle in the direction of the arrow (3)

until you feel it engage on the connector.

Fujitsu 53
