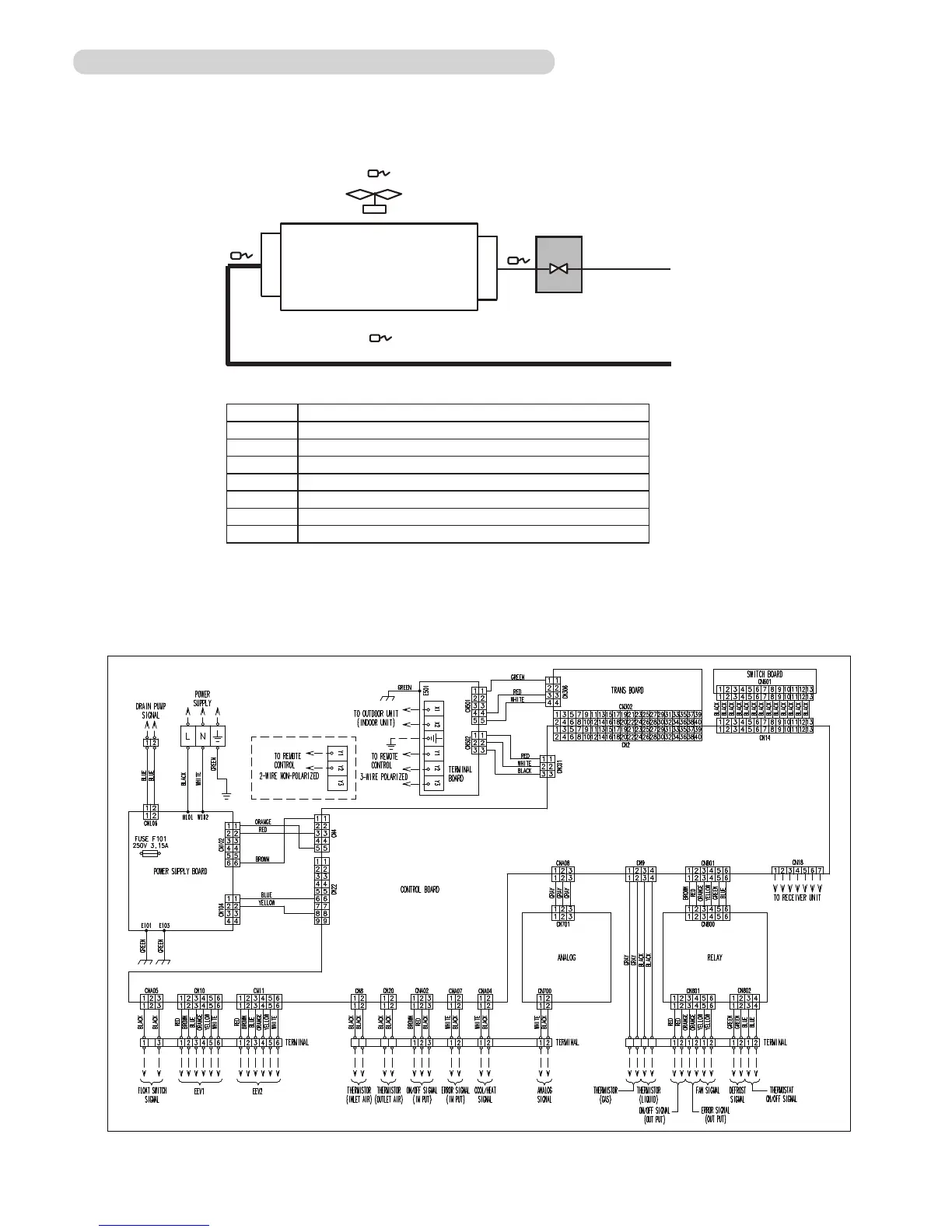

REFRIGERANT CIRCUIT1 .
MODELS: UTP-VX30A, UTP-VX60A, UTP-VX90A
EEV
EEV UNIT
(UTP-VX**A)
FAN
HEX
TH21
TH22
TH24
TH25
LIQUID LINE
GAS LINE
SYMBOL DESCRIPTION
MARK DESCRIPTION
HEX Heat exchanger (Locally purchased)
FAN Fan (Locally purchased)
EEV Electric expansion valve
TH21 Suction airflow temperature thermistor
TH22 Heat exchanger (inlet) thermistor
TH24 Heat exchanger (outlet) thermistor
TH25 Discharge airflow temperature thermistor
MODEL: UTY-VDGX
WIRING DIAGRAMS2 .
05 - 20
5-2-3 DX-KIT
