15. COMPRESSOR removal
06-12
Precautions for exchange of Compressor.
Procedure for compressor removal.
Do not allow moisture or debris to get inside refrigerant pipes during work.
(1) Turn off power.
(2) Remove the SERVICE PANEL and PIPE COVER FRONT.
(3) Fully open the 3WAY VALVE(Gas) and 3WAY VALVE(Liquid).
(4) Open the EEVs of Outdoor units and Indoor units by vaccuming mode.
(5) Collect the refrigerant from the 3WAY VALVE.
Start the following work after completely collecting the refrigerant.
Do not reuse the refrigerant that has been collected.

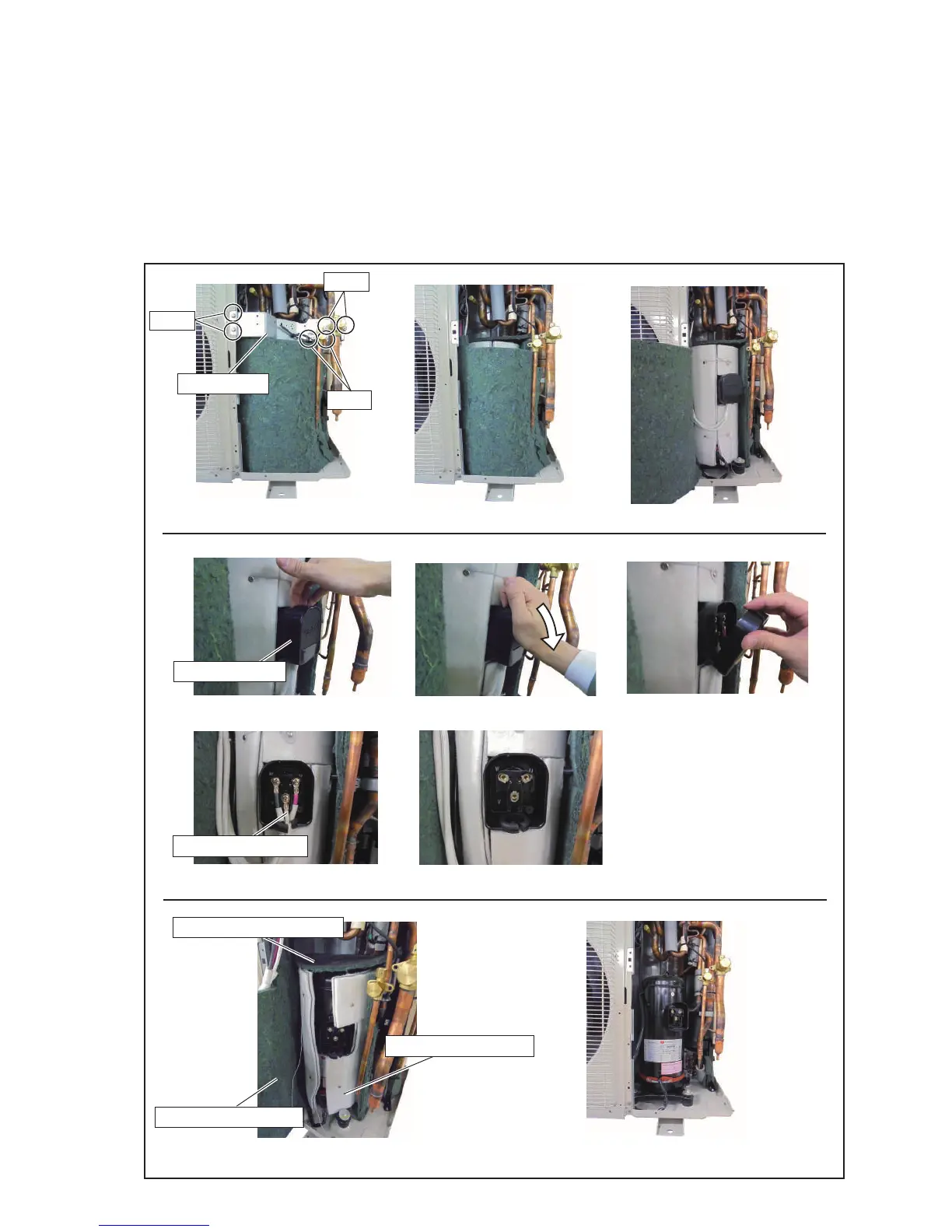

Remove the 6 mounting screws. Remove the VALVE PLATE.
Screws
Screws
Screws
Remove the TERMINAL COVER.
Remove the COMPRESSOR WIRES.
Remove the COMPRESSOR COVERS.
TERMINAL COVER
COMPRESSOR WIRES
COMPRESSOR COVER TOP
COMPRESSOR COVER A
VALVE PLATE
COMPRESSOR COVER B
To Next Page
