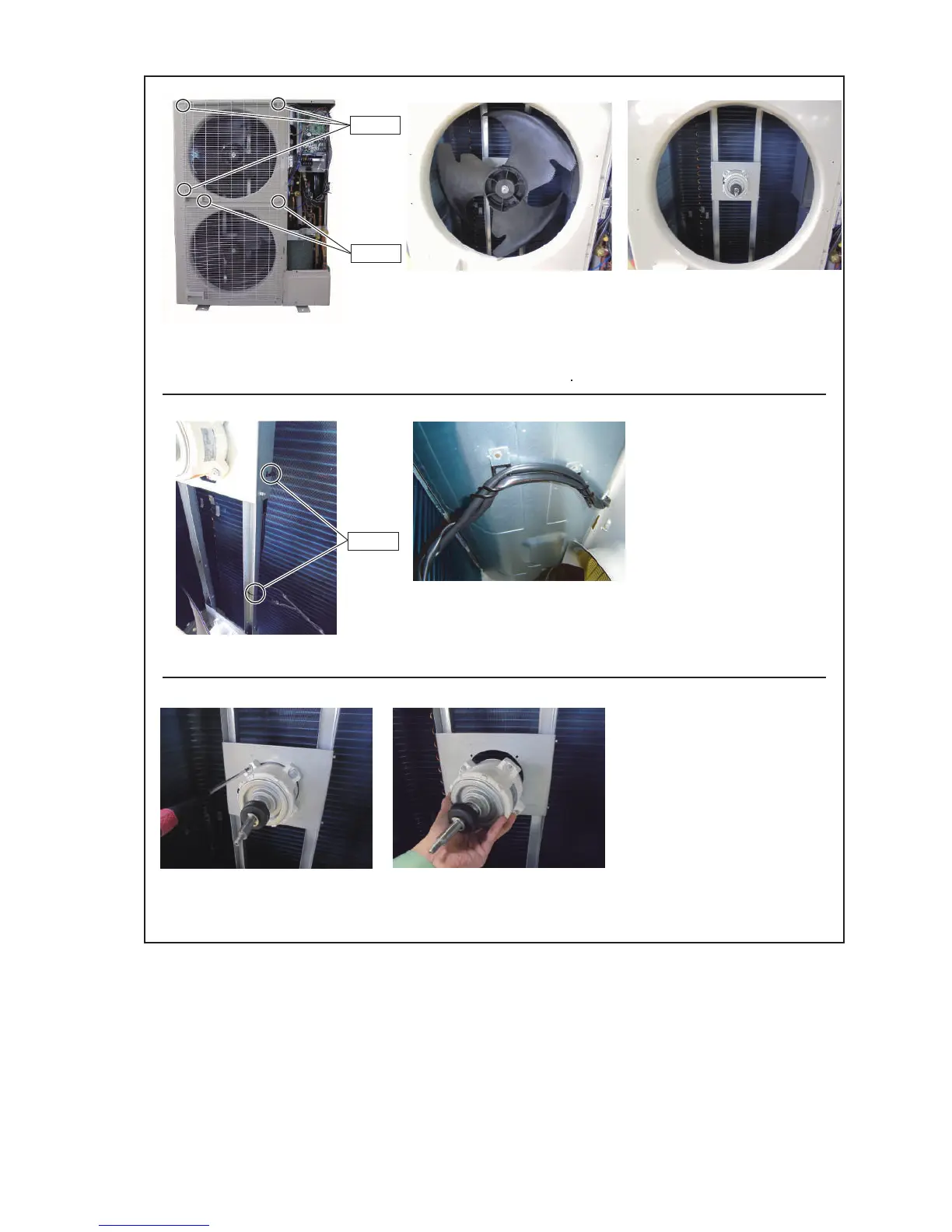

10. FAN MOTOR removal
06-09
Remove the 5 mounting screws.
Loose the wire clamp, and
remove the lead wires.
Remove the nut.
And remove the PROPELLER FAN
Remove the FAN GUARD
by sliding upward.
Note at the installation.
Insert propeller Fan and Moter shaft reference
D cutting position.
And the tightening torque at the installation.
Tightening torque is from 10 to 12N m.
Note at the installation.
Motor wire is underside of Fan motor.
Cut the binders.(2 places)
Remove the 4 mounting screws.
Screws
Binders
Remove the FAN MOTOR.
Screws
To Next Page
