Fujitsu UTY-DMMYM Installation Manual

En-2
Unit: mm
30 33.5
23
9
4.5
12.5
63.5
83.5
4.5
45.3
15.3
4.5

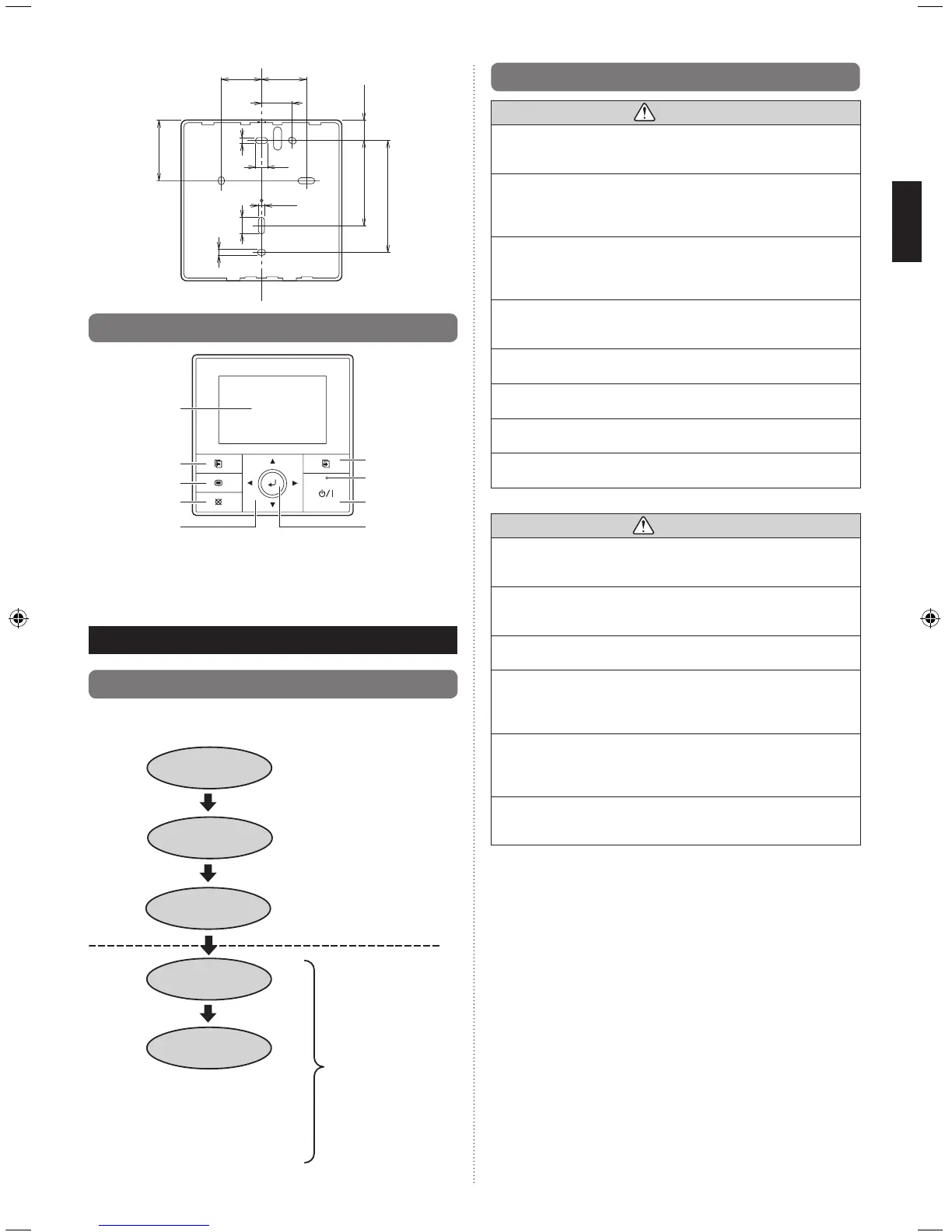

4.2. Name of parts
(1)
(2)
(6)
(3)
(7)
(4) (8)
(9)
(5)
(1) Display panel (with backlight) (6) Screen switch button (Right)
(2) Screen switch button (Left) (7) Power indicator
(3) Menu button (8) On/Off button
(4) Cancel button (9) Enter button
(5) Cursor button
5. INSTALLING THE REMOTE CONTROLLER
5.1. Flow of installation
The following is the ow of the installation of Central remote controller.
••••••••
••••••••
••••••••
Refer to [5.2. Wiring]
Refer to [5.3. Installation]
Refer to
[5.4. Setting the DIP switch]
Refer to Operating manual
Wiring
Installation
Turning on
the power
Setting
the DIP switch
Setting
• Language setting
• Temp. unit setting
• Date setting
• Time setting
• Change display format setting
• SETTING
• INSTALLATION
5.2. Wiring
WARNING
• Before starting installation work, turn off the power of the connection
destination. Do not turn on the power again until installation is
completed. Otherwise, it will cause electric shock or re.
• Use the accessories or specied connection cables.
Do not modify connection cables other than those specied, do not
use extension cords, and do not use independent branch wiring. The
allowable current will be exceeded and cause electric shock or re.
• Install the connection cables securely to the terminal block. Conrm
that external force is not applied to the wire. Use connection cables
made of the specified wire. If intermediate connection or insertion
xing are imperfect, it will cause electric shock, re, etc.
• When connecting the power cable and transmission cable, layout the
wiring so that the cover of this unit is securely xed. If the cover is
imperfectly xed, it may cause re or overheating of the terminals.
• Do not connect the ground wire to a telephone ground wire, water
pipe, or conductor rod.
• Always fasten the outside covering of the connection cord with the
cord clamp. (If the insulator is chafed, electric leakage may occur.)
•
When performing cable wiring work, be sure that it does not touch the
user. Doing so will cause injury or electric shock.
• If any cable is damaged, do not repair or modify it yourself. Improper
work will cause electric shock or re.
CAUTION
• Do not parallel to the remote controller cables, indoor and outdoor
connection cable, and power supply cables of Branch box. It may
cause erroneous operation.
• When performing wiring work, be careful not to damage the cable
or injure yourself. Also, connect the connectors securely. Loose
connectors will cause trouble, heating, re, or electric shock.
• Install the remote control cable 1 m away from television and radio to
avoid distorted images and noise.
• Perform wiring so that water does not enter this unit along the
external wiring. Always install a trap to the wiring or take other
countermeasures. Otherwise it will cause trouble or electric shock or
re.
• Conrm the name of each unit and name of each terminal block of the
unit and connect the wiring in accordance with the directions given
in the manual so that there is no incorrect wiring. Incorrect wiring will
damage the electric parts and cause smoke and re.
• When installing the connection cable near a source of electromagnetic
waves, use shielded cable. Otherwise, a breakdown or malfunction
could result.
9380222019-02_IM.indb 2 22/10/2553 16:02:54
