En-4

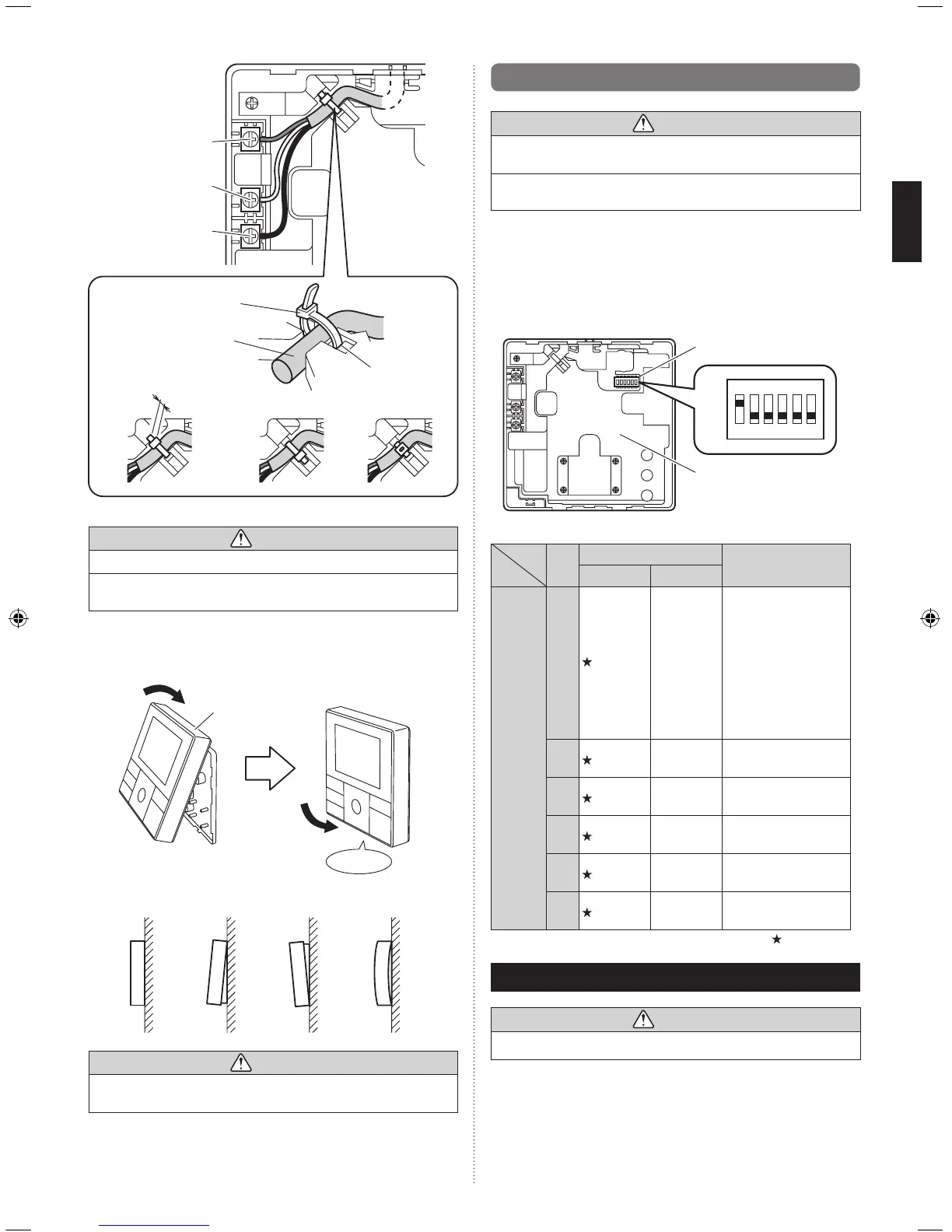

5.4. Setting the DIP switch
CAUTION
• Install the remote controller cables so as not to be direct touched with
your hand.
• Do not touch the remote controller PC board and PC board parts
directly with your hands.
Set DIP switch No. 1 to ON to enable the memory backup of the settings
information.
• Memory backup setting
If the DIP switch No. 1 is not set to ON, the settings information will be
lost if there is a power failure.
* Registered information, such as that for the internal unit, is not erased
even if the DIP switch is turned off.
DIP Switch
Front case (back side)
ON
OFF
No.
Switch state
Detail
OFF ON
DIP
switch
1
Invalidity Validity
Memory backup
setting
* Set to ON to use
batteries for the memory
backup.
If batteries are not used,
the settings information
stored in memory will
be deleted if there is a
power failure.
2
Cannot be used.
(Do not change)
3
Cannot be used.
(Do not change)
4
Cannot be used.
(Do not change)
5
Cannot be used.
(Do not change)
6
Cannot be used.
(Do not change)
(
Factory setting)
6. TURNING ON THE POWER
CAUTION
• Recheck the wiring. Incorrect wiring will cause trouble.
For setting and operating of the Central remote controller, refer to the
separate operating manual.
1. 12V (Red)
2. Signal (White)
3. COM (Black)
Binder
Hole for binder
Remote controller
cable (sheath)
2 mm
No good
Good
No good
CAUTION
• Be careful to avoid breaking the cable by over-tightening the binder.
• When connecting the remote controller cables, do not over-tighten the
screws.
(6) Attach the front case.
• Insert after adjusting upper part of front case.
• When insert the front case, do not pinch the cable.
Front case
Good
Click!
No good No good No good
CAUTION
• Insert the upper case rmly. If improperly attached, it will cause the
upper case to fall off.
