INSTALLATION EDR-SOLA-IOM-2022-0216 SECTION 2
2-8

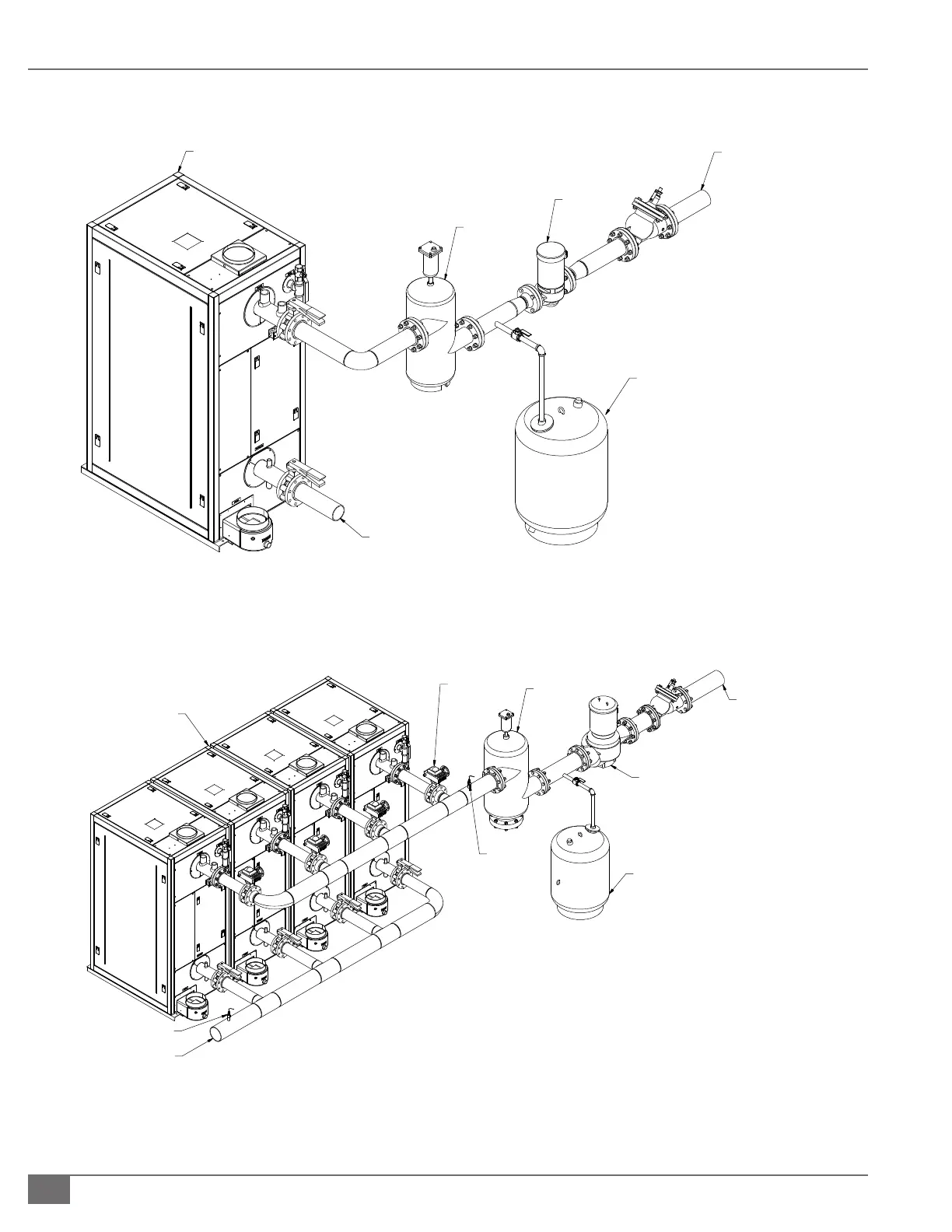

FIGURE 5  SAMPLE PIPING LAYOUT, PRIMARY ONLY VARIABLE FLOW PIPING; MULTIPLE BOILERS
Note: Sample piping layout (P&ID) is a general representation of system installation. Good practice should be used in system
design, including but not limited to adequate pipe/valve sizing and natural ow path for system water.




R
FULTON ENDURA
CONDENSING HYDRONIC BOILER
AIR REMOVAL
EXPANSION TANK
VARIABLE SPEED
SYSTEM PUMP
HEATING HOT
WATER SUPPLY
HEATING HOT
WATER RETURN
NOTES:
1.
2.
THIS IS A TYPICAL ARRANGEMENT FOR REFERENCE PURPOSE
S
ONLY. ACTUAL INSTALLATIONS MAY REQUIRE ADDITIONAL
COMPONENTS WHICH ARE NOT SHOWN FOR CLARITY.
THIS DRAWING IS NOT FOR CONSTRUCTION PURPOSES.




R
FULTON ENDURA
C
ONDENSING HYDRONIC BOILERS
RETURN
WATER TEMPERATURE
SENSOR
HEATING HOT
WATER RETURN
TWO POSITION
MOTORIZED
ISOLATION VALVE
SUPPLY WATER
TEMPERATURE
SENSOR
AIR REMOVAL
EXPANSION TANK
VARIABLE SPEED
SYSTEM PUMP
HEATING HOT
WATER SUPPLY
NOTES:
1.
2.
3.
4.
THIS IS A TYPICAL ARRANGEMENT FOR REFERENCE PURPO
SE
ONLY. ACTUAL INSTALLATIONS MAY REQUIRE ADDITIONAL
COMPONENTS WHICH ARE NOT SHOWN FOR CLARITY.
THIS DRAWING IS NOT FOR CONSTRUCTION PURPOSES.
REFER TO THE INSTALLATION AND OPERATION MANUALS
FO
INFORMATION REGARDING CLEARANCES AND INSTALLATI
ON
REQUIREMENTS.
THE PIPING CONFIGURATION SHOULD UTILIZE A REVERSE
RETURN HEADER TO PROPERLY BALANCE FLOW ACROSS THE
REVERSE
RETURN
(SEE NOTE 4)
FIGURE 4  SAMPLE PIPING LAYOUT, PRIMARY ONLY VARIABLE FLOW PIPING; SINGLE BOILER
