INSTALLATION EDR-SOLA-IOM-2022-0216 SECTION 2
2-20

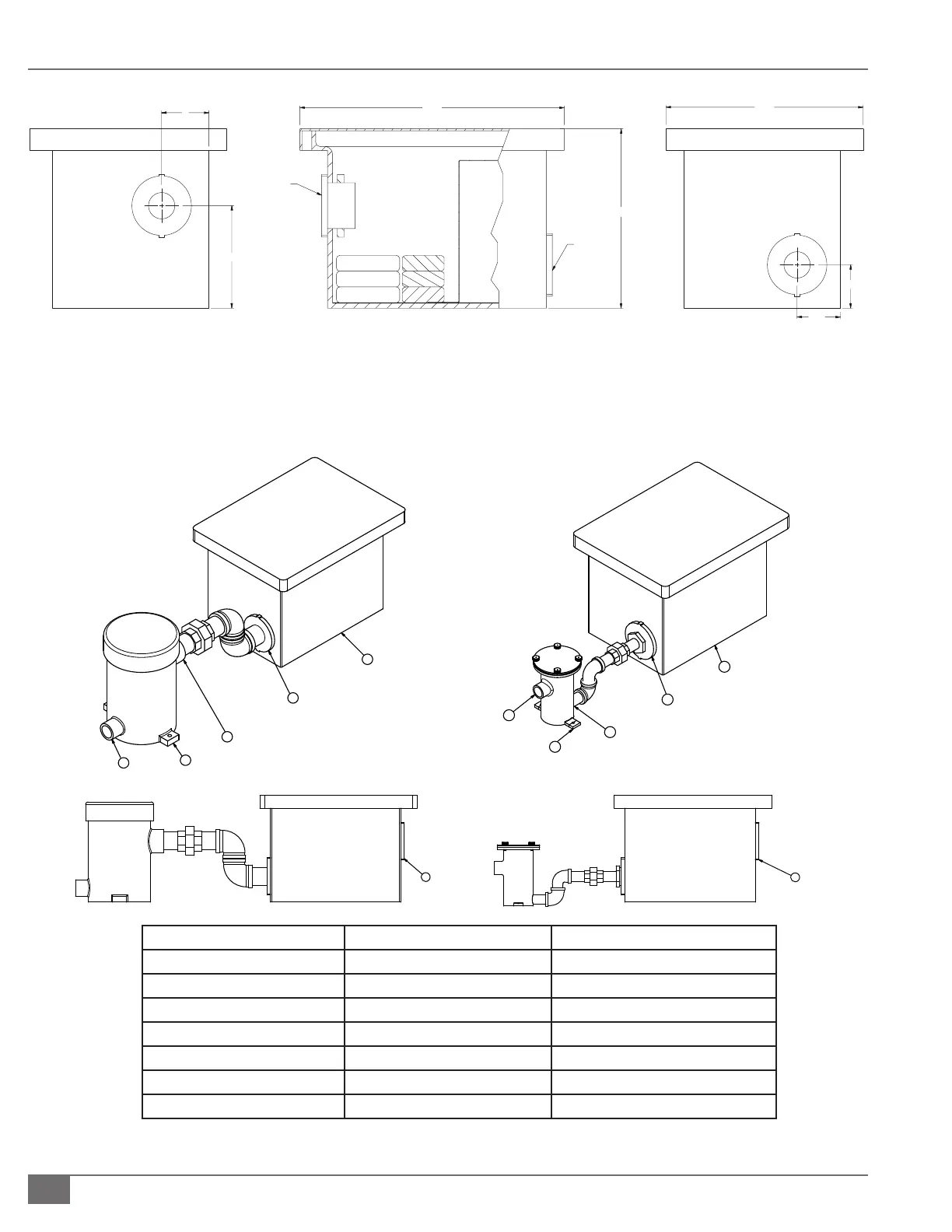

FIGURE 18  FIELD CONNECTIONS FOR CONDENSATE DRAIN TO PH NEUTRALIZATION TANK
Multiple Boilers Individual Boiler
(A) pH Kit Outlet 1 1/2” 1 1/2”
(B) Condensate Drain Trap 4-57-000440 4-57-005500
(C) Drain Outlet 1 1/2” 3/4”
(D) pH Kit Inlet 1 1/2” 1 1/2”
(E) pH Neutralization Kit 4-50-000008 4-50-000008
(F) Drain Inlet 1” 3/4”
Neutralizing Media 2-30-001580 2-30-001580
FIGURE 17  FULTON PH NEUTRALIZING KIT
MULTIPLE BOILER
ASSEMBLY
SINGLE BOILER
ASSEMBLY
FRONT VIEW RIGHT VI EW
LEFT VIEW
3
1½" N.P.T.
OUTLET
16 3/4
1½" N.P.T.
INLET
113/8
12 ½
2 3/4
2 3/4
6 ½
E
D
C
B
F
ISOMETRIC VIEW
E
D
C
B
F
ISOMETRIC VIEW
A
FRONT VI EW
FRONT VI EW
A
