2.5.1 GAS VALVE WITH PILOT GAS LINE
The main gas valve is fitted with a bypass system (internal or external depending on the model)
the bypass allows pilot pressure to be maintained whilst the flame is verified.
Main gas line
is
olating valve
Pilot line ball valve
Gas valve
Ga
s governor
Pilot line control valve
Ga
s actuator Pilot line connection
to burner

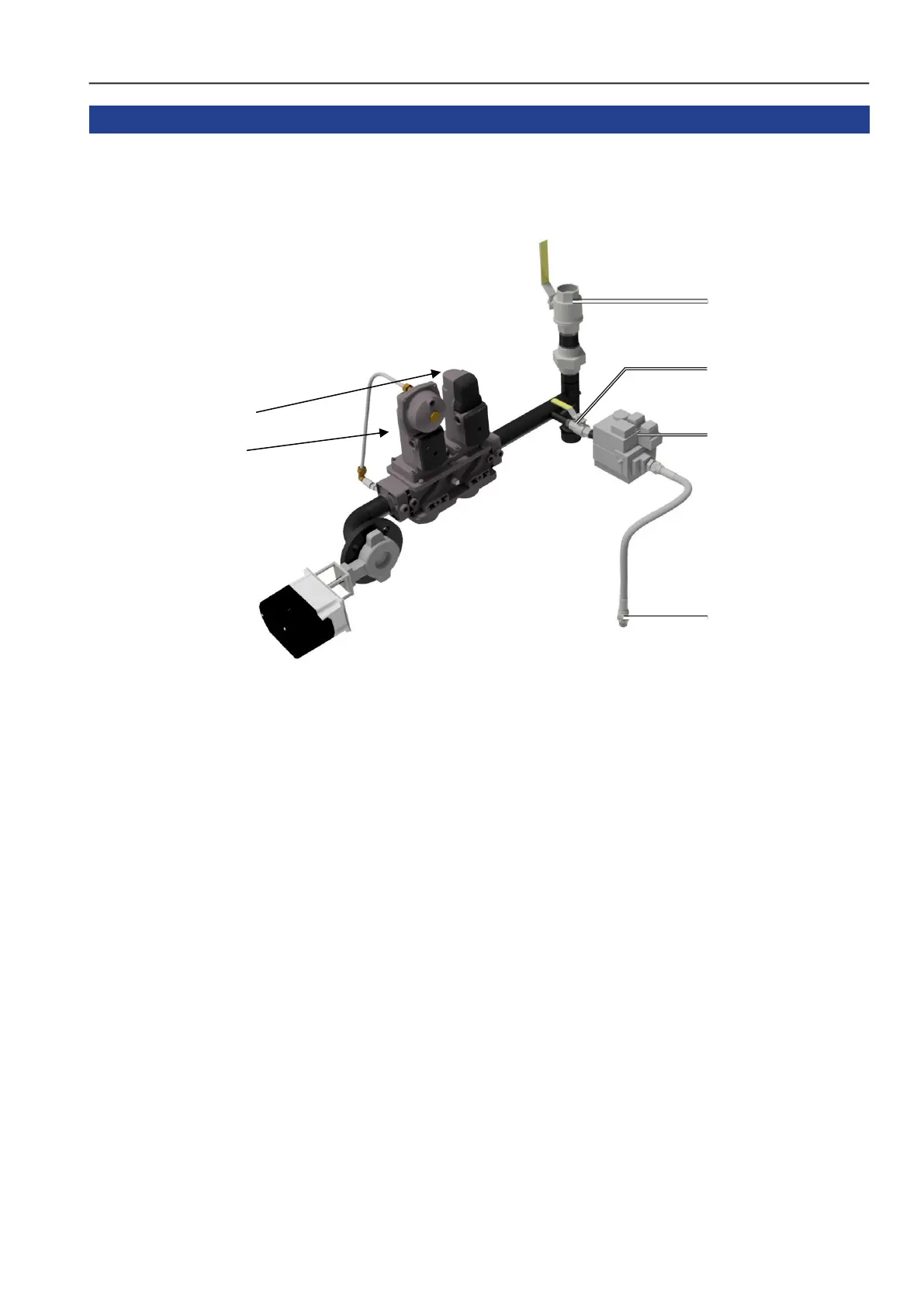

Figure. 8 -
Gas Supply
