1-7-11 HE450FIS
FUNCTION INDICATOR SYMBOLS
Note:

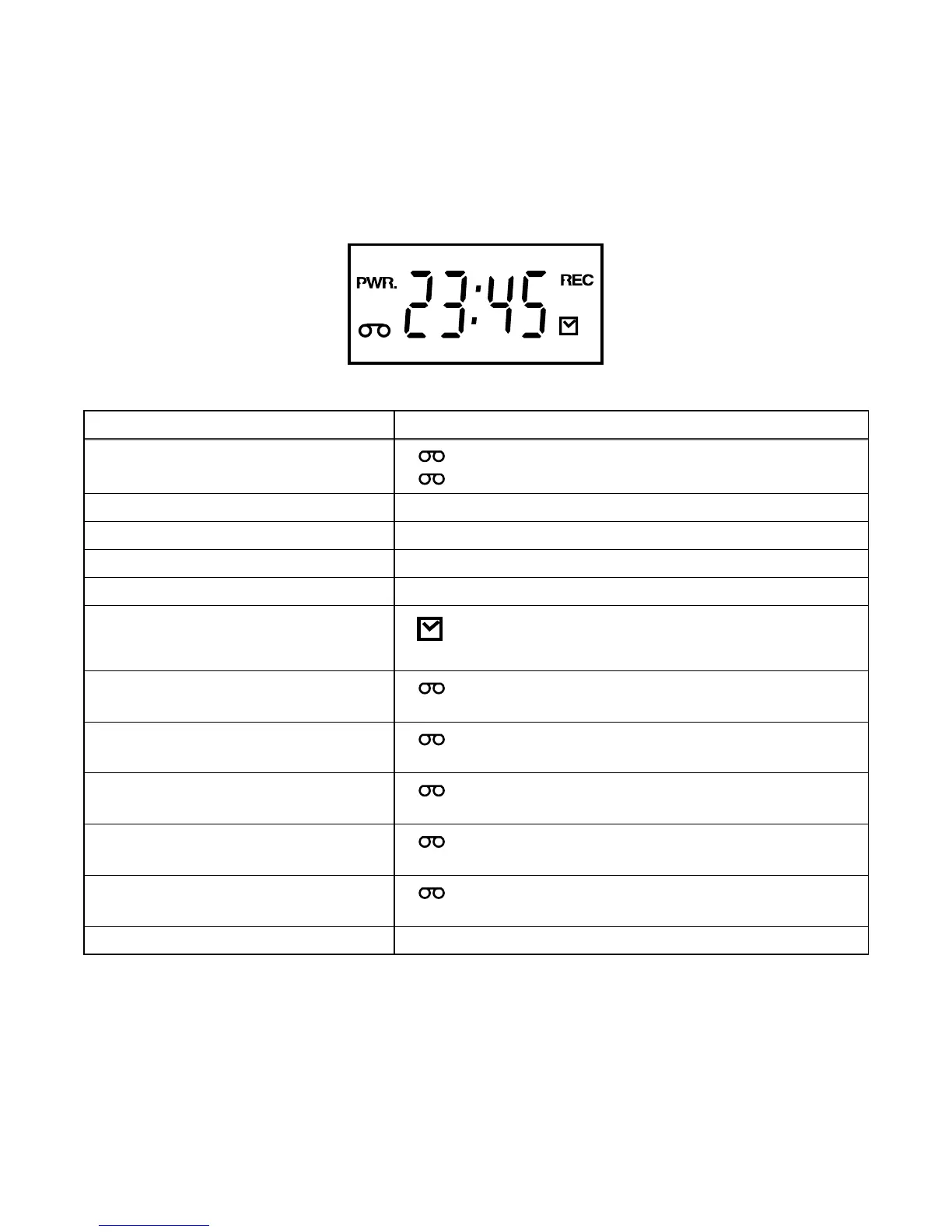

The following symbols will appear on the indicator panel to indicate the current mode or operation of the VCR.
On-screen modes will also be momentarily displayed on the tv screen when you press the operation buttons.
Display panel
" H "= LED Light on, " L "= LED Light off
LED MODE INDICATOR ACTIVE
CASSETTE "IN"
CASSETTE "OUT"
" "
" "
ON
OFF
CLOCK " 88:88 ON
POWER ON " PWR." ON
REC " REC " ON
REC PAUSE " REC " Blinks at 0.8Hz interval
T- R E C , OT R
" "
ON
(T-REC OFF,T-REC incomplete
Blinks at 0.8Hz interval)
When reel and capstan mechanism is not
functioning correctly
" "
" 1 "
Blinks at 0.8Hz interval
When tape loading mechanism is not func-
tioning correctly
" "
" 2 "
Blinks at 0.8Hz interval
When cassette loading mechanism is not
functioning correctly
" "
" 3 "
Blinks at 0.8Hz interval
When the drum is not working properly
" "
" 4 "
Blinks at 0.8Hz interval
P-ON Power safety detection
" "
" 5 "
Blinks at 0.8Hz interval
S-INH condition All modes Blinks at 0.8Hz interval
