FUNAI 27A-664 - Waveforms

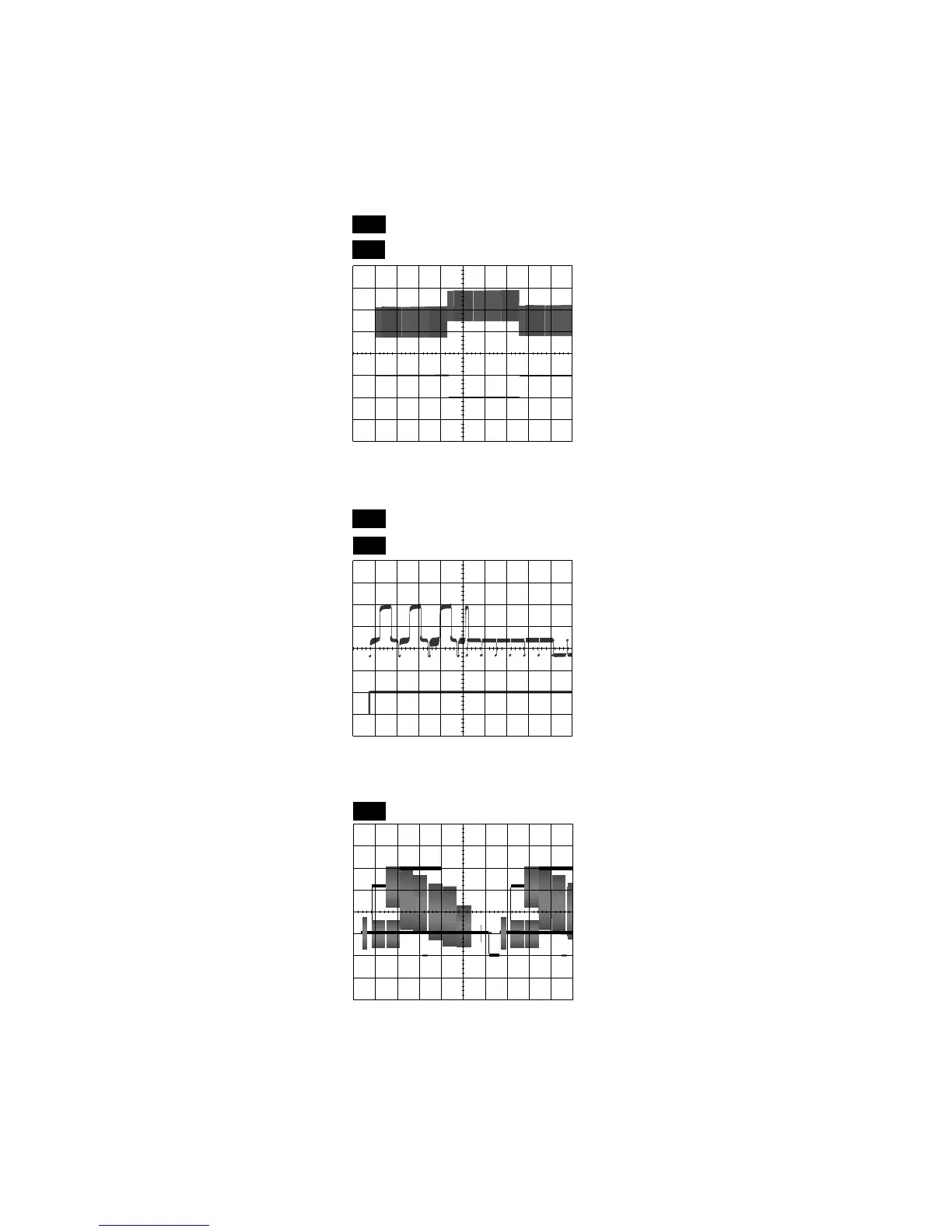

WAVEFORMS
1-9-1 U27WFPAL
WF3
V-OUT E-E
10usec 50mV x 10
(J23 of Main CBA)
WF3
UPPER
WF1
LOWER
V-OUT 0.1V x 10
RF-SW 0.5V x 10
50usec
(J23 of Main CBA)
(TP502 of Main CBA)
WF2
C-PB 10mV x 10
RF-SW 0.5V x 10
5msec
UPPER
LOWER
WF1
(TP502 of Main CBA)
(TP301 of Main CBA)
