FUNAI DR-C3835 - CABINET DISASSEMBLY INSTRUCTIONS; Disassembly Flowchart; Disassembly Method

1-5-1 E7B20DC
CABINET DISASSEMBLY INSTRUCTIONS

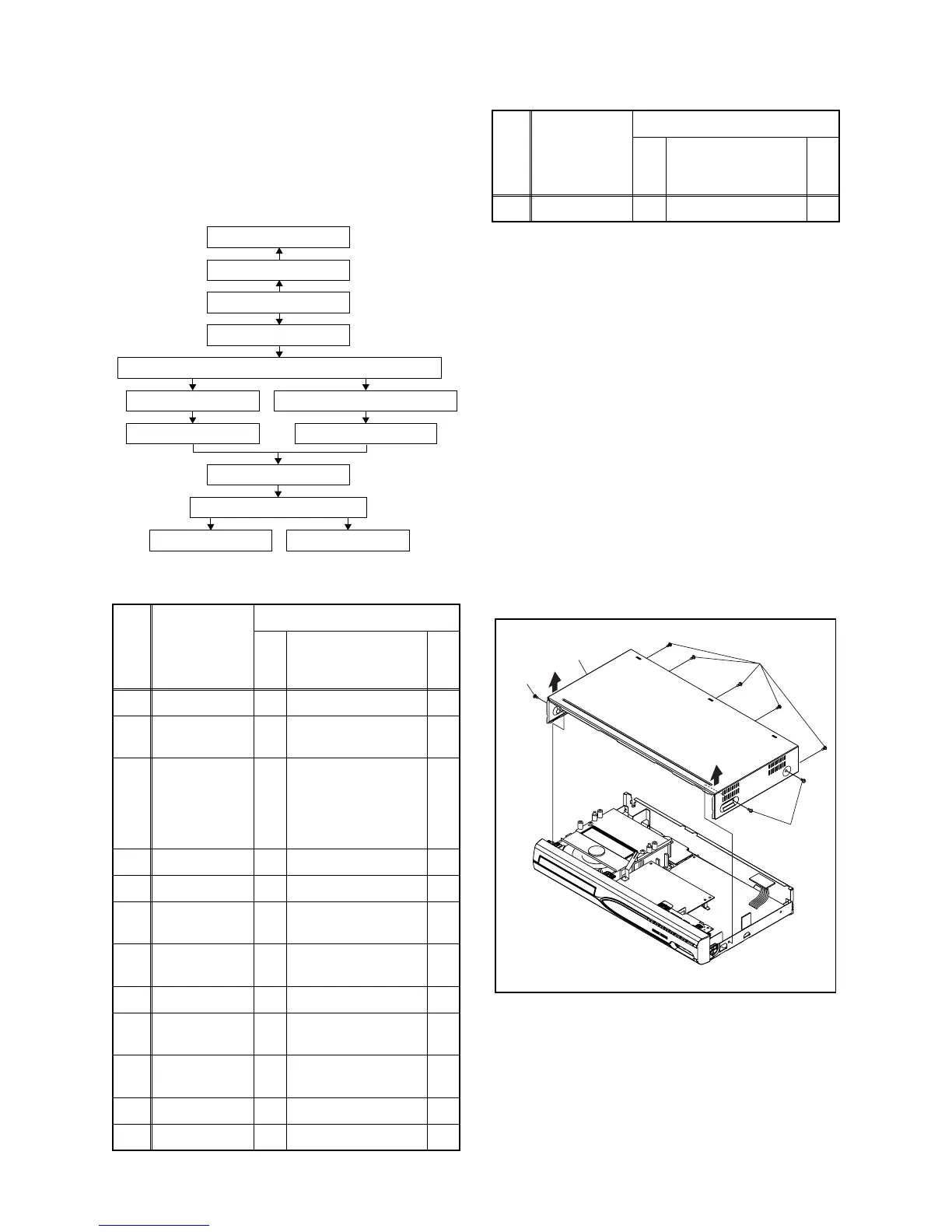

1. Disassembly Flowchart
This flowchart indicates the disassembly steps to gain
access to item(s) to be serviced. When reassembling,
follow the steps in reverse order. Bend, route, and
dress the cables as they were originally.
2. Disassembly Method
Note:
(1) Identification (location) No. of parts in the figures
(2) Name of the part
(3) Figure Number for reference
(4) Identification of parts to be removed, unhooked,
unlocked, released, unplugged, unclamped, or
desoldered.
P = Spring, L = Locking Tab, S = Screw,
CN = Connector
* = Unhook, Unlock, Release, Unplug, or Desolder
e.g. 2(S-2) = two Screws (S-2),
2(L-2) = two Locking Tabs (L-2)
(5) Refer to “Reference Notes.”
Reference Notes
1. CAUTION 1: Locking Tabs (L-1) and (L-2) are
fragile. Be careful not to break them.
ID/
Loc.
No.
Part
Removal
Fig.
No.
Remove/*Unhook/
Unlock/Release/
Unplug/Desolder
Note
[1] TOP COVER D1 8(S-1) ---
[2]
FRONT
ASSEMBLY
D2 *6(L-1), *3(L-2) 1
[3]
DVD
MECHANISM
& DVD MAIN
CBA
ASSEMBLY
D3
4(S-2), *CN101,
*CN701, LOCKING
CARD SPACERS
---
[4] SW CBA D4 (S-3), Desolder ---
[5] PCB HOLDER D4 2(S-4) ---
[6]
POWER
SUPPLY CBA
D4 2(S-5), *CN1152 ---
[7]
POWER
HOLDER
D4 (S-6) ---
[8] FAN COVER D5 2(S-7) ---
[9] FAN D5
FAN EARTH,
*CN1601
---
[10] REAR PANEL D5
(S-8), 6(S-9),
2(S-10)
---
[11] AV CBA D6 3(S-11) ---
[12] JACK CBA D6 Desolder ---
[1] TOP COVER
[2] FRONT
ASSEMBLY
[9] FAN
[8] FAN COVER
[3] DVD MECHANISM & DVD MAIN CBA ASSEMBLY
[4] SW CBA
[5] PCB HOLDER
[6] POWER SUPPLY CBA
[7] POWER HOLDER
[10] REAR PANEL
[11] AV CBA
[12] JACK CBA [13] AFV CBA
[13] AFV CBA D6 Desolder ---
↓
(1)
↓
(2)
↓
(3)
↓
(4)
↓
(5)
ID/
Loc.
No.
Part
Removal
Fig.
No.
Remove/*Unhook/
Unlock/Release/
Unplug/Desolder
Note
[1] TOP COVER
(S-1)
(S-1)
(S-1)
Fig. D1
