FUNAI DR-C3835 - WAVEFORMS; WF1: Pin 24 of CN1201; WF2: Pin 22 of CN1201; WF3: Pin 30 of IC1201

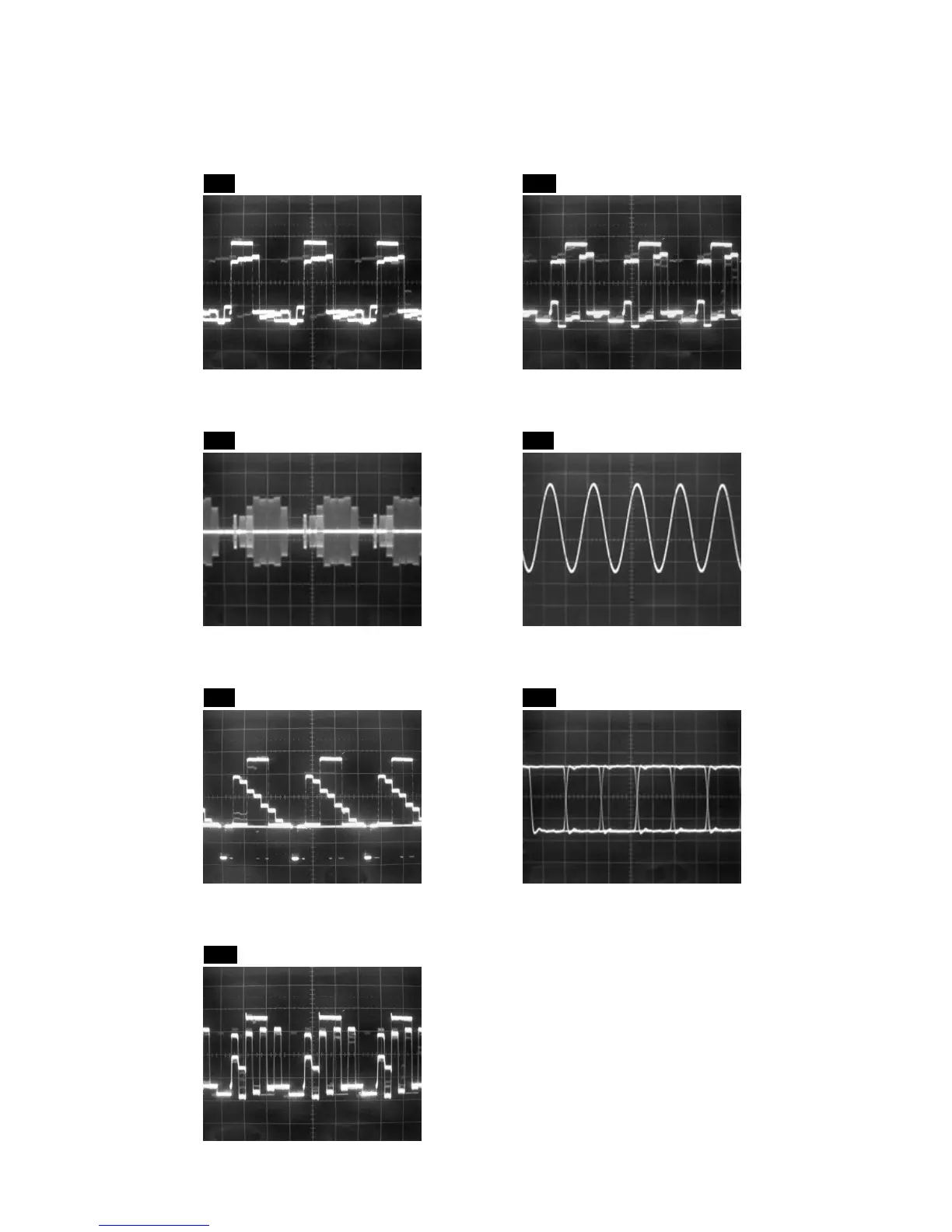

WAVEFORMS
1-11-1
R3PWF
WF6
AUDIO(L)-OUT
Pin 14 of CN1201
1V 0.5ms
WF1 Pin 24 of CN1201
WF3 Pin 30 of IC1201
WF4
VIDEO-Cb
Pin 28 of CN1201
0.2V 20 µ sec
WF5
VIDEO-Cr
Pin 26 of CN1201
0.2V 20 µ sec
SPDIF 1V 0.1
µ sec
WF7 Pin 28 of CN1151
WF2 Pin 22 of CN1201
VIDEO-Y 0.2V 20 µ sec
VIDEO-C 0.2V 20
µ sec
VIDEO-CVBS 0.5V 20
µ sec
NOTE:
Input: COLOR BAR SIGNAL
(WITH 1KHz AUDIO SIGNAL)
