FUNAI DR-C3835 - Page 26

1-10-4

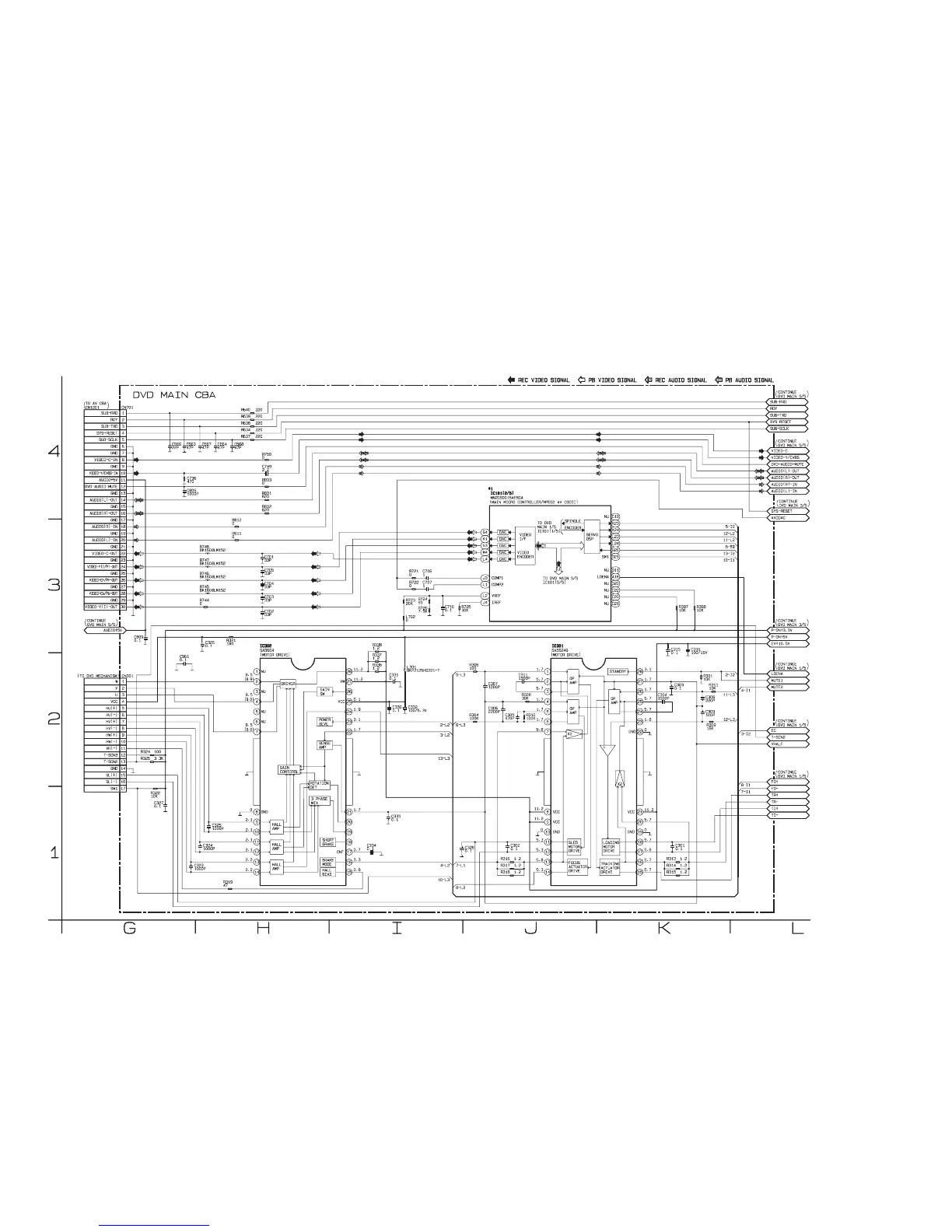

DVD Main 2/5 Schematic Diagram
E7B22SCD2
NOTE:
1. The order of pins shown in this diagram is different from that of actual IC101.
2. IC101 is divided into five and shown as IC101 (1/5) ~ IC101 (5/5) in this DVD Main Schematic Diagram Section.
