9-2
A8CF0WF
VIDEO-B 0.5V
WF7
Pin 5 of CN102A
WF8
Pin 4 of CN102A
WF9
Pin 3 of CN102A
AUDIO(L) 0.5V 0.5ms
WF10
Pin 3 of CN103A
20 µ s
VIDEO-G 0.5V
20
µ s
VIDEO-R 0.5V
20
µ s

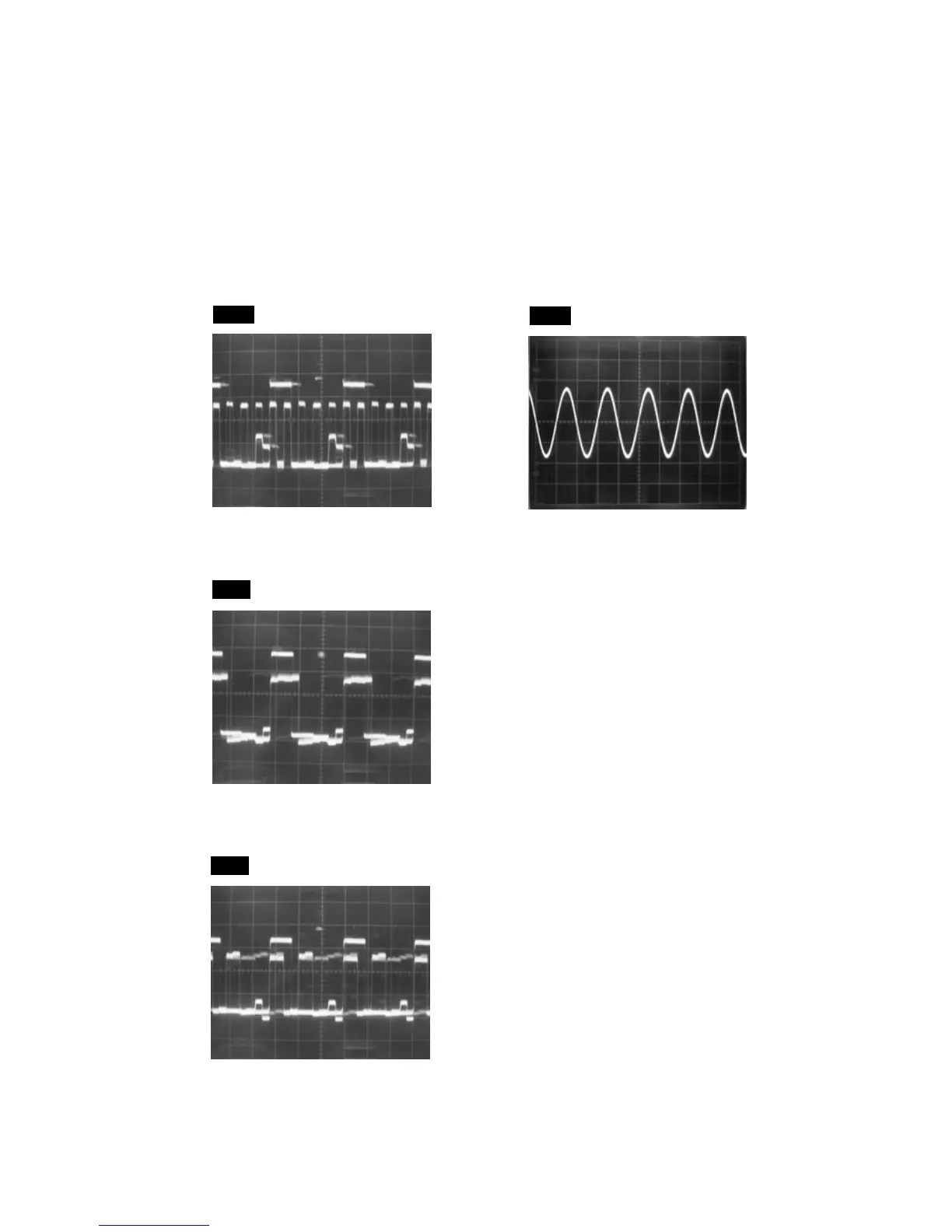

Input: PAL Color Bar Signal (with 1kHz Audio Signal)
WF7 ~ WF10 = Waveforms to be observed at
Waveform check points.
(Shown in Schematic Diagram.)
