FUNAI LT8-M40BB - Page 15

4-4 A03P3DC
[12] Tuner Shield
[14] Jack Holder
[17] PCB Holder
[13] Power Supply CBA
[16] Digital Main CBA Unit
(H-1)
(S-18)
(S-18)
(S-20)
(S-20)
(S-20)
(S-17)
(S-18)
(S-18)
(S-19)
(S-15)
(S-15)
[15] Shield Box
(S-16)
(S-16)
(S-16)

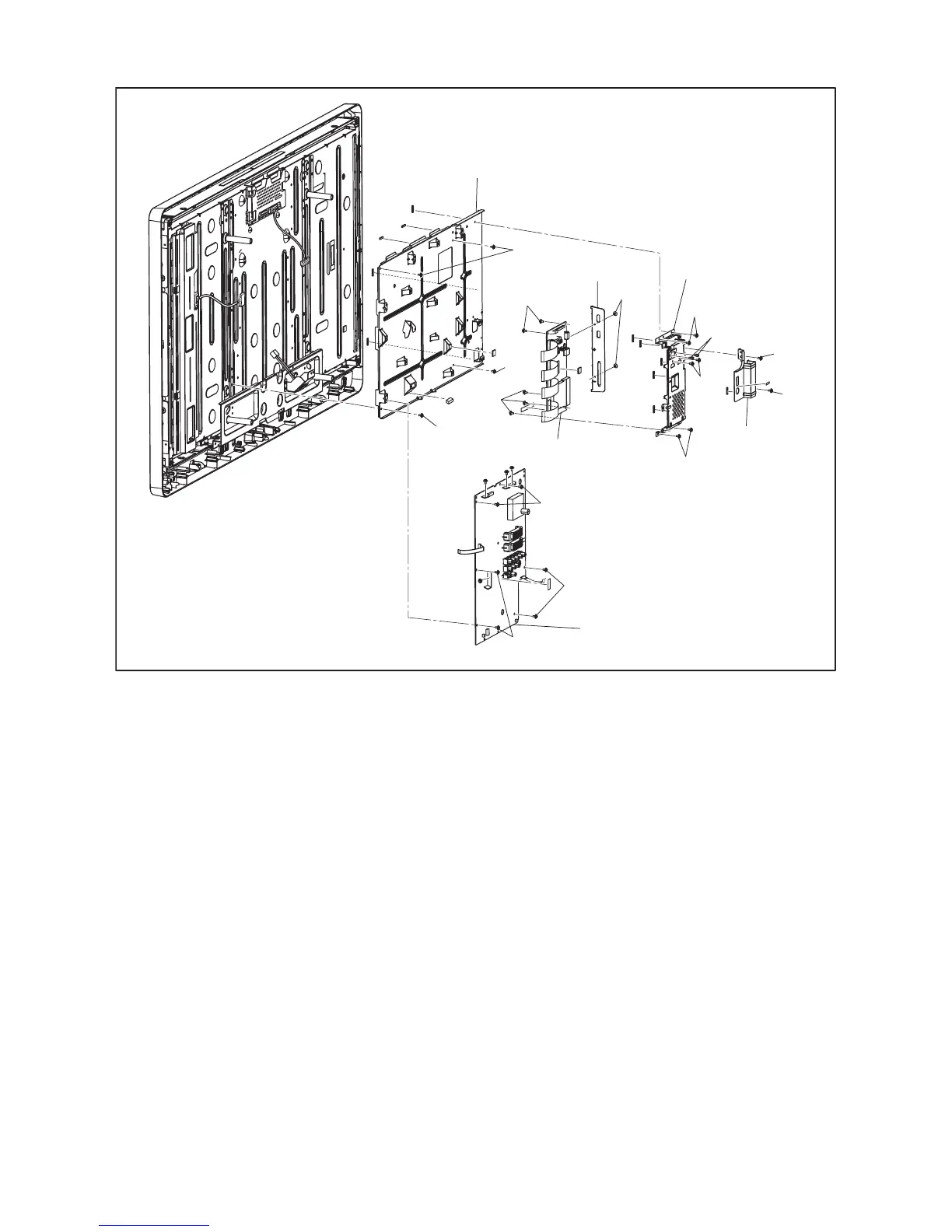

Fig. D4
