FUNAI LT8-M40BB - Waveforms

11-1
LC8PWF

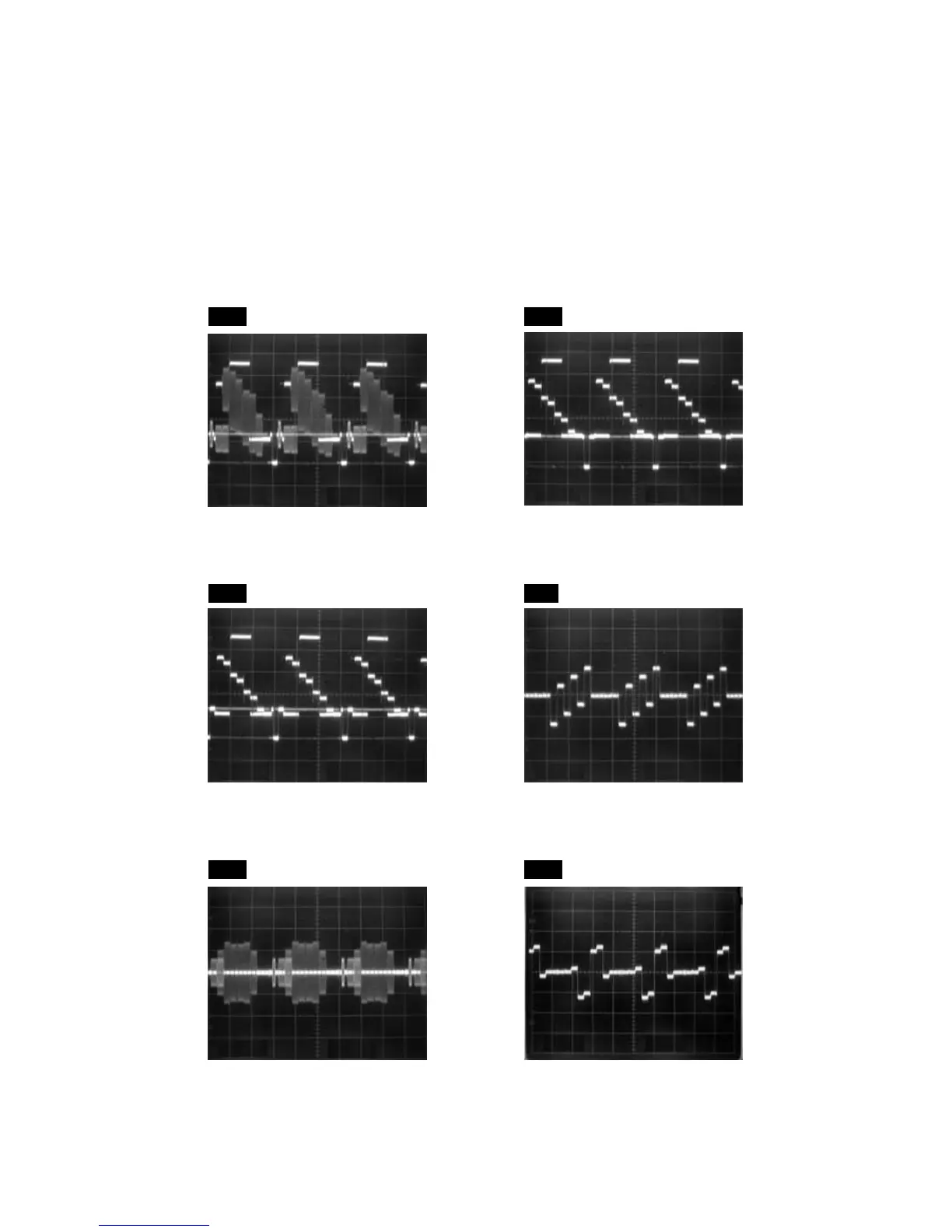

WAVEFORMS
Input: PAL Color Bar Signal (with 1kHz Audio Signal)
WF1 ~ WF6 = Waveforms to be observed at
Waveform check points.
(Shown in Schematic Diagram.)
S-VIDEO-Y 0.2V
20
µ s
S-VIDEO-C 0.2V
20
µ s
VIDEO-Y 0.2V 20 µ s
20
µ s
VIDEO-Pr 0.2V 20 µ s
VIDEO-Pb 0.2V 20 µ s
Pin 6 of CN404
WF5
VIDEO 0.2V 20 µ s
WF1
Pin 2 of CN404
WF4
Pin 8 of CN404
WF2
Pin 27 of CN401
WF6
Pin 4 of CN404
WF3
Pin 29 of CN401
