FUNAI LT8-M40BB - Page 53

11-2
LC8PWF
VIDEO-B 0.5V
WF8
Pin 29 of CN404
WF9
Pin 28 of CN404
WF10
Pin 26 of CN404
AUDIO(L) 0.5V 0.5ms
WF7
Pin 22 of CN401
20 µ s
VIDEO-G 0.5V
20
µ s
VIDEO-R 0.5V
20
µ s

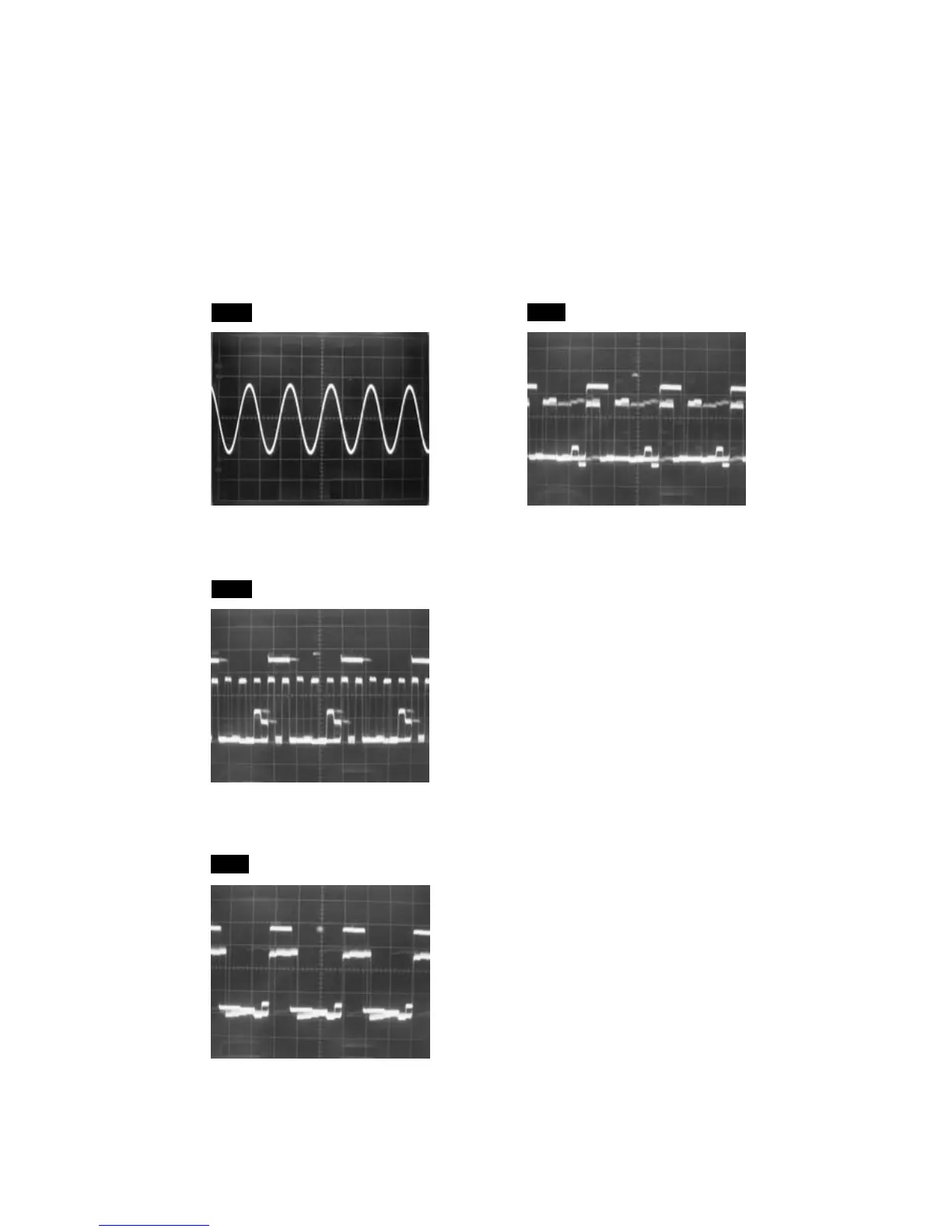

Input: PAL Color Bar Signal (with 1kHz Audio Signal)
WF7 ~ WF10 = Waveforms to be observed at
Waveform check points.
(Shown in Schematic Diagram.)
