FUNAI LT8-M40BB - Electrical Parts List; Exploded View

13-1 A03P3CEX

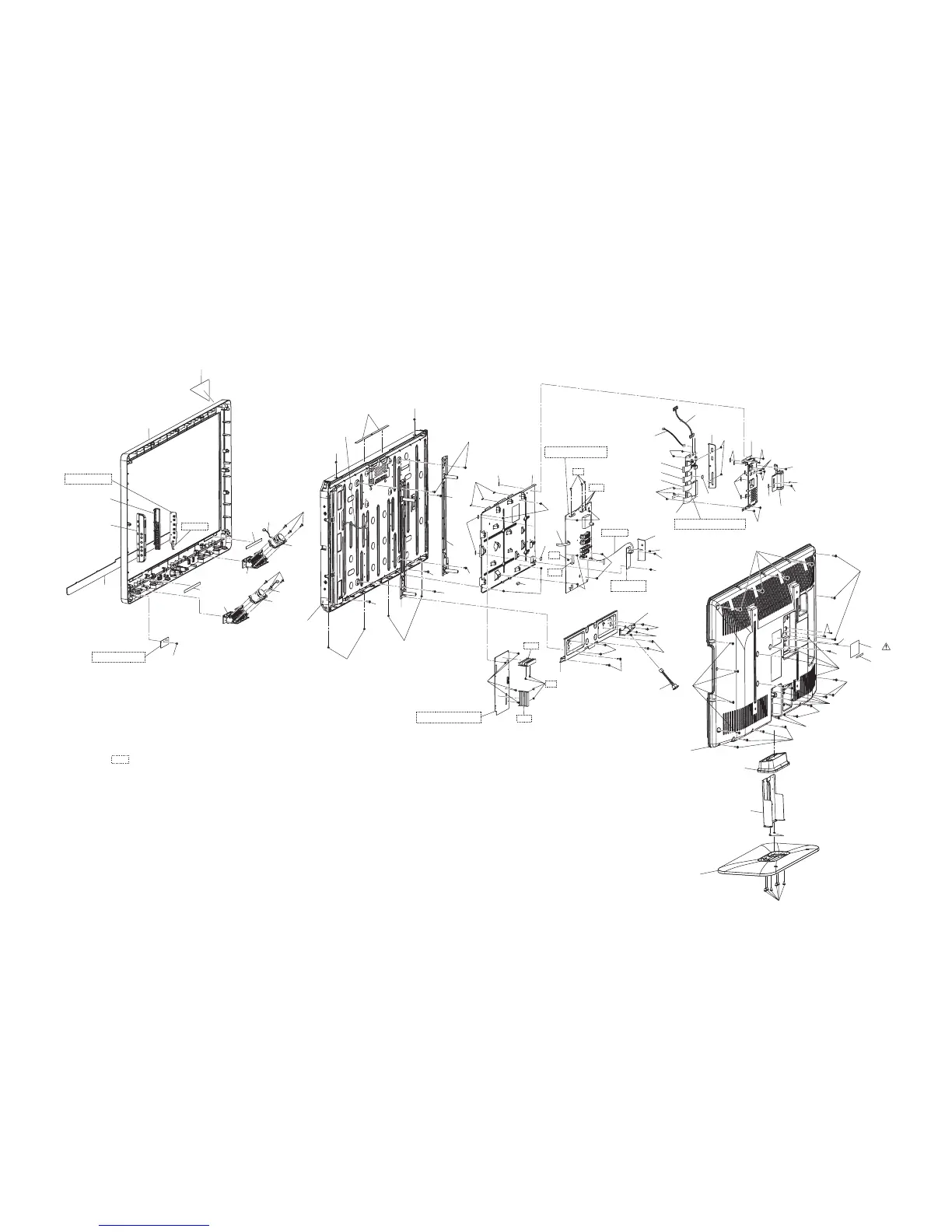

EXPLODED VIEWS
Cabinet
A1
A4
A12
B14
Stand Cover Assembly
A2
B8
A8
L4
L1
L1
L17
L18
L2
L1
L10
L1
L7
L1
X5
L2
L1
B15
L15
B7
Digital Main CBA Unit
Inverter Power CBA
Function CBA
Jack CBA
Power Supply CBA
A9
L6
L6
L6
B18
L6
L6
L8
L6
B2
L6
L6
L9
L4
L6
B1
L13
A11
L1
L3
B11
B9
S6
L6
L1
L1
B17
B17
B17
B19
LCD-1
X803
B5
L6
L6
L6
L6
L6
L2
X3301
A3
L16
CL404
CL402
CL401
CL601
CL3903
CL452
CL1852
CL453
CL403
B3
L13
A6
B4
B15
CL802
SP802
SP801
B6
B6
A10
L1
L1
L15
L1
L15
L16
L16
B15
L24
L24
L16
B17
B20
B17
L3
L3
B12
B10
IR Sensor CBA
See Electrical Parts List
for parts with this mark.
CL801
CL103A
CL201A
