FUNAI LT8-M40BB - Page 17

4-6 A03P3DC

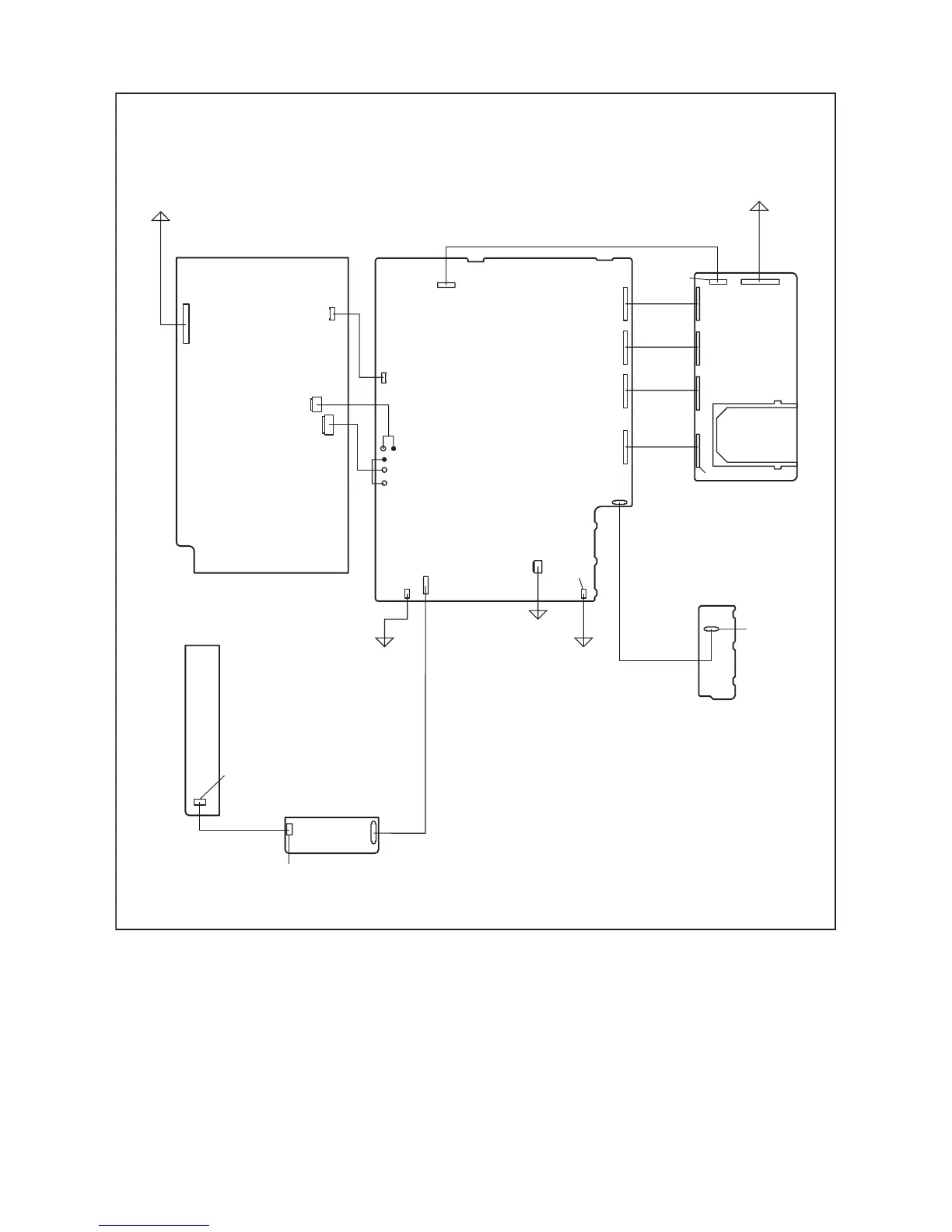

3. TV Cable Wiring Diagram
To LCD
Module
Assembly
To Speaker
To AC Inlet
To Speaker
To LCD Module
Assembly
CN453
CN452
CN610
CN600
CN101
CN801
CN601
CL202B
CN802
CL201A
CN401
CN403
CN404
CN402
CN3903
CN3701
CN3711
CN3702
CN3703
CN3704
CL102B
CL103A
CL103B
CN1852
CN1851
CN1801
CN1810
Power Supply CBA
Jack CBA
Digital Main
CBA Unit
Function
CBA
IR Sensor CBA
Inverter Power CBA
Fig. D6
