Umlenkung. This tool enables the WI-Client to connect to serial devices over LAN/WLAN. After
installation of the software enter the WI-Client IP address and port number.
Please read and following the license terms of the tool.
Comment to the multicast settings
In the Multicast-Mode serial busmembers who are communicating with RS485 interfaces can be connected
via the (W)LAN. Depending which task the serial device takes it is possible to configure different modes:
1. Slave
2. Master
3. Multimaster
As a slave the WI-Client receives data on the configured multicast address and sends this data to the serial
interface. Data that is received from the serial line is sent to the given unicast IP address.
As a master the WI-Client receives data from the unicast IP address and transmits data to the multicast IP
address.
In multimaster mode all transfers are done via the multicast IP address.
sample application:
W
i
-
C
l
i
e
n
t
W
i
-
C
l
i
e
n
t
PC
RS232/
RS485
RS232 / RS485
Device
RS232/
RS485
SLAVE
1
MASTER
W
i
-
C
l
i
e
n
t
RS232 / RS485
Device
RS232/
RS485
SLAVE
2
Multicast 224.0.0.42 Port 8889
Unicast 192.168.170.100 Port 8888
Unicast 192.168.170.100
Port 8888
IP: 192.168.170.100
Local Port: 8888
RemotePort: 8889
Multicast: 224.0.0.42
IP: 192.168.170.101
Local Port: 8889
RemotePort: 8888
Multicast: 224.0.0.42
IP: 192.168.170.102
Local Port: 8889
RemotePort: 8888
Multicast: 224.0.0.42

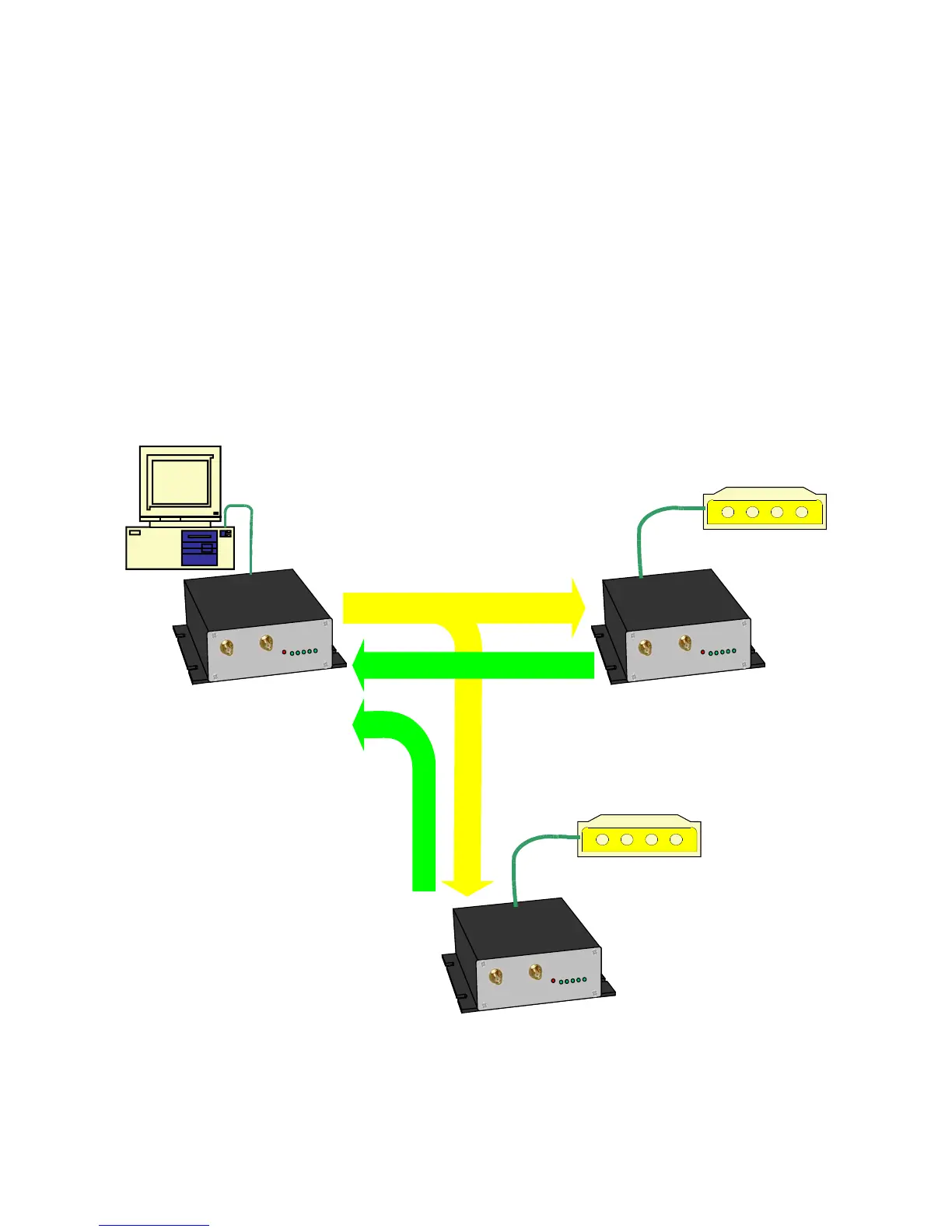

Illustration 13: Multicast-mode
WI-Client Manual Version 2.16 V3 17
