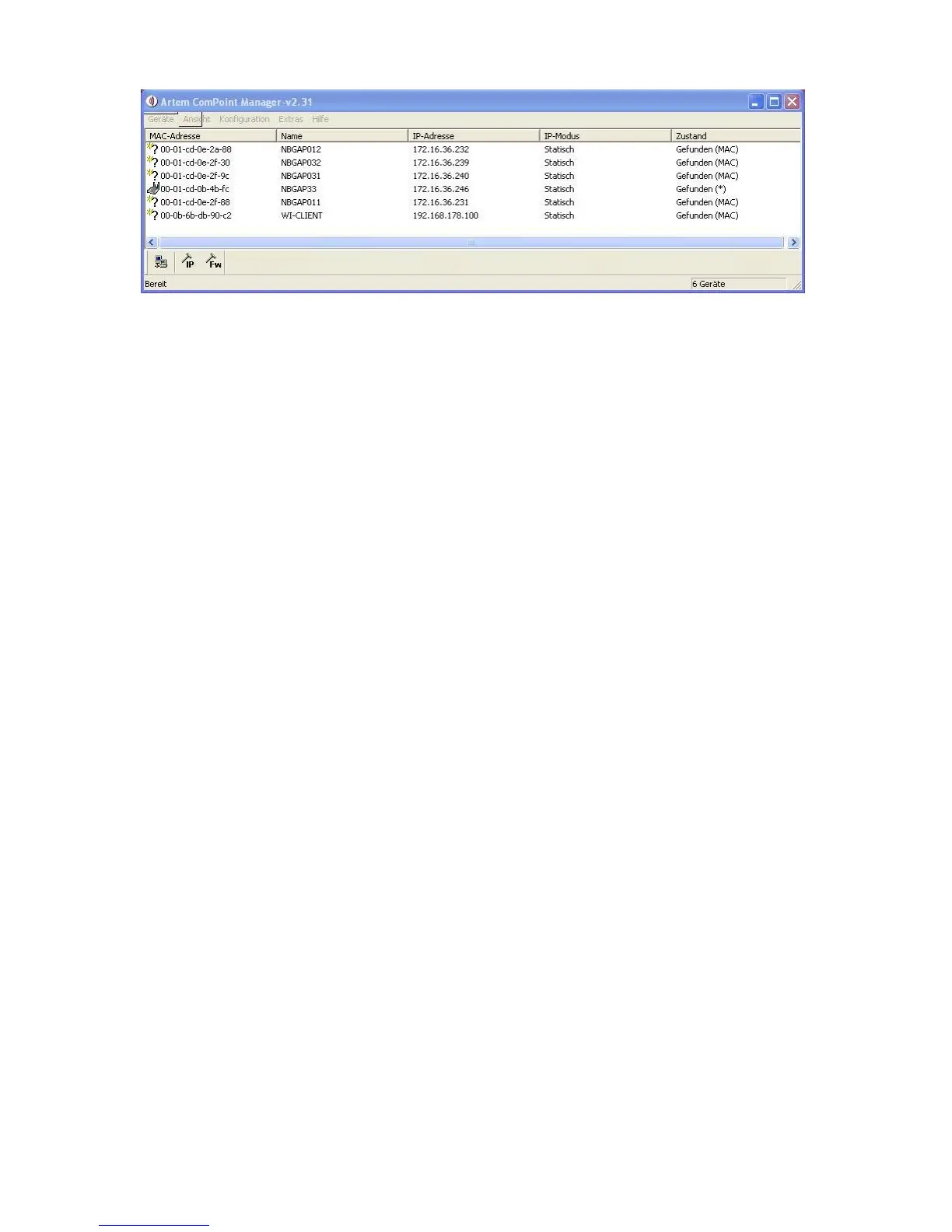

Illustration 4 screenshot of the ComPoint Manager
All located WI-Client-Devices are shown in list. A click to a device opens a sub window to change the unit
name and the IP address.
Reset to factory default
The factory default settings can be restored by pressing the reset button located on the front panel for a
longer period. After about 5 seconds the LEDs “SER1“ and “SER2“ starts blinking red and green alternately.
By keeping the button depressed the factory default values are restored. After finishing all LEDs except the
“ON” LED are turned off. Now the reset button can be released.
main factory default values:
SSID = “WI-Client_WLAN“
WEP = OFF
WPA = OFF
MODE= 802.11b/g
IP = 192.168.0.252
Netmask = 255.255.255.0
SER1+2 : off
802.1x user: „admin“
802.1x password: „password“
WI-Client Manual Version 2.16 V3 7
