BEARING / Axle Replacement
step 3 :
step 4 :

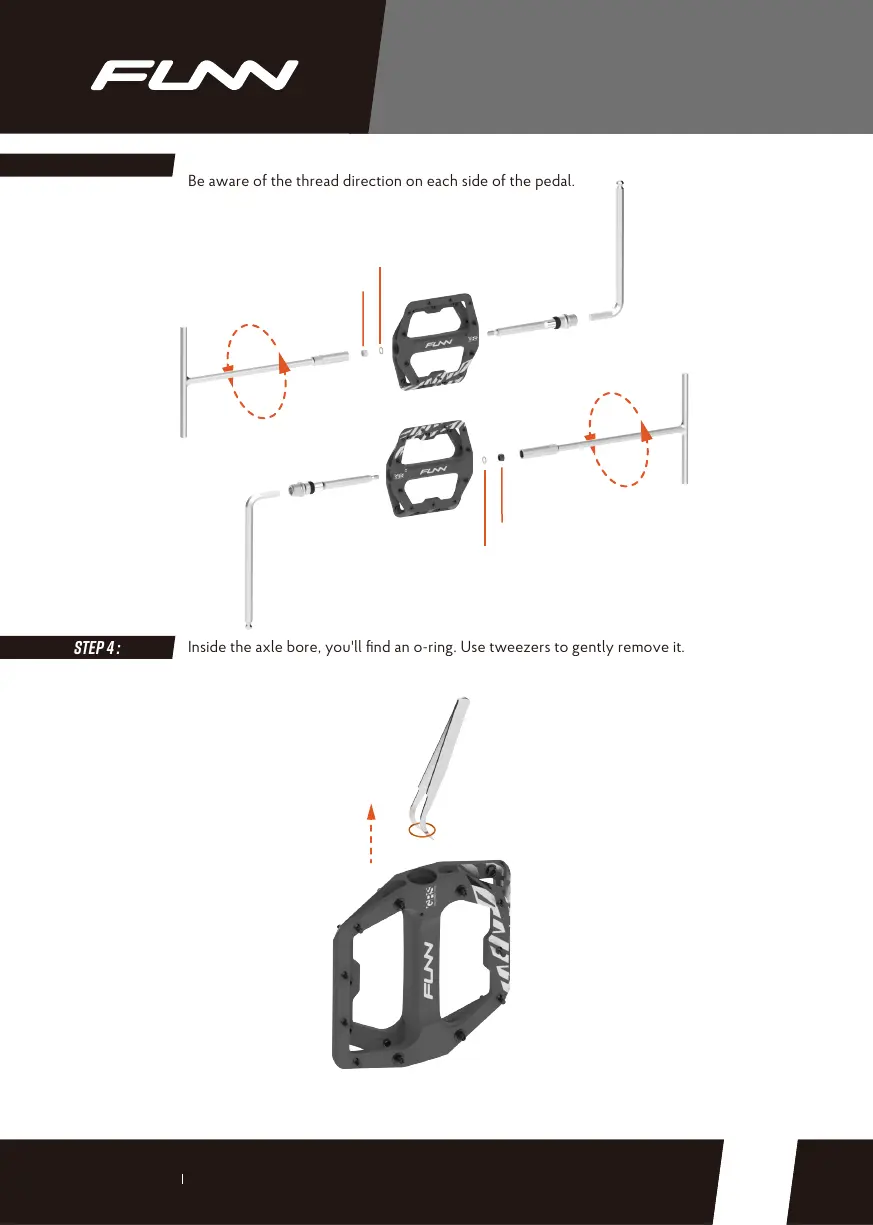

Inside the axle bore, you'll find an o-ring. Use tweezers to gently remove it.
Secure the axle with an 8mm hex key, then use an 8mm socket wrench to loosen the axle nut.
Be aware of the thread direction on each side of the pedal.
8mm hex key
Spacer
Spacer
Axle nut
RIGHT
LEFT
Axle nut
