BEARING / Axle Replacement
step 5 :
step 6 :

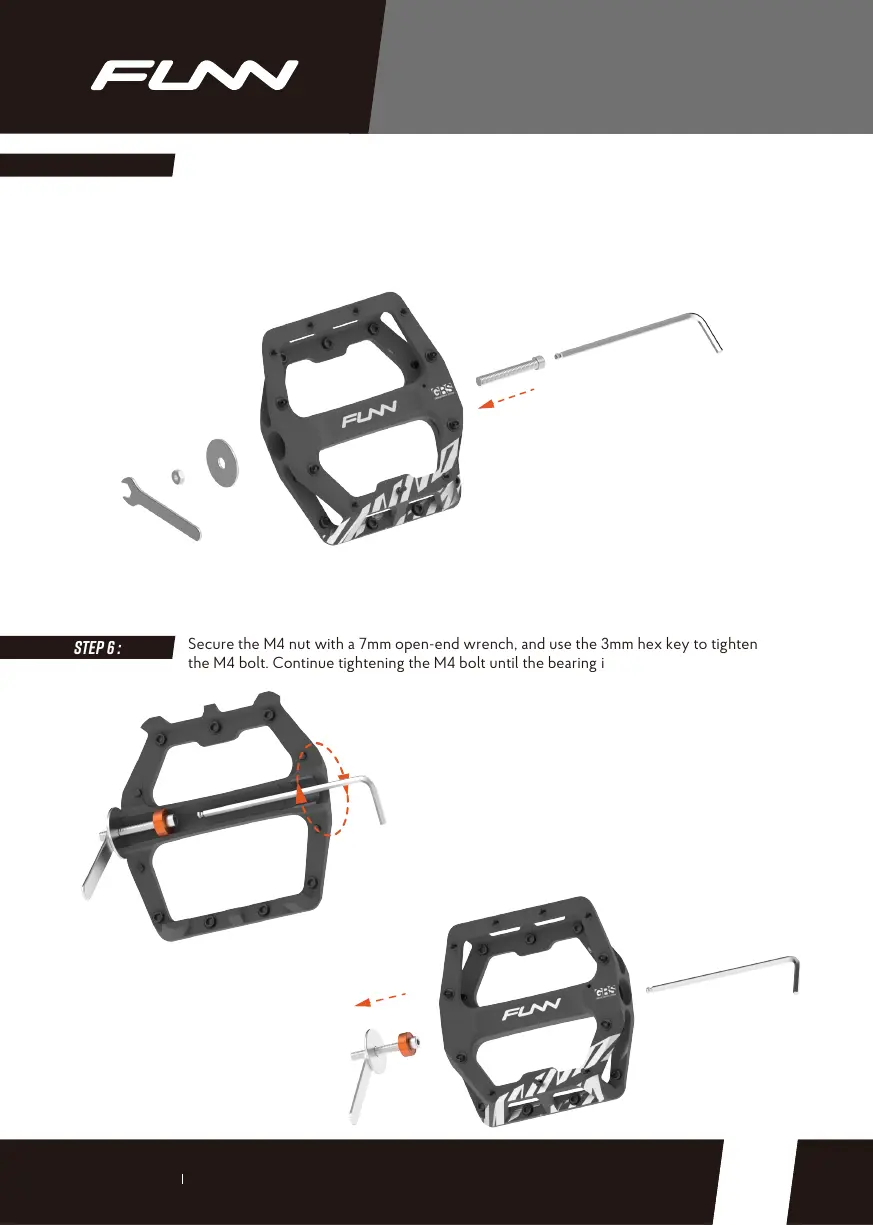

To extract the bearing from inside the pedal, start by inserting an M4 bolt into the pedal body
with a 3mm hex key. Then, fit a washer and M4 nut onto the M4 bolt .
Secure the M4 nut with a 7mm open-end wrench, and use the 3mm hex key to tighten
the M4 bolt. Continue tightening the M4 bolt until the bearing is extracted.
3mm hex key
3mm hex key
3mm hex key
