Right
Left
3
Use 8mm hex key to hold the axle in place;
then unscrew the hex nut by using the
8mm socket wrench. Please note the
thread direction on each side of the pedal.

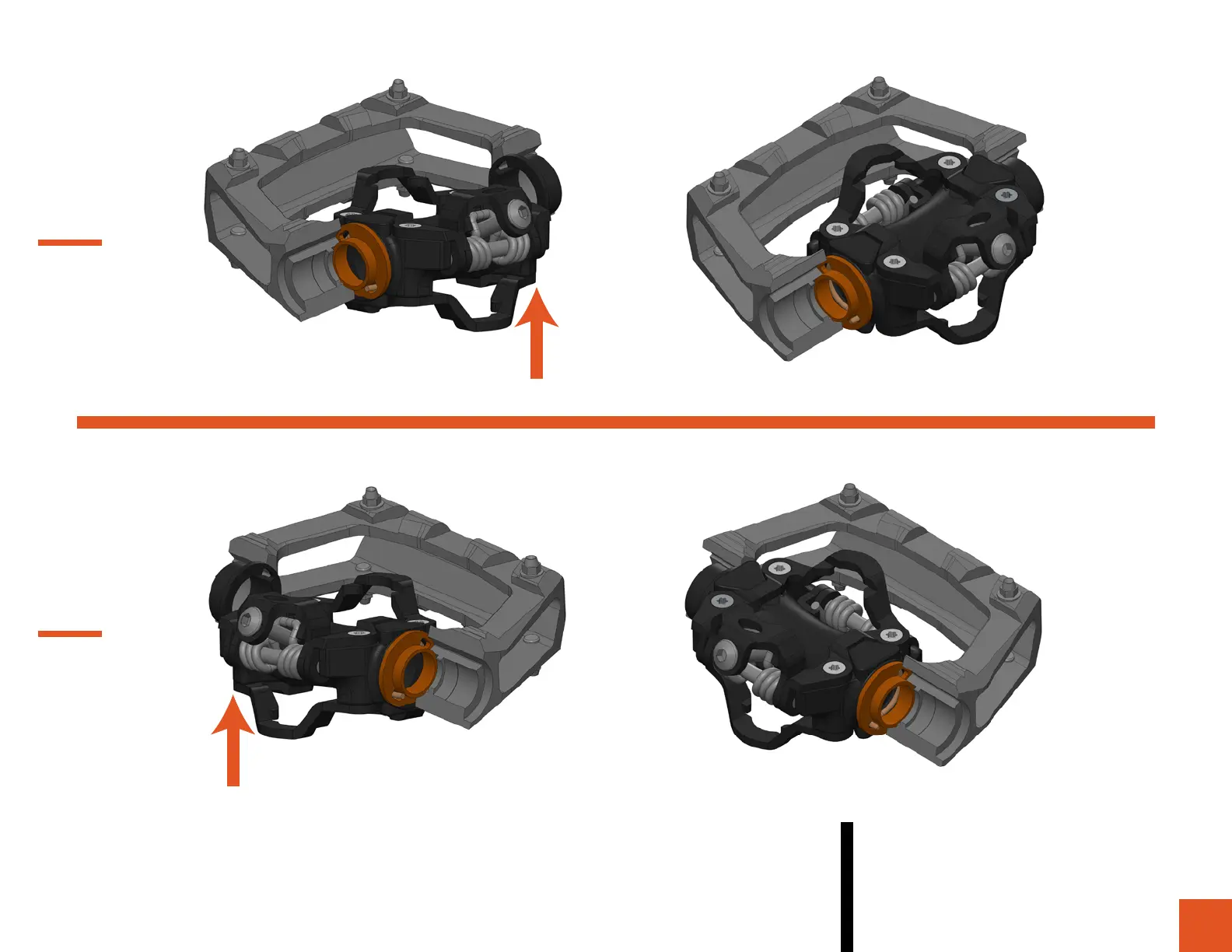

Install the pedal body by first inserting the
pin on the side spring into the slot in
washer A. Once the pin is in place, push
the pedal body into the cage.
