Bushing
Unscrew the bushing cap with the special
tool included in the axle kit or Shimano
TL-PD40 tool.

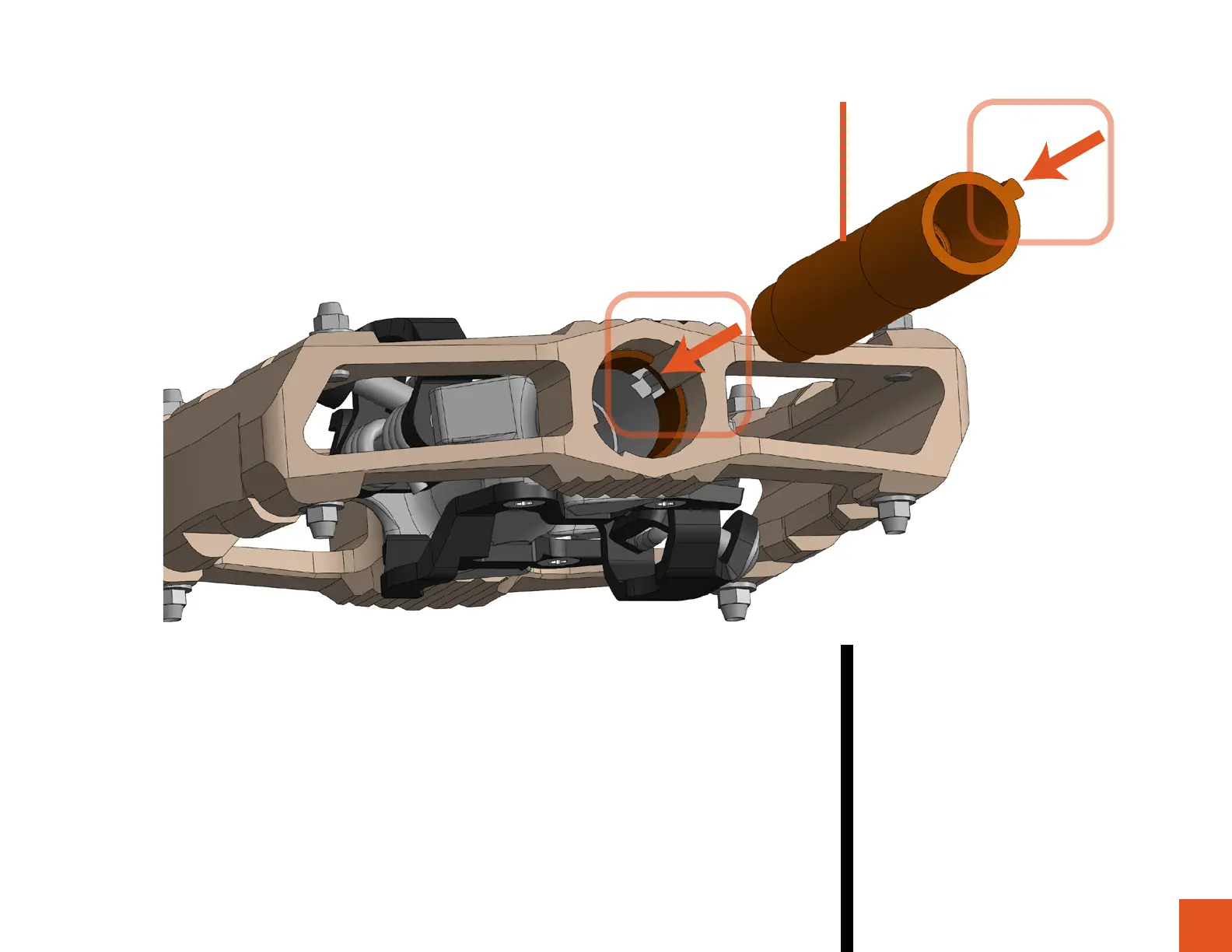

1. Once the pedal body is inside the cage,
you will notice a slot that exists in both
the cage and the body. You will also see
a protruding section on the side of the
plastic bushing.
2. Align the slot by holding the body and
cage in place, and insert the bushing, so
that the protruding section slides into the
slot of both the cage and the body.
3. Make absolutely sure that the protruding
section bottoms out in the pedal cage
slot.
