Furrion FEFD22S0D - Rear Panel Connectivity

9
Function Overview
* The conguration of the connection ports may
vary from model to model.

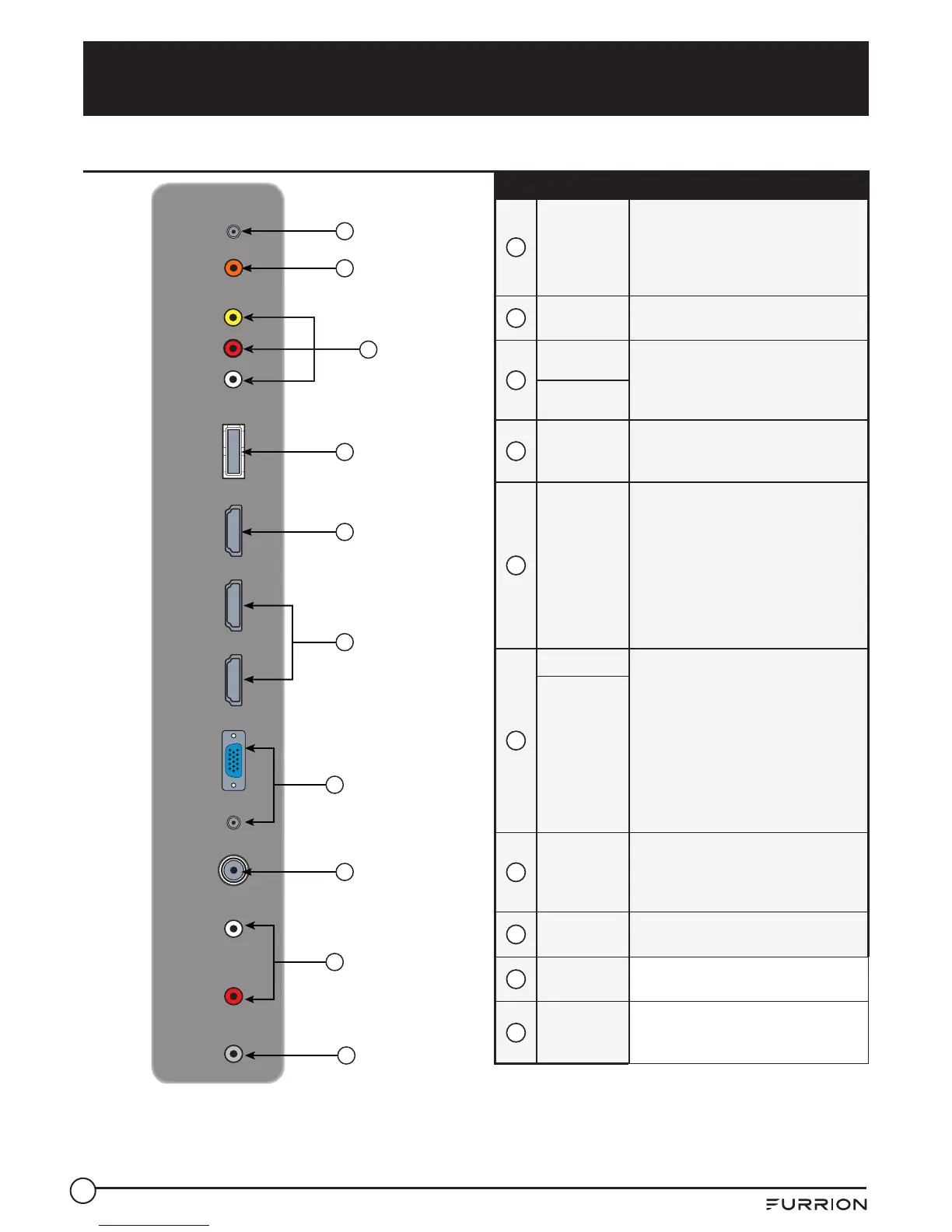

Rear Panel
1
EARPHONE
OUT
Connects to 3-conductor (TRS)
phone connector of earphone,
compatibility of earphone with
4-conductor (TRRS) phone
connector is not guaranteed
2
COAXIAL
Connects to the COAXIAL AUDIO IN
port of an audio device.
3
VIDEO IN
Connects to the COMPOSITE
VIDEO/ AUDIO OUT ports of a
DVD Player, Cable Box or other
compatible device
AUDIO IN
4
USB IN
USB Port, view pictures/movies/text
and listen to MP3s via a compatible
USB stick
5
HDMI 2
ARC
Connects to the HDMI OUT port of
a DVD Player, Games Console, Cable
Box or other HDMI device.
ARC Audio Return Channel
When connected with a HDMI 1.4
cable to an ARC compatible audio
system, the TV links with the device
to give extra audio functionality
Please see page13
6
HDMI 1 Connects to the HDMI OUT port of a
DVD Player, Games Console, Cable
Box or other HDMI device.
CEC Consumer Electronics Control
When connected to the CEC
compatible Furrion Entertainment
Systems or other CEC Compatible
devices, the TV links with the system
to give extra functionality. Please see
page13.
HDMI 3
7
VGA IN
+PC AUDIO
IN
Connects to the VGA OUT port of a
PC to use the TV as a monitor.
Connects to the AUDIO OUT port
of a PC.
8
RF IN
Connects to the ANTENNA, CABLE,
or CABLE BOX
9
AUDIO OUT
L/R
Connects to the AUDIO IN ports of
an audio device
10
YP
b
P
r
Connect to the COMPONENT VIDEO
OUT ports of a DVD Player, Cable
Box or other compatible device
1
2
3
4
6
5
7
8
EARPHONE
OUT
COAXIAL
VIDEO
IN
AUDIO
IN
USB IN
HDMI 2
IN (ARC)
HDMI 1
IN
HDMI 3
IN
VGA IN
PC AUDIO
IN
RF IN
AUDIO OUT
L
AUDIO OUT
R
YP
b
P
r
9
10
