12. Pass the cable from the rotation detector through two cable clamps.
Rotate detector
Cable clamps
Cable tie
(Another should
be inside.)

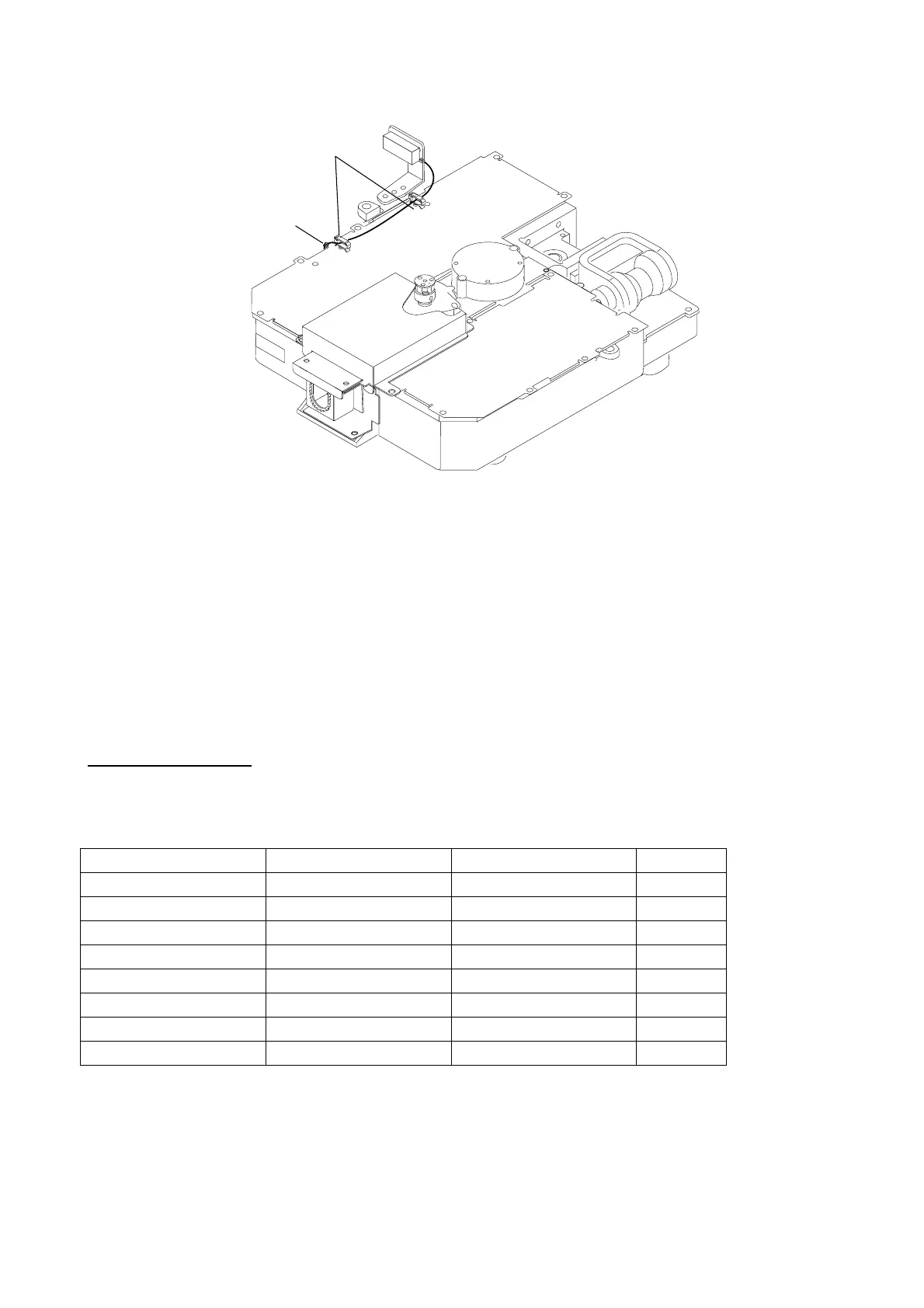

Antenna unit, clamping the rotation detector cable
13. Follow the instructions on the label inside the mounting base to secure the snap assy.
14. Confirm that the rubber gasket is properly positioned and that the triangle mark on the
radome cover is aligned with the triangle mark on the mounting base, then tighten the
fixing screws for the cover. Refer to the figure of sectional view on the previous page for
positioning of rubber gasket.
1.5.2 Mounting the optional mounting bracket
A mounting bracket for fastening the antenna unit to a mast on a sailboat is optionally
available.
Mounting bracket 2
Type: OP03-93
Code No.: 008-445-080
Type Code No. Qty
Hex. bolt M4x12 000-804-725 4
Hex. bolt M8x20 000-805-707 8
Mounting plate 03-018-9001-0 100-206-740 1
Support plate (1) 03-018-9005-0 100-206-780 1
Support plate (2) 03-018-9006-0 100-206-790 1
Bracket (1) 03-028-9101-0 100-206-810 1
Bracket (2) 03-028-9102-0 100-206-820 1
Fixing plate 03-028-9103-0 100-206-830 2
Assemble the mounting bracket and fasten it to a mast. Fasten the antenna unit to the
bracket. For detail, see the figure shown on page 1-10.
