Furuno 1823C Installation Manual

2-3

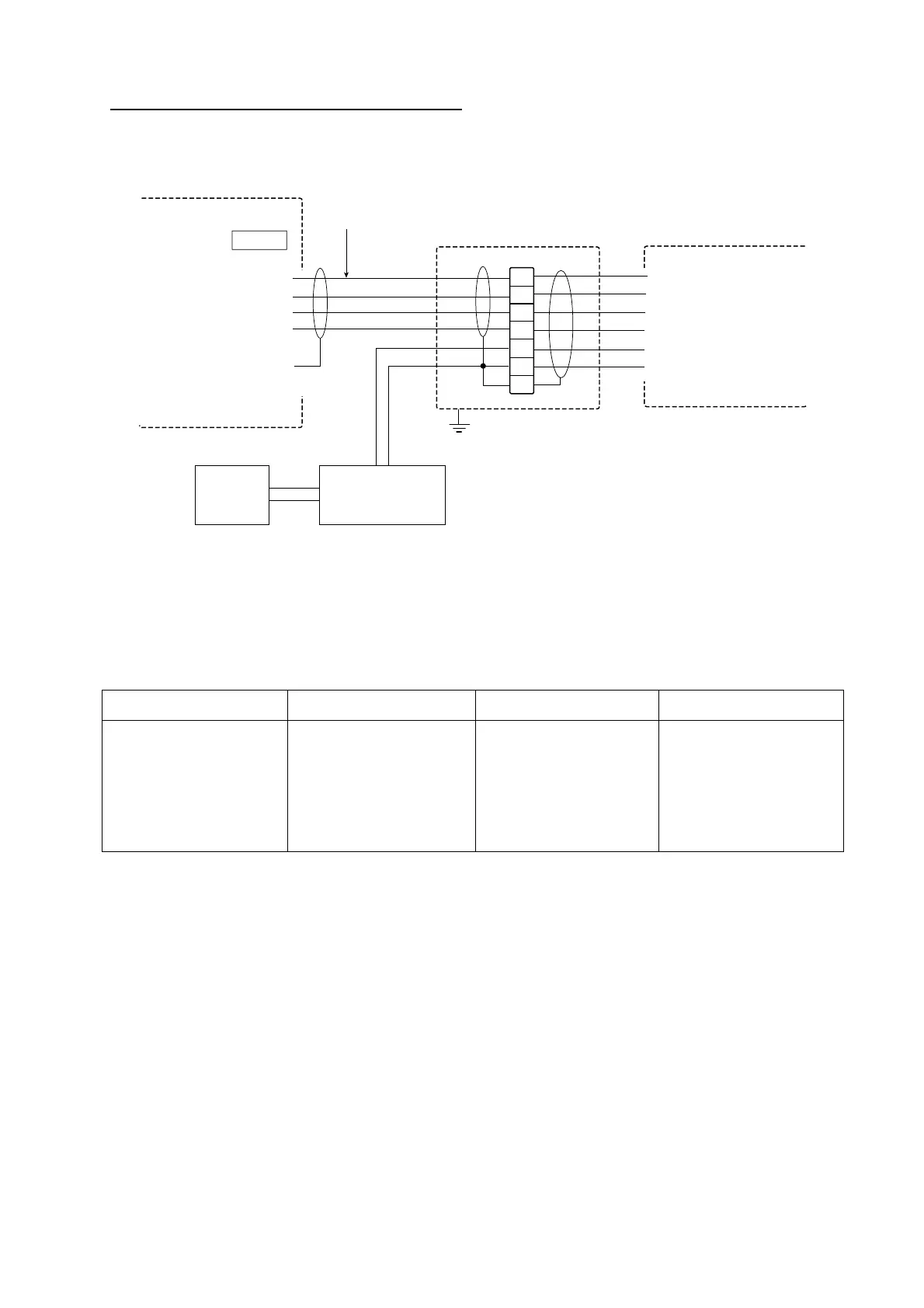

Connecting GP-310B/320B to DATA 2 port
When an equipment is connected to DATA 1 port, GPS receiver GP-310B/320B can be
connected to DATA 2 port as shown below.
You need a junction box and optional cable MJ-A6SPF0003-050 or MJ-A6SPF0009-100.
1
2
3
4
5
6
7
JUNCTION BOX
1
2
3
4
5
6
TD-A
TD-B
RD-A
RD-B
NC
SHIELD
DISPLAY UNIT
DATA 2
+ 12V
GND
WHT
BLU
YEL
GRN
RED
BLK
GP-310B/320B
BLK
WHT
GRN
YEL
MJ-A6SPF0003-050
MJ-A6SPF0009-100
Power supply
DC/DC CNV
Type: Insulation
Power
supply
RD-A
RD-B
TD-A
TD-B
Connecting GP-310B/320B to DATA 2 port
NETWORK port
Other NavNet equipment should be connected to this port with the optional MJ-A6SPF0014
cable. Available equipments are shown below.
Radar Plotter Network sounder Other
MODEL1722/1732/
1742/1762/1722C/
1732C/1742C/1762C/
1752C/1823C/1833/
1933/1943/1833C/
1933C/1943C/1953C
GD-1700/1700C/1900C
ETR-6/10N
ETR-30N
HUB (used when more
than two NavNet units
are connected.)
